Omron F3SJ-A series - Mounting a Protect Bar

75
F3SJ-A
User’s Manual
Chapter3 Dimensions
Wiring/Installation
E
 Mounting a Protect Bar

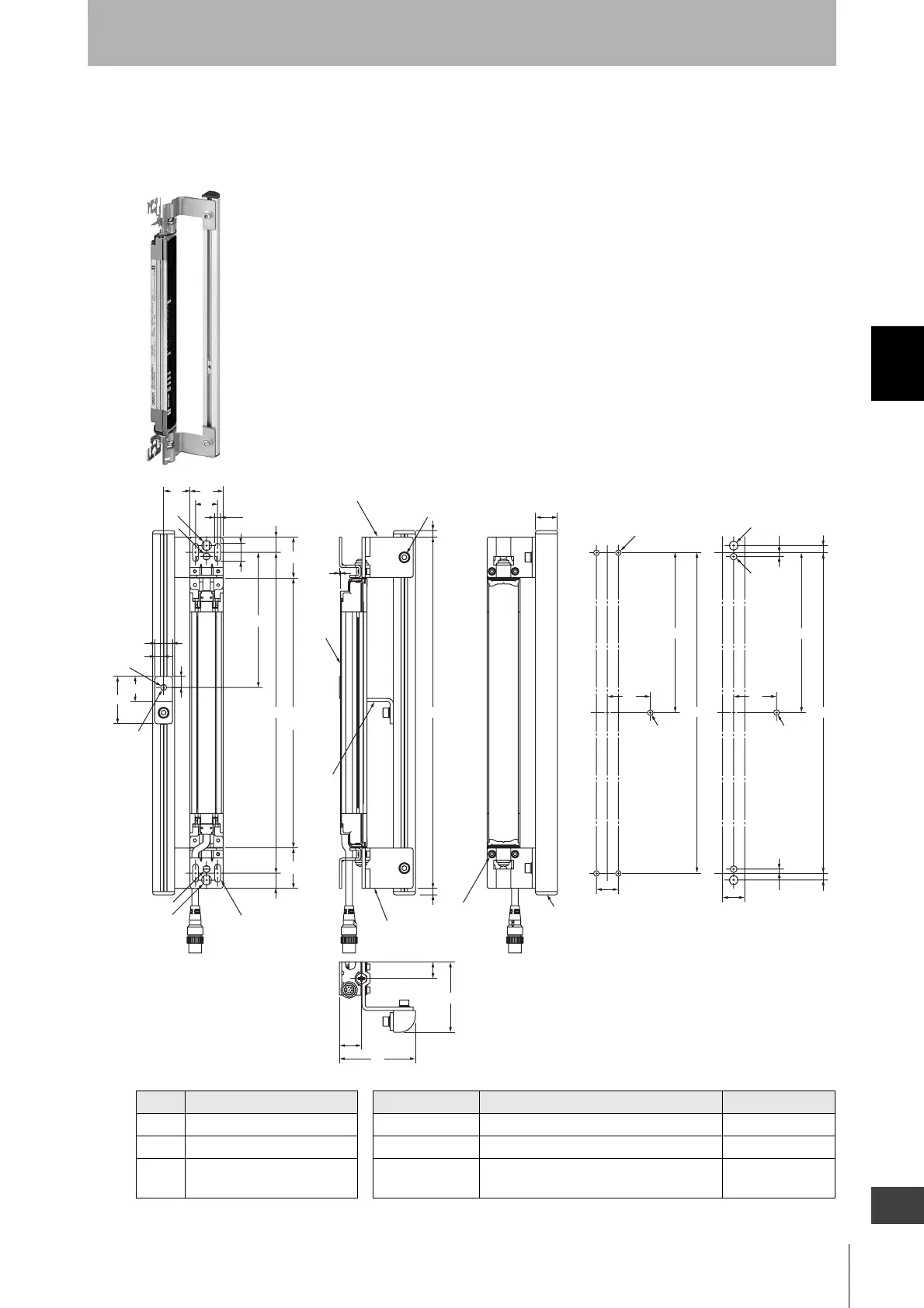

 External Dimensions of Protect Bar F39-PJ
Dimensions A to C Dimension D
Protective height Number of used protection brackets (3) D *1
A C+74 245 to 1000 0 -
B C+46.5 1001 to 2000 1 B/2
C 4-digit number of the model
name (protective height)
2009 to 2495 2 B/3
*1 D is for reference and must be a length that should not affect intermediate mounting bracket
16.5
5.5
(37)
1
(13.75)
(13.75)
AB
D
69
64
15
(6)
20
43
23
10
20
3024
dia.9
16
8
dia.6.5
(37)
B
M5
39
D
6.25
20
2-M8
2-M6
3.75
3.75
6.25
B
M5
39
D
20
4-M5
20
C(Protective
height)
dia.5.5
(6)
Hole size for mounting
Protection Bracket (2)
Protection
Bracket (3)
Protection
Bracket (1)
Mounting hole
Backside mounting
(Unit: mm)
Using M5 Using M6 and M8
3-M5
Hex. Bolt
with Washer and Hole
Sensor
4-Mounting holes
2-Mounting holes
2-Mounting holes
4-M3
Hex. Bolt
with Washer
and Hole
Protection Support
Material: Stainless steel and aluminum
