F3SJ-A
User’s Manual
Chapter2 Muting System
System Configuration and Functions
E
Wiring Diagrams

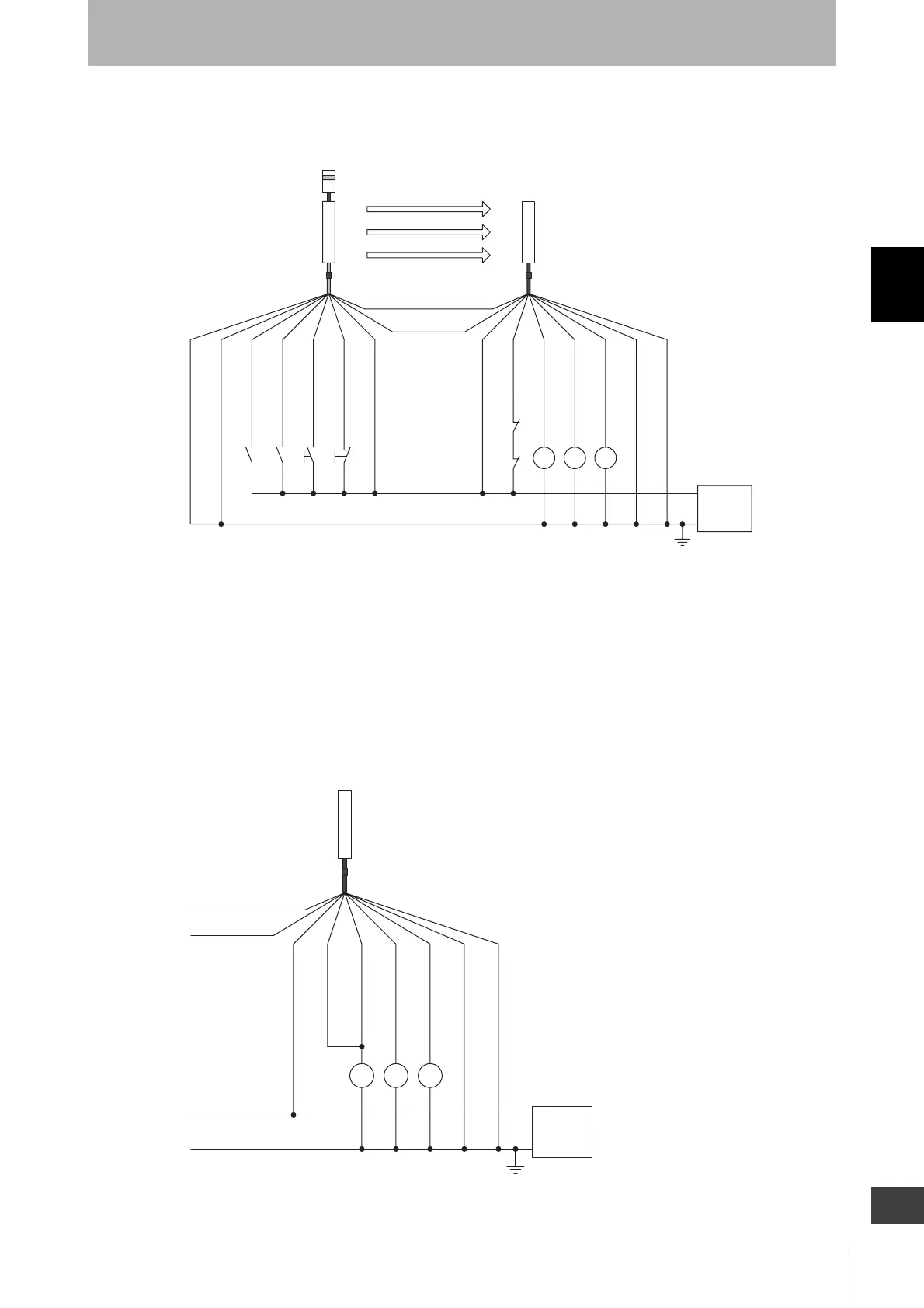

Wiring When Using Muting and External Device Monitoring Function
Wiring When External Device Monitoring Function Is Not Required
The external device monitoring function is disabled by connecting auxiliary output 1 and external
device monitoring input as shown below.
S1 : External test switch
(connect to 0V if a switch is not required)
S2 : Lockout reset switch(connect to 24V if a switch is not required)
A1 : Contact by muting sensor A1
B1 : Contact by muting sensor B1
K1,K2 : Relay or other device that controls hazardous parts of the machine
M1 : Muting lamp
Muting input 1 (White)
Muting input 2 (Red)
K3
:
Load or PLC, etc. (for monitoring)
*1 Use a switch for small loads (input specifications: 24V, 1.8mA)
*2 F3SJ operates even when K3 is not connected.
*3 Connect a muting lamp to external indicator output of an emitter or a receiver.
(Grey) Communication line (+)
(Pink) Communication line (-)
0V(Blue)
0V(Blue)
Power
supply
Shield
Shield
Test input(Green)
Reset input(Yellow)
24V(Brown)
24V(Brown)
External device monitoring input (Red)
Auxiliary output 1(Yellow)
Safety output 1(Green)
Safety output 2(White)
-
-
5
5
#$
/
- --
8&%
8
Receiver
Emitter
ޓ
*1
K3
+24 V D C
0V
K1
K2
Receiver
(Grey) Communication line (+)
(Pink) Communication line (-)
0V(Blue)
Power
supply
Shield
24V(Brown)
External device
monitoring input (Red)
Auxiliary output 1(Yellow)
Safety output 1(Green)
Safety output 2(White)
K1, K2
K3
: Relay or other device that controls
hazardous parts of the machine
: Load or PLC, etc. (for monitoring)
*1 F3SJ can operate even if K3 is not connected.
If K3 is not required, connect auxiliary output 1
to external device monitoring input only.
