Omron F3SJ-A series User Manual

3
F3SJ-A
User’s Manual
Chapter1 Basic Configuration and Names
Overview and Specifications
E

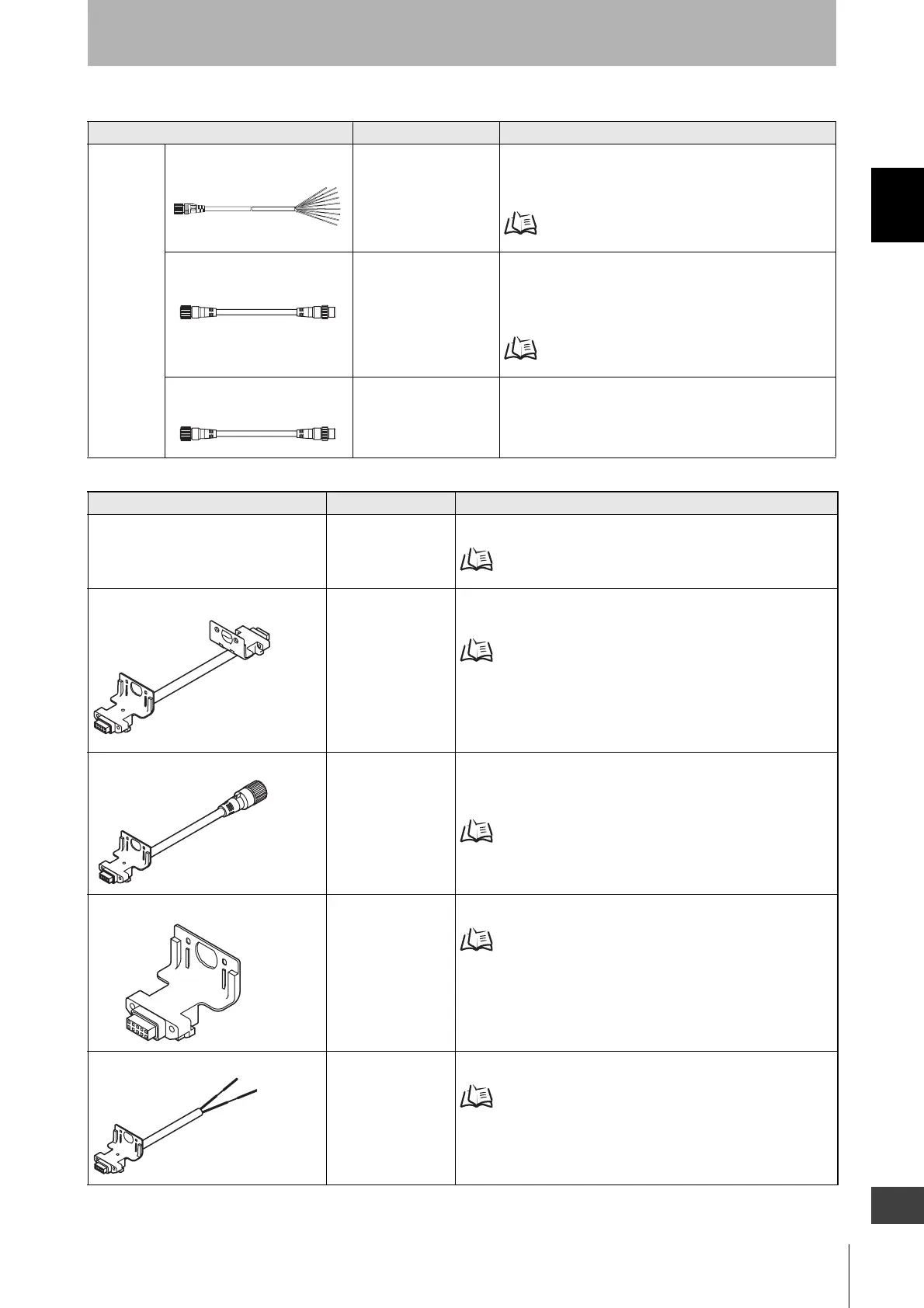

Components to be selected if necessary
Component Model name Description
Extension
cable
Cable with connector on one
end
F39-JCA This extension cable is used to connect the F3SJ to a
controller with discrete terminals (e.g. F3SX, G9SA, G9SB,
G9SX) or to a safety processing system (e.g. DeviceNet
safety).
p.118
Cable with connectors on both
ends
F39-JCB This extension cable is used when the length of the
connection cable is insufficient or for plug and play
connection to the F3SP-B1P controller. The length can be
selected.
p.118
Cable with connectors on both
ends
F39-JCC This connection cable is used for plug and play connection
to the G9SA-300-SC controller. The length can be selected.
Component Model name Description
Optional bracket - Use this bracket (sold separately) for dedicated applications.
p.61
Series connection cable for close contact F39-JJR06L
F39-JJR15L
Required for connecting multiple sets of F3SJ in a series. It is used
when you wish to perform series connection with minimum length.
Connection Procedure p.54
Series connection cable for extension F39-JJR3W Required for connecting multiple sets of F3SJ in a series. The F39-
JJR3W can be used for extension with cable with connectors on
both ends(F39-JCB).
Connection Procedure p.55
Key cap for muting F39-CN6 Required when using muting function. (Case color : Orange)
Muting System p.25
Indicator cable F39-JJ3N
F39-A01P-PAC
Required when attaching external indicator(s) to the F3SJ.
Attaching External Indicators p.56
