Omron FHV7 series User Manual

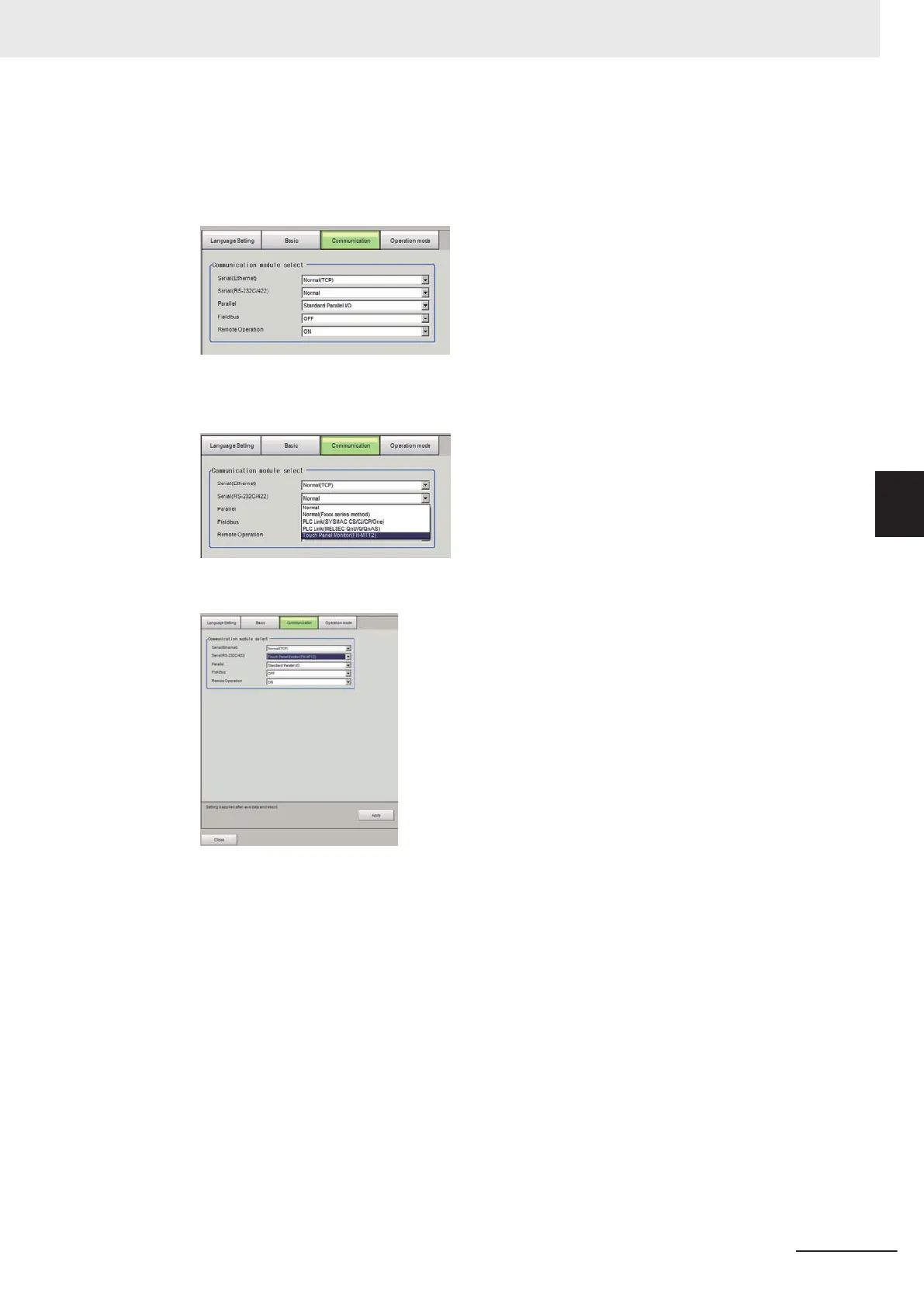

1 Connect the Touch Panel Monitor to the FH series Sensor Controller.
2 In the Main Window, click Tool - System Settings - Startup - Startup setting, then click
Communication.
3
On the Communication module select area, select Touch Panel Monitor (FH-MT12) from the
Serial (RS-232C/422).
4
Click the Apply button.
5 Click Close.
6 Click Data save in the tool bar on the Main Window and then click OK on the Data save dialog
box displayed.
7 Click System restart in the Function menu on the Main Window.
8 Click OK on the System restart dialog.
Restarts the FH series Sensor Controller.
9
Touch Panel Monitor can be used after restarting.
4 Setting the Controller
4 - 9
FH/FHV Series Vision System User’s Manual (Z365-E1)
4-3 Setting Communication [Startup Settings]
4
