Multi-line Random-trig-
ger mode
Non-stop Adjustment
mode
Double Speed Multiin-
put mode
*1
Standard mode
*2
• This mode can input
the trigger to each
lines.
• Input or Output of com-
munication can be limit-
ed depending on used
the number of lines.
• Processing time may
be longer than Stand-
ard mode if you in-
crease the number of
lines.
• This mode allows
changes to be made to
settings while running
measurement process-
ing.
• Some processing items
may not be applied to
use or may be restrict-
ed.
• Using commands from
the external device are
restricted.
• Unintended operation
may be occurred if you
change the Scene
while this function is
running.
• For this Operation
mode, need to use the
Multi-input function.
• This mode allows the
highest number of
measurements within a
single unit of measure-
ment time.
• In this function, some
processing unit items
are not applied or limit-
ed.
• Using the command
from external device is
limited.
• This mode allows for
the fastest measure-
ment time for a single
measurement.
• All functions can be
used without restriction.
*1. This mode name is changed from Ver. 5.50. This function name is Single-line High speed mode in old mod-
el.
*2. This mode name is changed from Ver. 5.50. This function name is High-speed Logging mode in old model.
Refer to Multi-input Function on page 4 - 15.
Refer to 1-1-2 Functional Comparison between the FH-series and FHV-series Controllers on page
1 - 3.

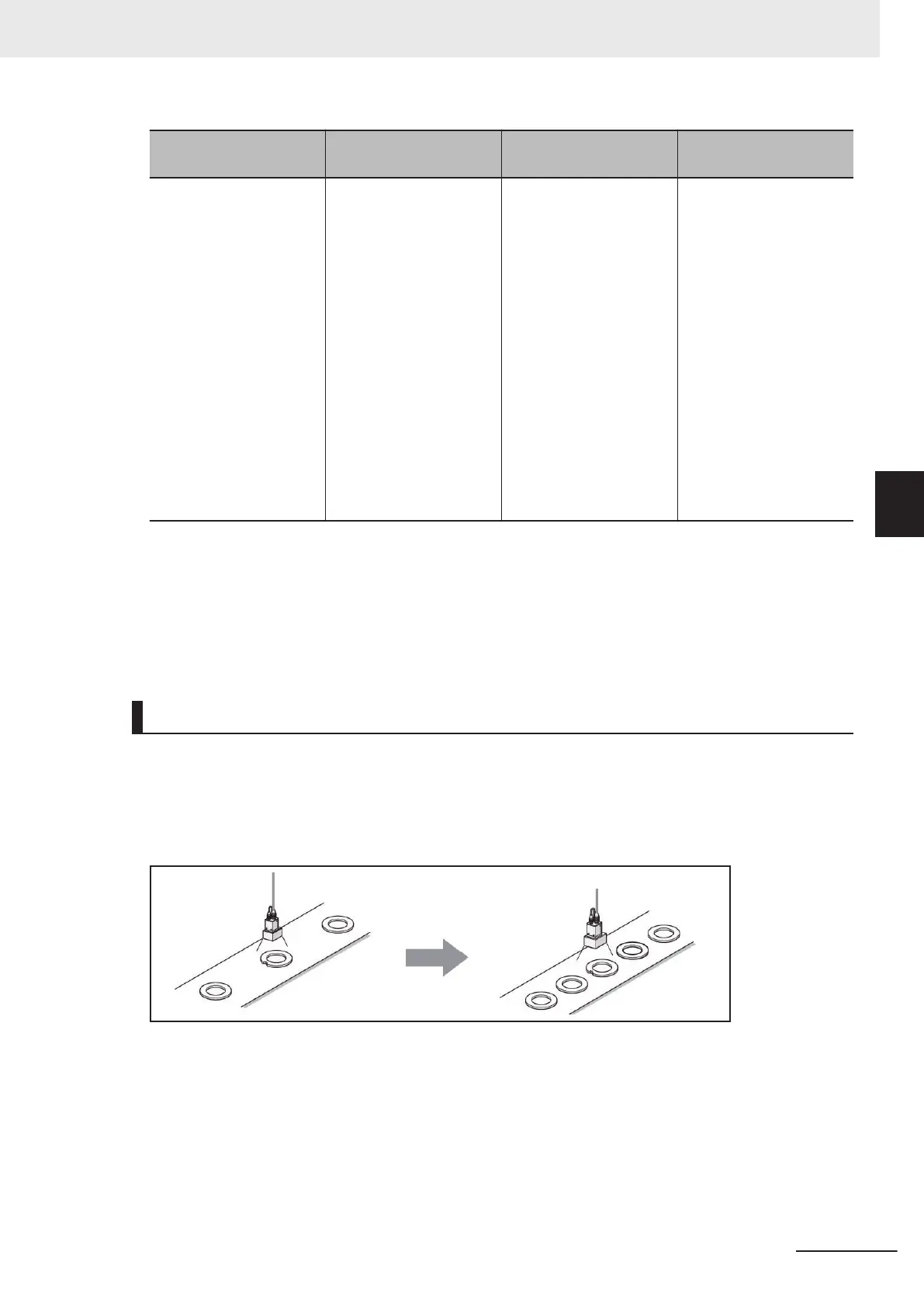

Double Speed Multi-input
You can execute the measurement process with a multi-core CPU to inspect more measurement tar-
gets in less time than conventional processing would allow.
This mode uses up to four CPU cores (or eight threads) on a CPU that take turns in the execution of a
single inspection flow every time the STEP signal is input.
Refer to Multi-input Function on page 4 - 15.
