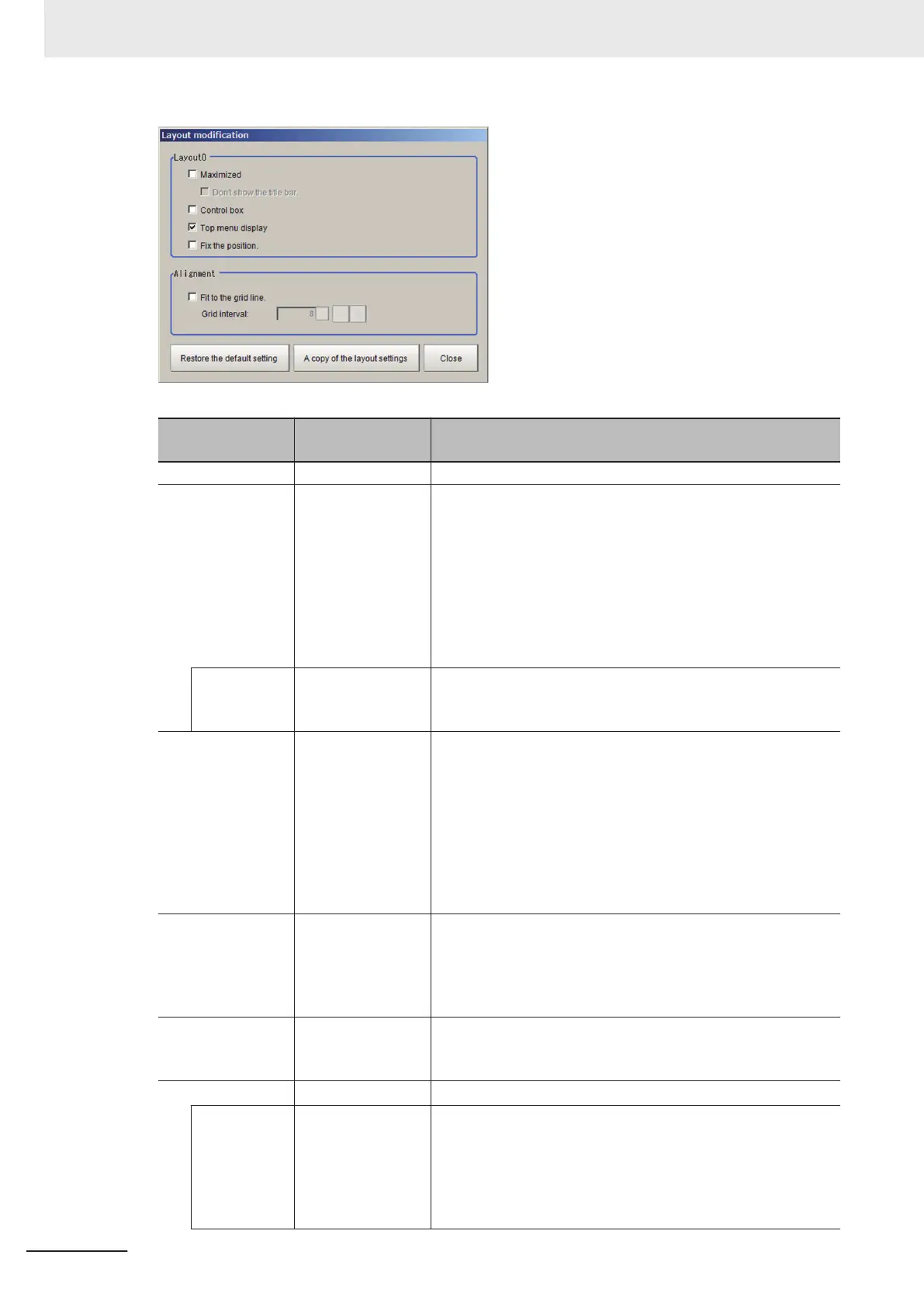

Item
Setting value
[Factory default]
Description
Layout number - Displays the layout number currently being edited.
Maximized
• Checked
• [Unchecked]
This function is exclusively for the FH series sensor controller.
Specifies whether or not to always display the Main Window at
its maximized state.
• Checked:
The Main Window will be displayed in its maximized state on
the current display. This window cannot be moved.
• Unchecked:
The Main Window will be set to the size and position just be-
fore it was maximized.
Don’t show
the title bar
• Checked
• [Unchecked]
This option is available when the Maximized is checked.
• Checked: The title bar will be hidden.
• Unchecked: The title bar will be displayed
Control box
• Checked
• [Unchecked]
This function is exclusively for the FH series sensor controller.
Specifies whether or not to display a Minimize Button and a
Close Button in the Main Window.
• Checked:
A Close button and Minimize button will be displayed in the
upper right corner of the Main Window.
• Unchecked:
The Close button and Minimize button in the upper right cor-
ner of the Main Window will be hidden.
Top menu display
• [Checked]
• Unchecked
Specifies whether or not to display the main menu at the top of
the Main Window.
• Checked: A menu will be displayed at the top of the window.
• Unchecked: The menu at the top of the window will be hid-
den, and changes to the layout will no longer be allowed.
Fix the position
• Checked
• [Unchecked]
Specifies whether or not to fix the Main Window.
• Checked: The Main Window position is fixed.
• Unchecked: The Main Window position is not fixed.
Alignment - Sets the layout position.
Fit to the grid
line
• Checked
• [Unchecked]
Sets whether or not the grid lines are displayed on the Main
Window by a pixel unit when the Layout modification is set.
• Checked: The grid lines will be displayed on the Main Win-
dow. The window part can be changed its position and size
per grid.
• Unchecked: The grid lines will be hidden.
8 Setting Windows
8 - 16
FH/FHV Series Vision System User’s Manual (Z365-E1)
