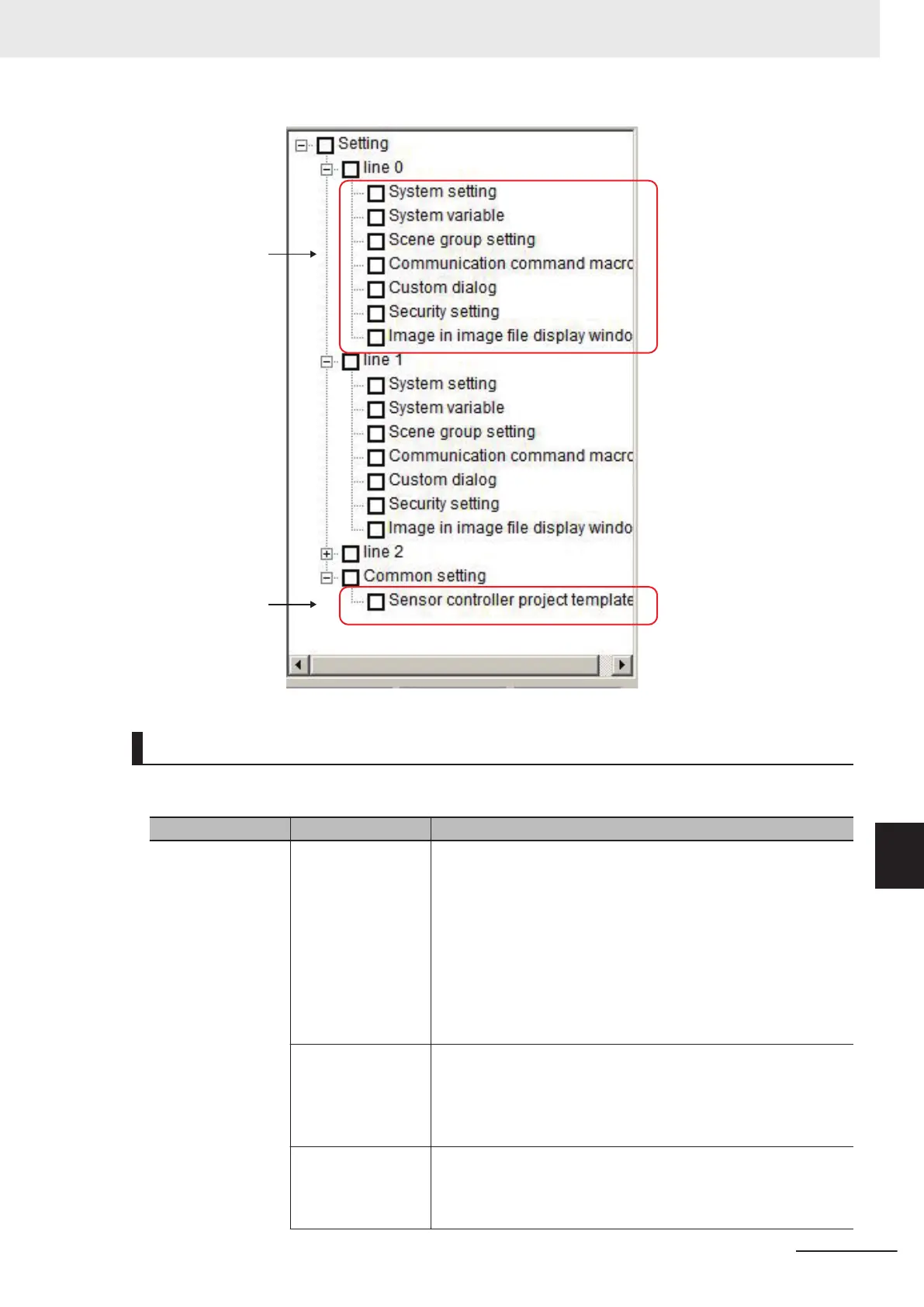

The setting data
of the line.
Sensor controller
settings common
to all lines
Applicable Line Maintenance settings data
A detailed list of all settings data that can be copied, or cleared.
Type Name Description
Setting data of the
line
System setting System setting includes the following configuration.
• The data of System Settings dialog box:
Refer to Section 4 Setting the Controller on page 4 - 1.
• The layout information of the layout 0 to 8:
Refer to 8-3 Arranging Windows [Layout Functions] on page
8 - 12.Applicable Line Maintenance settings data on page
9 - 33
• The User Data:
Refer to A-12 Sharing Data Within the Controller [User Data
Tool] on page A - 37.
System variables They are enabled within a defined line settings. Although they can
be set and referenced across scenes and scene groups, they can-
not be set and referenced in different lines with multiple line ran-
dom modes. For details, refer to 5-5-1 Edit Flow Screen on page
5 - 14 and 5-5-4 Using Variables on page 5 - 43.
Scene group saving
destination
Setting contents of the Scene grope saving destination are the
setting object.
Refer to 7-5 Saving Scene Groups in External Storage [Scene
Group Saving Destination Settings] on page 7 - 11.
9 Saving/Loading Data
9 - 33
FH/FHV Series Vision System User’s Manual (Z365-E1)
9-8 Copying Settings for Each Line in Multi-line Random-trigger Mode [Line Maintenance]
9
9-8-1 Before use of Line Maintenance
