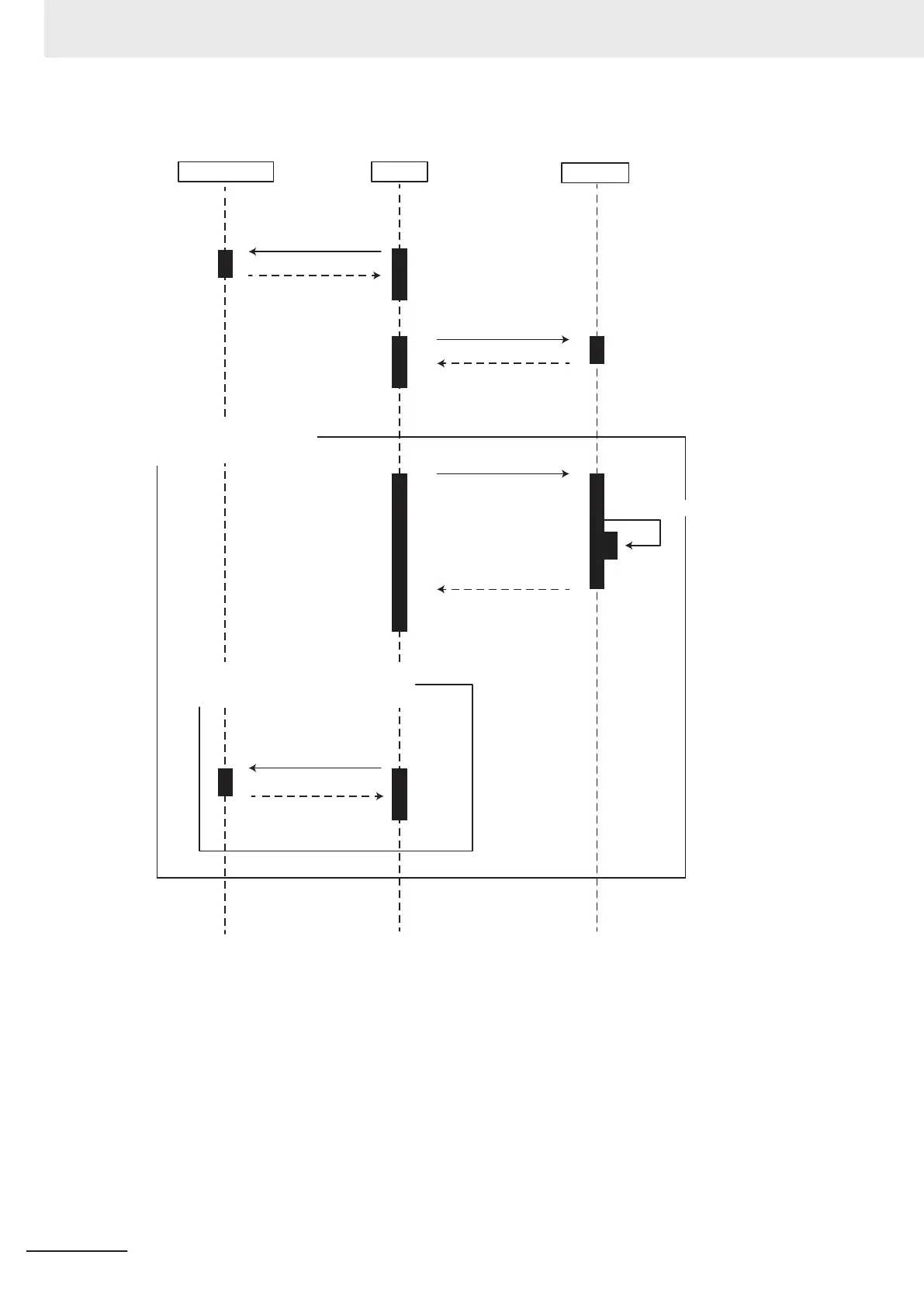

●Vision Master Calibration (Homing operation selection is Disabled.):
External device PLC
FH/FHV
Outputs data
1: Moves to the axis
position when
Calibration is started.
Response that
movement is completed.
Repeats processing within
this frame until calibration
complete flag is ON (1).
2: Clear the measurement
results.
Response that clear
processing is completed.
3: Measurement Command
3.1: Measurement
Moves only each axis of next axis
movement amount when calibration
complete flag is OFF (0).
4: Moves only each axis of
next axis movement
amount
Response that
movement is completed.
• Next axis movement amount
(by each axis of external device)
• Calibration complete flag
●PLC Master Calibration:
• Standard Mode:
The numbers in parenthesis are the external reference numbers that are used when commands are
executed for the PLC Master Calibration processing unit.
Refer to External Reference Table under PLC Master Calibration in the Vision System FH/FHV
Series Processing Item Function Reference Manual (Cat. No. Z341).
10 Advanced Usage
10 - 58
FH/FHV Series Vision System User’s Manual (Z365-E1)
