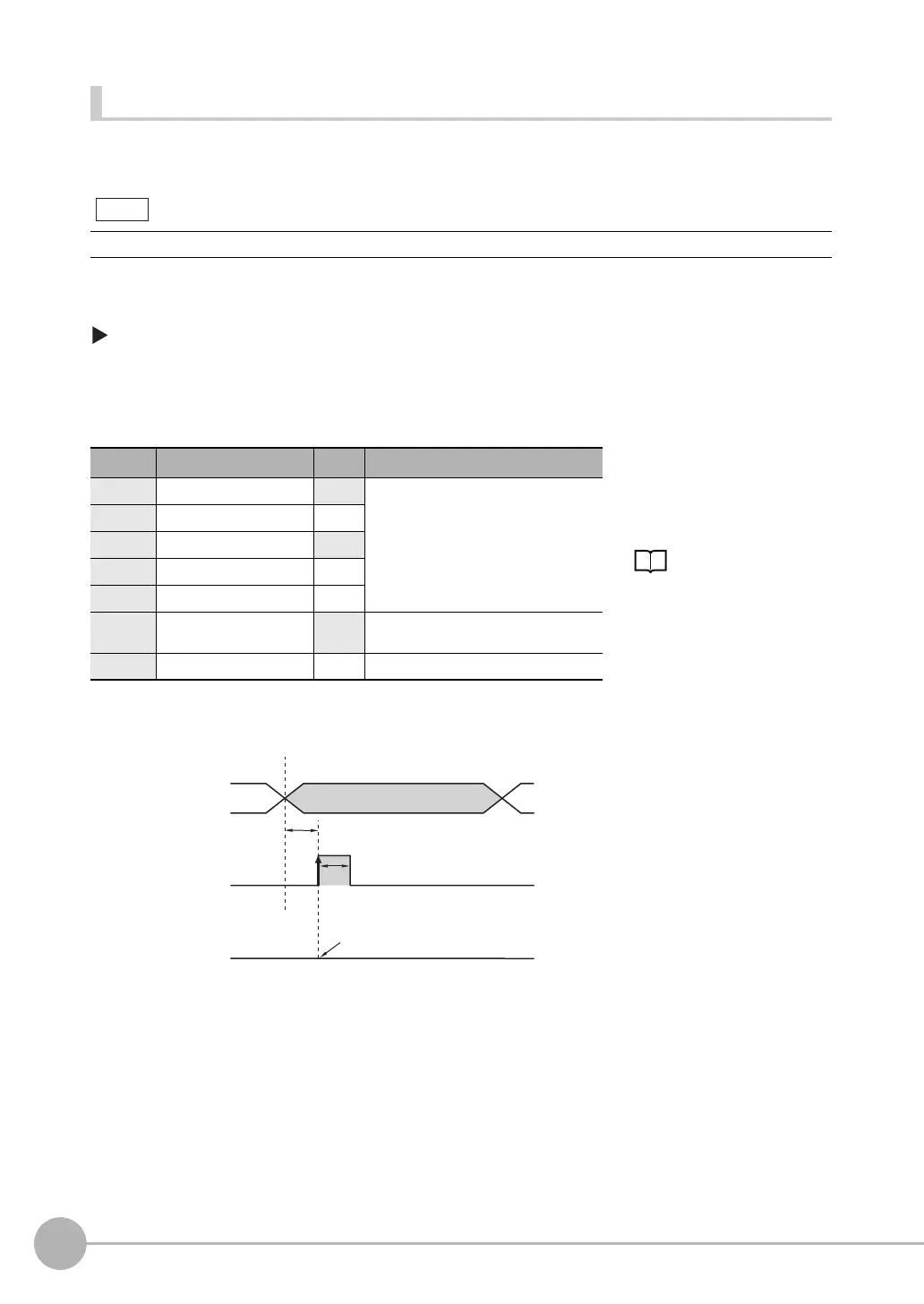

Controlling Operation and Outputting Data with the Sensor's Standard Parallel Connection
252
FQ2 User’s Manual
Clear Measurement Values
This command clears the measurement values that are stored in the Sensor. However, the OR signal and the
output signals that are assigned to OUT0 to OUT2 are not cleared.
Settings
[In/Out] − [I/O setting] − [I/O setting] − [Input] − [Input mode]
Press [Expand mode].
Wiring
Timing Chart
This function can be used in Run Mode only.
Color Signal State Description
The signals shown at the left
are used.
Refer to the following
information for signal wiring.
2-4 Wiring: p. 42
Gray IN0 ON Command parameter for clearing mea-
surement values
Green IN1 OFF
Red IN2 ON
White IN3 OFF
Purple IN4 OFF
Ye l l o w I N 5 ON Command input for clearing measure-
ment values
Orange OUT1 (BUSY) -- Processing in progress (default)
1 Turn ON IN0 and IN2 and turn OFF
IN3 and IN4.
2 Turn ON the IN5 signal while the
BUSY signal is OFF to clear the
measurement values.
Note
OFF
ON
The measurement values are
cleared from the Sensor.
OFF
ON
BUSY signal
IN5 signal
ON for 1 ms min.
Allow 5 ms min. and then
turn ON IN5.
IN0 to IN4 signals
