Adjusting the Images That Were Taken
76
FQ2 User’s Manual
• Setting the Image for Position Compensation
You can select the image to which to apply the results of position compensation processing.
You can set the image for position compensation for each position compensation item.
[Image] − [Image adjustment] − (Position compensation item name) − [Modify]
1 Press [Details] − [Scroll parameter]
2 Set the source image to [Camera] or [Prev.].
• Using Filter Items for Processing with Position Compensation Items
To more effectively perform position compensation, filter items can be used to create an image specifically for
position compensation and then apply only the results of processing the position compensation to the image
that will be measured. The processing order of filter and position compensation items and the settings of the
source images are set up as shown below.
Parameter Setting Description
Source image Camera (camera
image)
The results of processing the position compensation item is applied to the image that is taken
by the Camera.
This setting is used when filter items or other position compensation items have been used
specifically for the position compensation item.
Using Filter Items for Processing with Position Compensation Items: p. 76.
Prev. (previous
image) (default)
This setting is used when the processing results of the current position item are to be applied
to the image that results from previous filter items or other position compensation items.
Processing
order
Image processing item Source image setting
1 0: Enhance edges (Edge
Enhancement) (filter item)
Source image: Camera image
Camera image (image for processing) → Processed image (results of processing)
2 1: Search position comp. (Search
Position Compensation) (position
compensation item)
Source image: Camera image
Previous image (image for processing) → Camera image (results of processing)

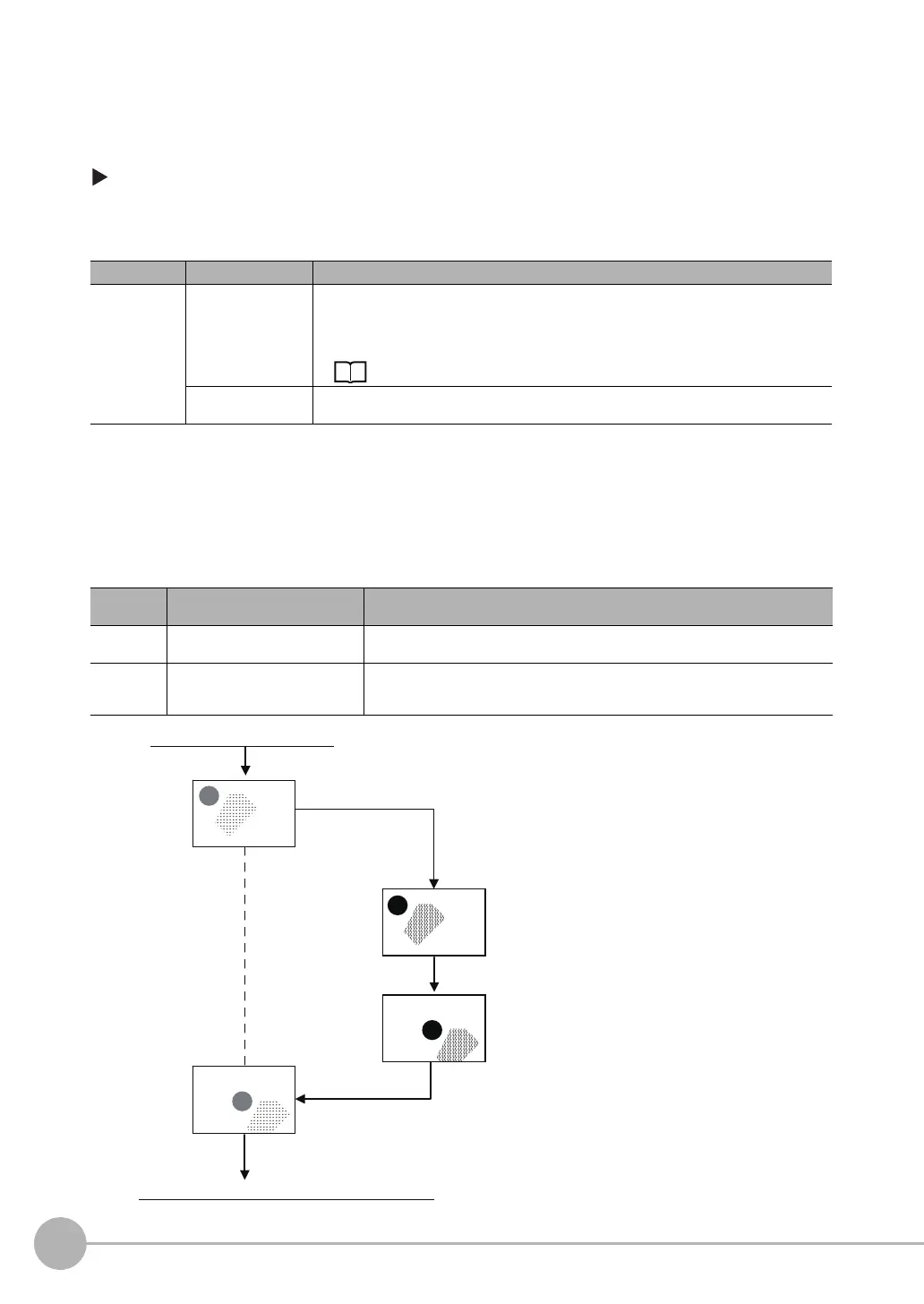

Camera image
(no processing)
0: Edge Enhancement (filter item)
Image is taken on TRIG signal.
1: Search Position Compensation
(position compensation item)
If the source image is set to the camera image.
the results of position compensation are applied to the
Camera image.
Measurements are performed with inspection items.
Camera image
with results of
Search Position
Compensation
item
To Next Page
