13-5

13 PWM Outputs

CP2E CPU Unit Software User’s Manual(W614)

13-1 PWM Outputs (Variable-duty-factor Pulse Outputs)

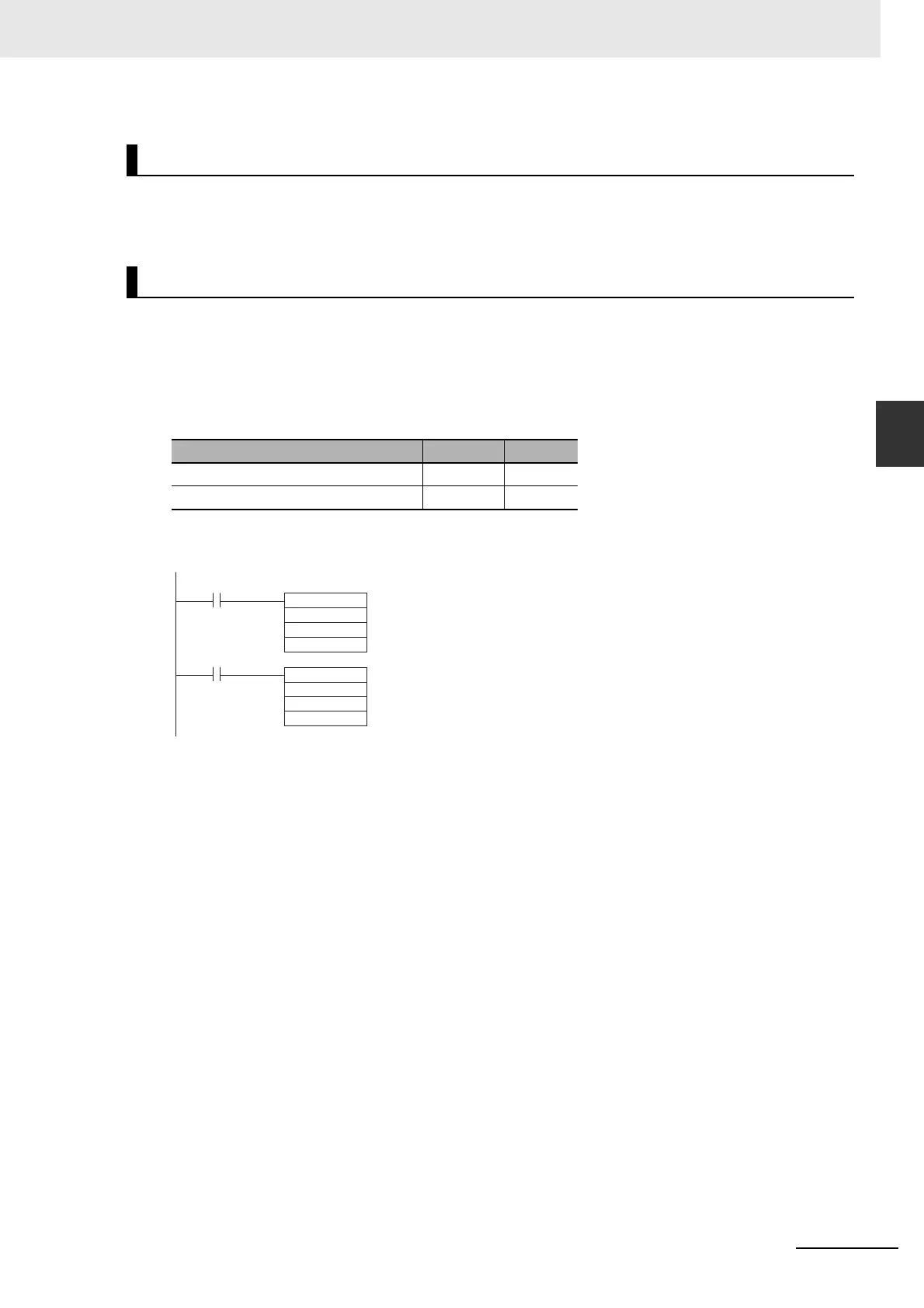

13-1-2 Ladder Program Example

PWM

INI

z PLC Setup

There are no settings that need to be made in the PLC Setup.

z DM Area Settings

• PWM Operand Settings (D0 and D1)

z Ladder Diagram

Applicable Instructions

Preparations

Setting Operand Data

Frequency: 2,000.0 Hz D0 #4E20

Duty factor: 40.0% D1 #0190

@PWM

#1000

#0003

D10

0.00

0.01

Start input

Stop input

←PWM output 0 (Duty factor in increments of 0.1%, Frequency in increments of 0.1 Hz)

←Frequency setting

←Duty factor setting

←PWM output 0

←Stops pulse output

←Not used.

@INI
