18 Programming Device Operations

18-20

CP2E CPU Unit Software User’s Manual(W614)

Additional Information

Change to PROGRAM mode before transferring the PLC Setup and ladder program.

A ladder program created with the CX-Programmer can be transferred to the CP2E.

18-4-3 Transferring a Ladder Program and the PLC Setup

Change to PROGRAM mode, select Operating Mode - Program from the PLC Menu, and then

click the Yes Button.

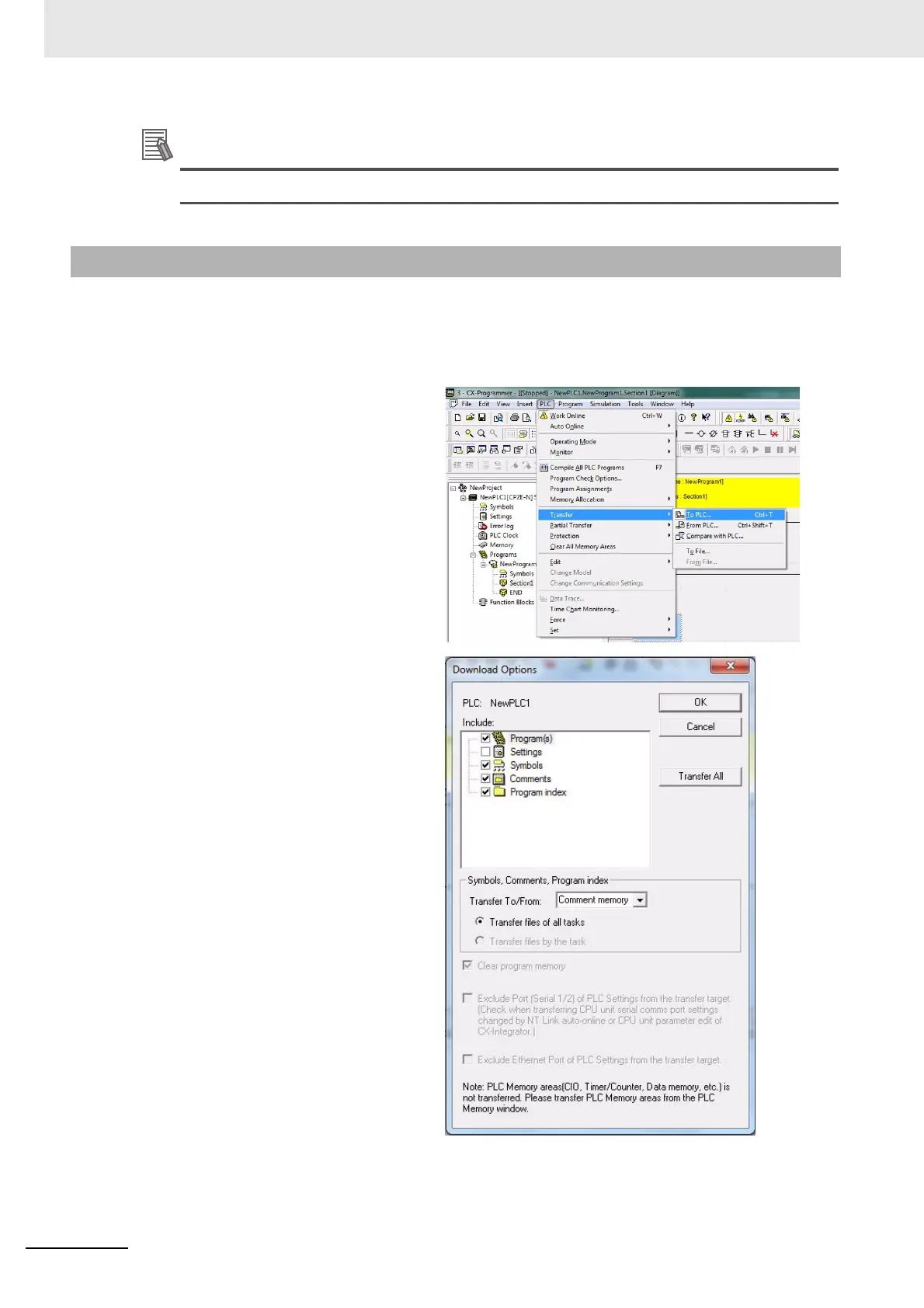

Select Transfer - Transfer [PCPLC]

from the PLC Menu. The Download

Options Dialog Box will be displayed.

Click the OK Button.

A dialog box to confirm the transfer

will be displayed.

To transfer the PLC Setup, select the

Settings Check Box.
