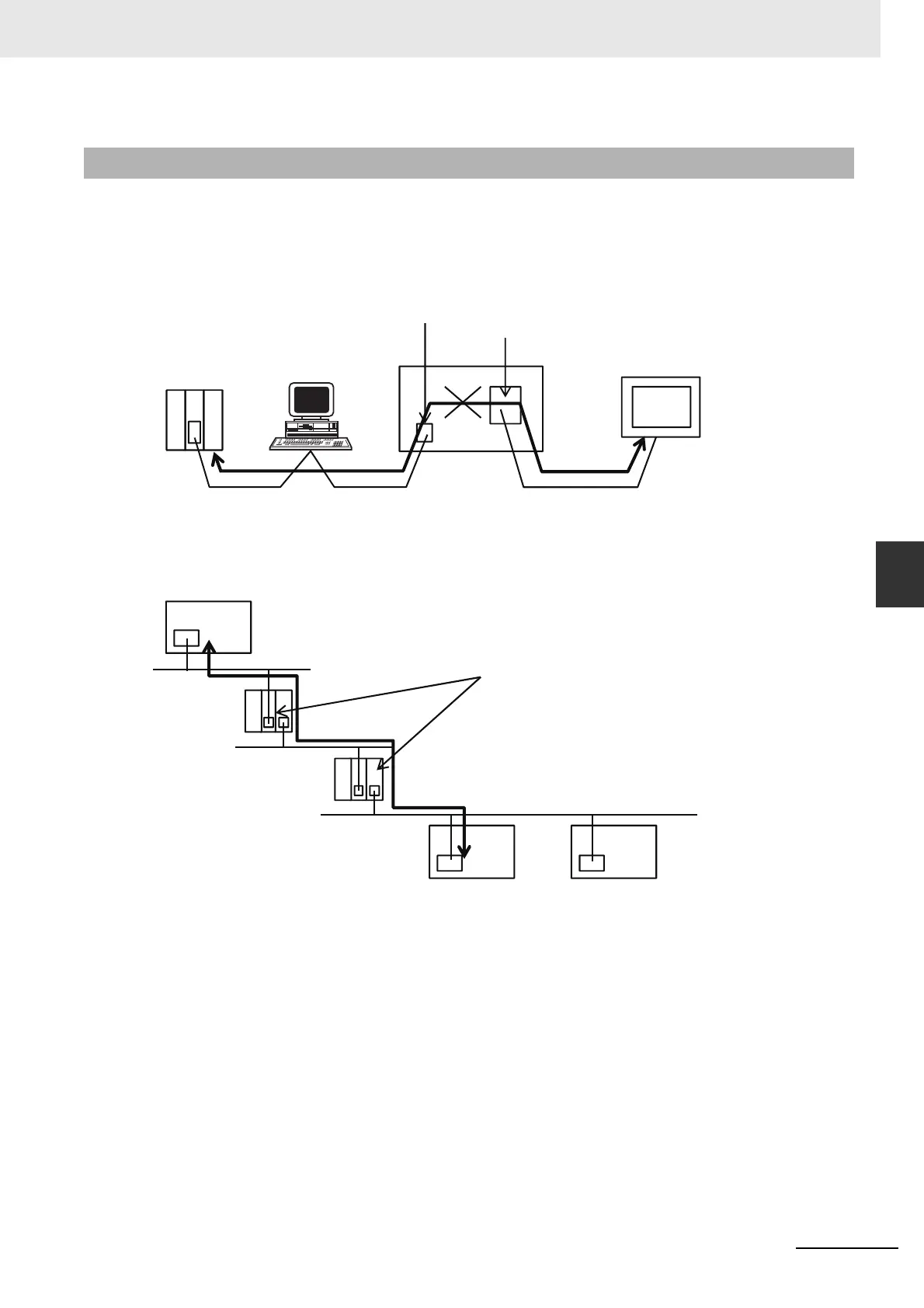

15-4-8 Restrictions When Using FINS Communication Services
CP2E CPU Unit does not support network relay function.
The PTs and host computers connected to the CP2E N-type CPU Unit cannot communicate (such
as FINS message communication, remote programming or monitoring by the CX-Programmer) with the
PLCs or computers on the network by Host Link.
CP2E N-type CPU Unit can be only configed as the end point of the network.
It cannot be used as a rely node for the network. It can send or receive FINS command through up to 3
layers of the network.
15-4-8 Restrictions When Using FINS Communication Services
