18 Programming Device Operations

18-18

CP2E CPU Unit Software User’s Manual(W614)

18-4 Connecting Online to the CP2E and

Transferring the Program

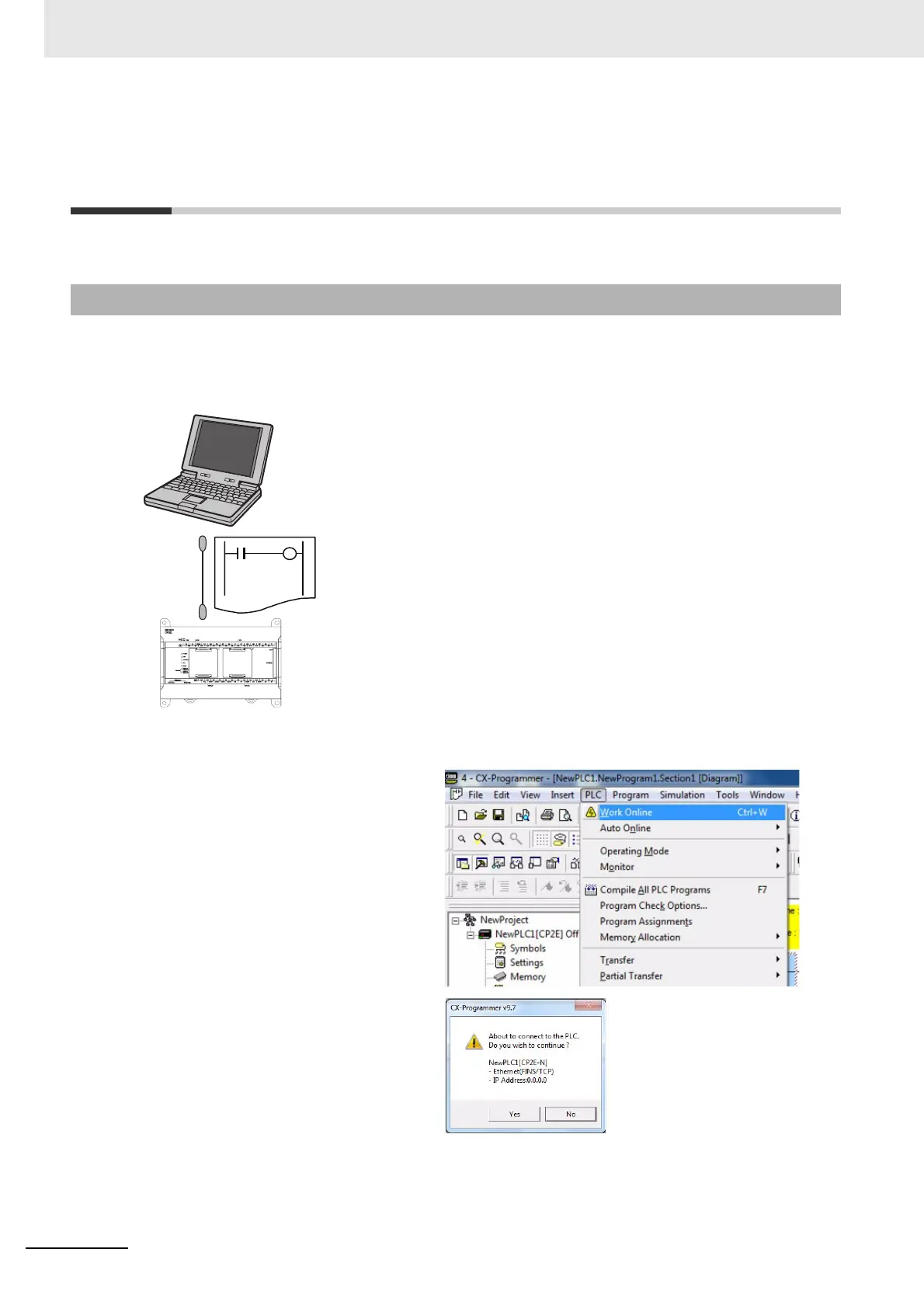

This section describes how to make an online connection between the CX-Programmer and the CP2E,

and then transfer a ladder program to the CP2E.

To enable transferring programs from the CX-Programmer to the CP2E, it is first necessary to place the

CX-Programmer online with the CP2E.

Online is the state in which communications is possible between the computer and the CP2E.

18-4-1 Connecting Online

Open the project containing the program to be transferred from the CX-Programmer.

Select Work Online from the PLC

Menu of the CX-Programmer.

A dialog box to confirm going online

will be displayed.

Click the Yes Button.

CP2E

CX-Programmer

Go online and then transfer the program.
