14 Serial Communications

14-24

CP2E CPU Unit Software User’s Manual(W614)

Slave address

01 Hex

FUNCTION code

05 Hex

Communication data

4 bytes (Hex)

OFF

0000 Hex

(Register number -1)

0001 Hex

Stop operation

Write OFF (0000 Hex) to

coil number 0001 (Hex)

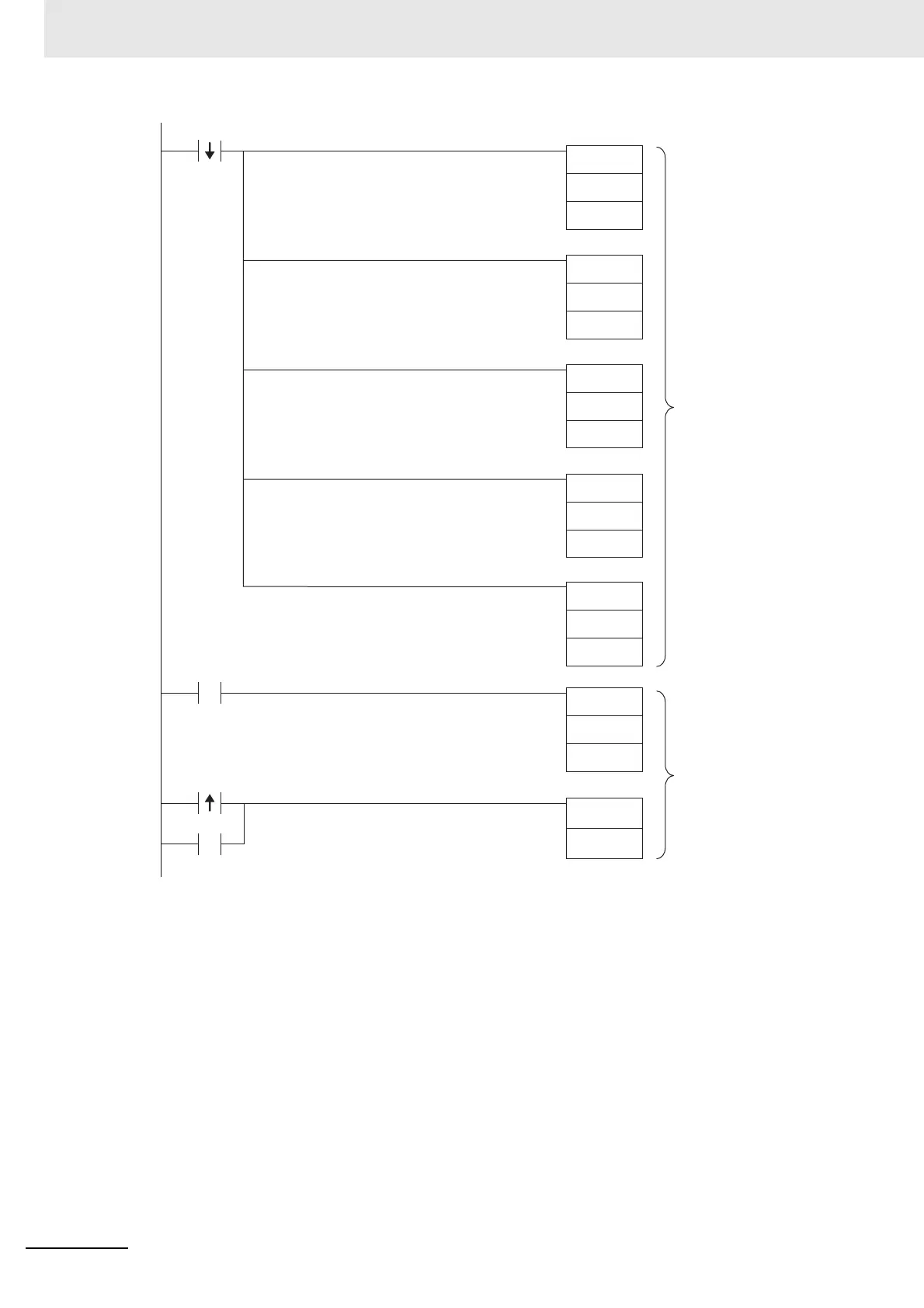

Start and continue Modbus

communications from

1 second after turning

ON the power supply.

Modbus-RTU Master Execution Bit

RUN

Command

D1300

MOV(021)

D1301

MOV(021)

D1302

MOV(021)

D1303

MOV(021)

D1304

MOV(021)

#0000

W1.00

Always ON flag

A641.01

&10

TIMX(550)

000

P On

SET

A641.00

T000

SYSMAC CP Series CP2E CPU Unit Software USER'S MANUAL1
