17 Analog Input/Output Option Board

17-18

CP2E CPU Unit Software User’s Manual(W614)

z 0 to 10 V

The hexadecimal values 0000 to 0FA0 (0 to 4000) correspond to an analog voltage range of 0 to 10

V. The entire output range is 10 to 10.24 V.

Note When using current inputs, voltage input terminals must be short-circuited with current input terminals.

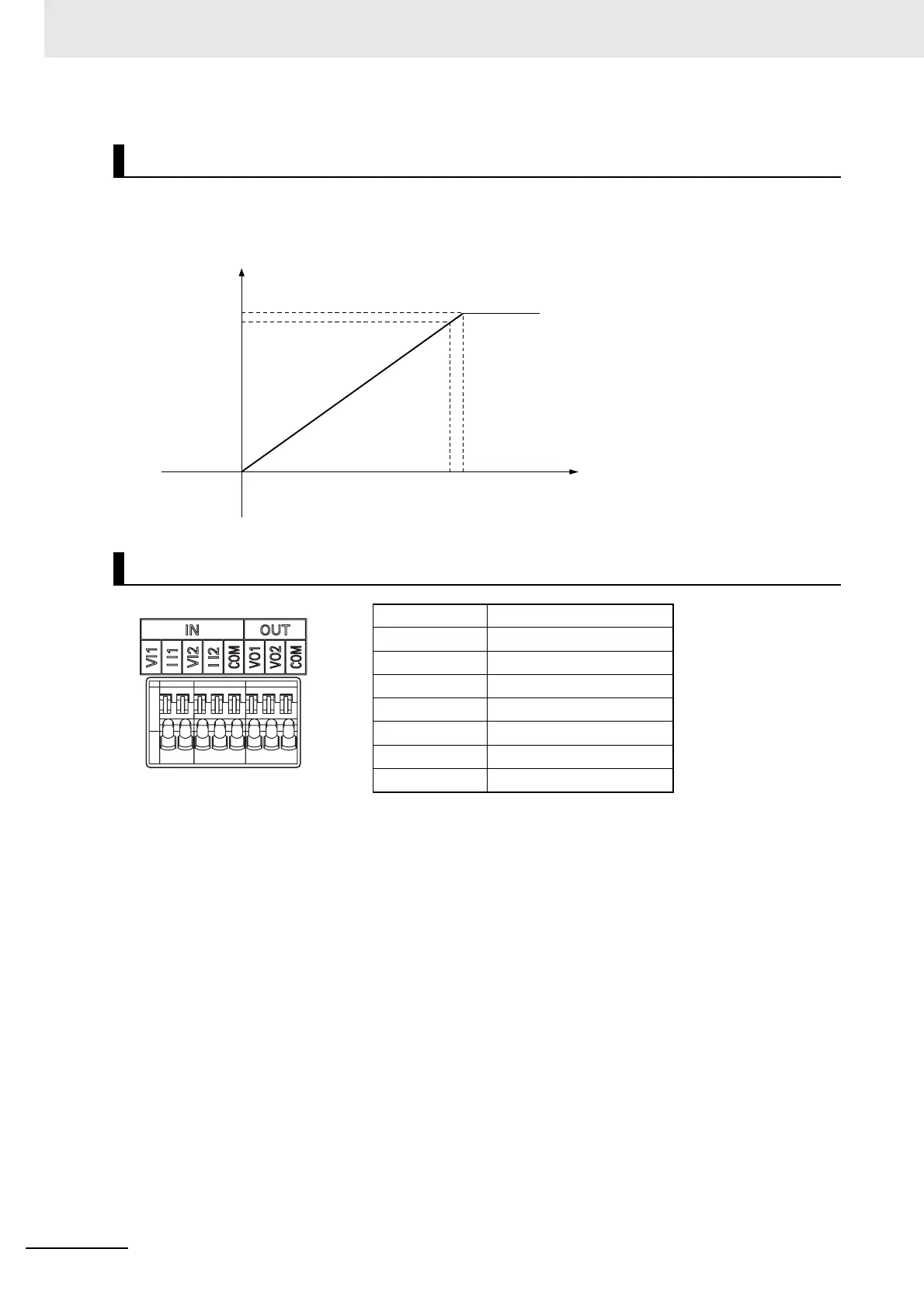

Analog Ouput Signal Ranges

Analog I/O Terminal Arrangement

10V

0FA0

FFFF

0FFF

(4000) (4095)

0000(0)

Converted Data

Hexadecimal

(Decimal)

10.24V

VI1 Voltage Input 1

II1 Current Input 1

VI2

Voltage Input 2

II2 Current Input 2

COM Analog I/O Common

VO1 Voltage Output 1

VO2 Voltage Output 2

COM Analog I/O Common
