Oracle Database Appliance X7-2S/X7-2M Status Indicators

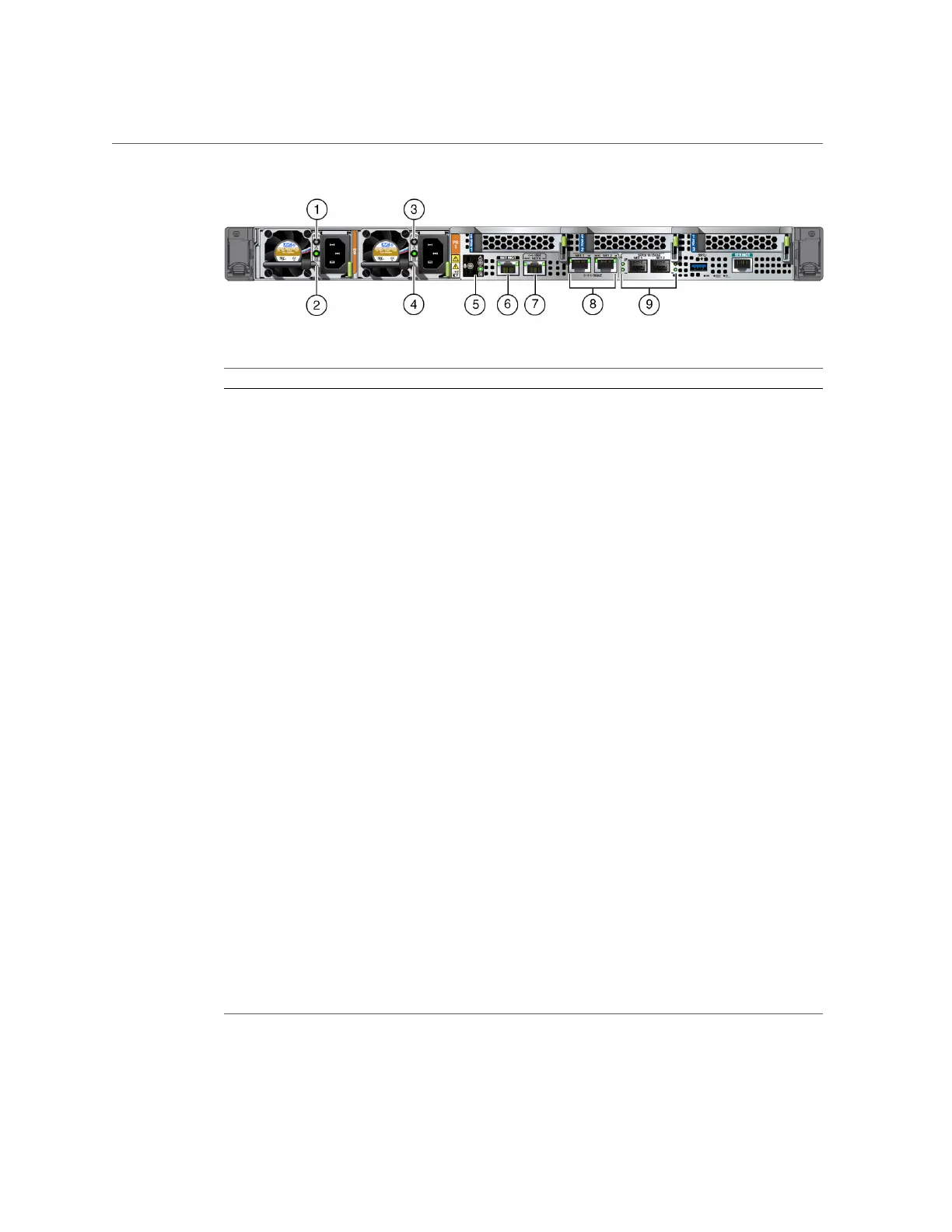

Callout Indicator/LED: Color State Meaning
1, 3 PS Service Required: amber ■ Off – Normal operation.
■ On – The power supply (PS) has detected a PS fan failure, PS
overtemperature, PS over current, or PS over or under voltage.
2, 4 PS OK: green ■ Off – No AC power is present.
■ On – Normal operation. Input AC power and DC output voltage
are within specification.
■ Slow blink – Normal operation. Input power is within
specification. DC output voltage is not enabled.
5 System locate, service required
and OK: various
These operate in the same way as on the front panel.
6 NET MGT port: green 10/100/1000 BASE-T Ethernet management interface.
Top left speed indicator:
■ On – Green for 1000Base-T link.
■ Off – 10/100BASE-T link.
Top right activity indicator:
■ On – Link up.
■ Off – No link or link down.
■ Blinking – Packet activity.
7 NET 0 port: green 10/100/1000 BASE-T Ethernet interface.
Top right speed indicator:
■ On – 1000Base-T link.
■ Off – 10/100BASE-T link.
Top left link indicator:
■ On – Link up.
■ Off – No link or link down.
■ Blinking – Packet activity.
8 NET 1 and 2 10 GbE ports:
green/amber
Note - The 10/25 GbE SFP28
(NET 1 and NET 2) ports are
the default network ports for the
10 GbE Ethernet management interface.
Top left activity indicator:
■ On – Link up.
Chapter 1 • Overview of System Status Indicators and LEDs 15
