Oracle Database Appliance X6-2-HA Service Manual

Install SAS Expander Cable
See “Removing the Server Node Top Cover” on page 149.
d.
Remove the PCIe riser.
See “Remove PCIe Riser From Server Nodes” on page 178.
2.
Disconnect the SAS expander cable and remove it from the server node.
a.

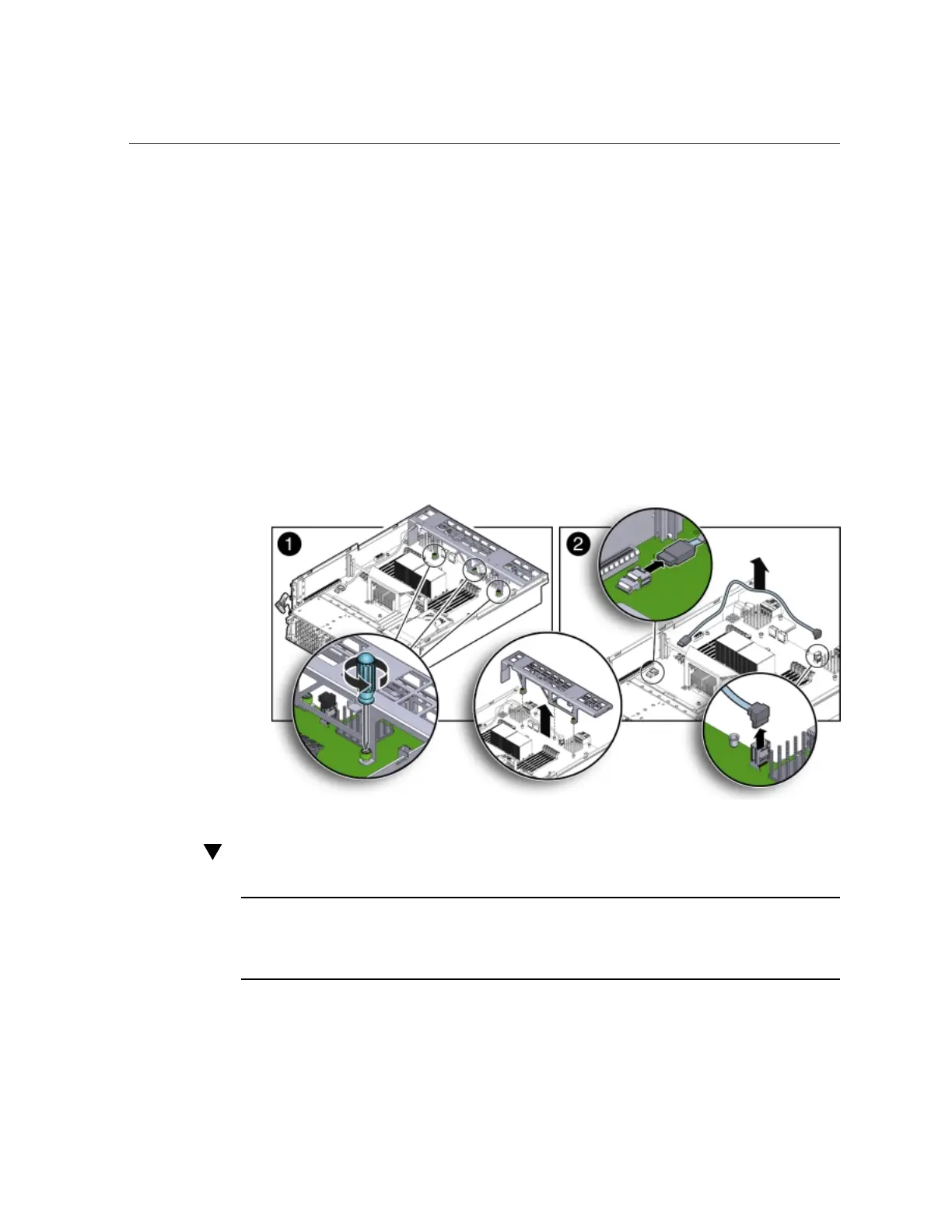

Loosen the three green, captive Phillips screws that secure the server
node's front cover and remove the cover [1].
b.
Disconnect both cable connectors from the motherboard and remove the
cable [2].
Push the connector inward, press down on the connector to release it, and pull the
connector out.
Install SAS Expander Cable
Note - Information in this appendix does NOT apply to Oracle Database Appliance X3-
2, Oracle Database Appliance X4-2, Oracle Database Appliance X5-2 or Oracle Database
Appliance X6 series. Refer to the preceding chapters in this document for information on
servicing those systems.
