Oracle Database Appliance X5-2 Status Indicators
Server Node Front Panel Status Indicators

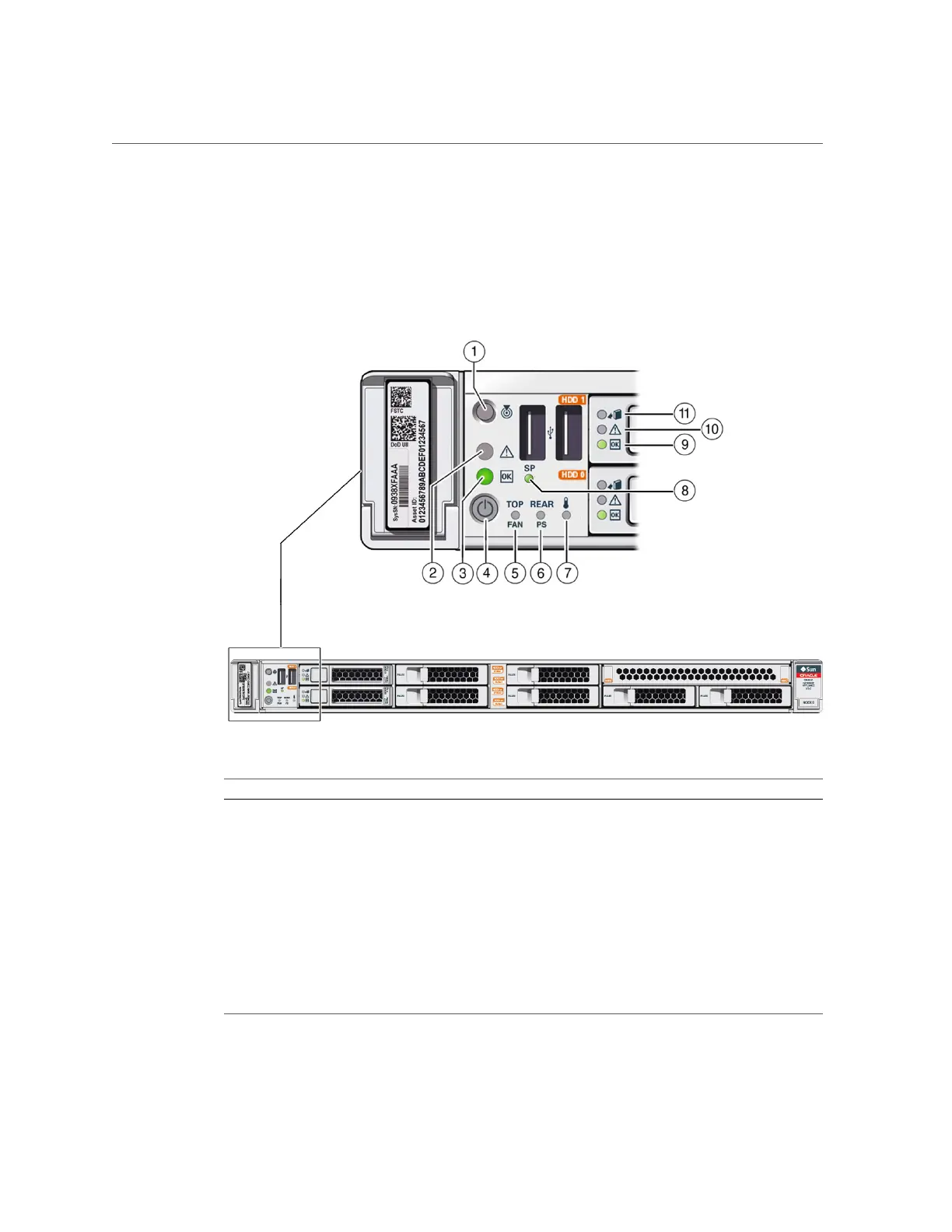

The Oracle Database Appliance X5-2 server node front panel includes indicators for the system
and storage drives.
Callout Indicator/LED: Color State Meaning
1 Locate: white ■ Off – Normal operation.
■ Fast blink – This LED blinks to help locate the system. Operators
can turn this indicator on and off remotely using Oracle ILOM.
■ Pressing this button toggles the fast blink on or off.
2 Service Required: amber ■ Off – Normal operation.
■ On – A fault is present in the server node.
Note - The lighting of this indicator is always accompanied by a
system console message that includes a recommended service action.
3 OK: green Indicates the operational state of the server node:
■ On – The server is powered on, and all host POST code
checkpoint tests are complete. The server is in one of the
Chapter 1 • Overview of System Status Indicators and LEDs 39
