Oracle X6 series User Manual

Configure Option ROM and I/O Space Allocation
Option ROM and I/O Space Allocation 97
The BIOS setup menu appears.
■
Use the arrow and tab keys to navigate through the BIOS Setup Utility.
■
Use the Enter key to make selections.
■
When you are done, press F10, or navigate to the Exit menu screen to exit and save your
changes.
2.
Select one of the following:
■
For PCIe cards, select Select IO > Add In Cards.
■
For Net 0, 1, 2, or 3, select IO > Internal Devices.
The corresponding IO screen appears.

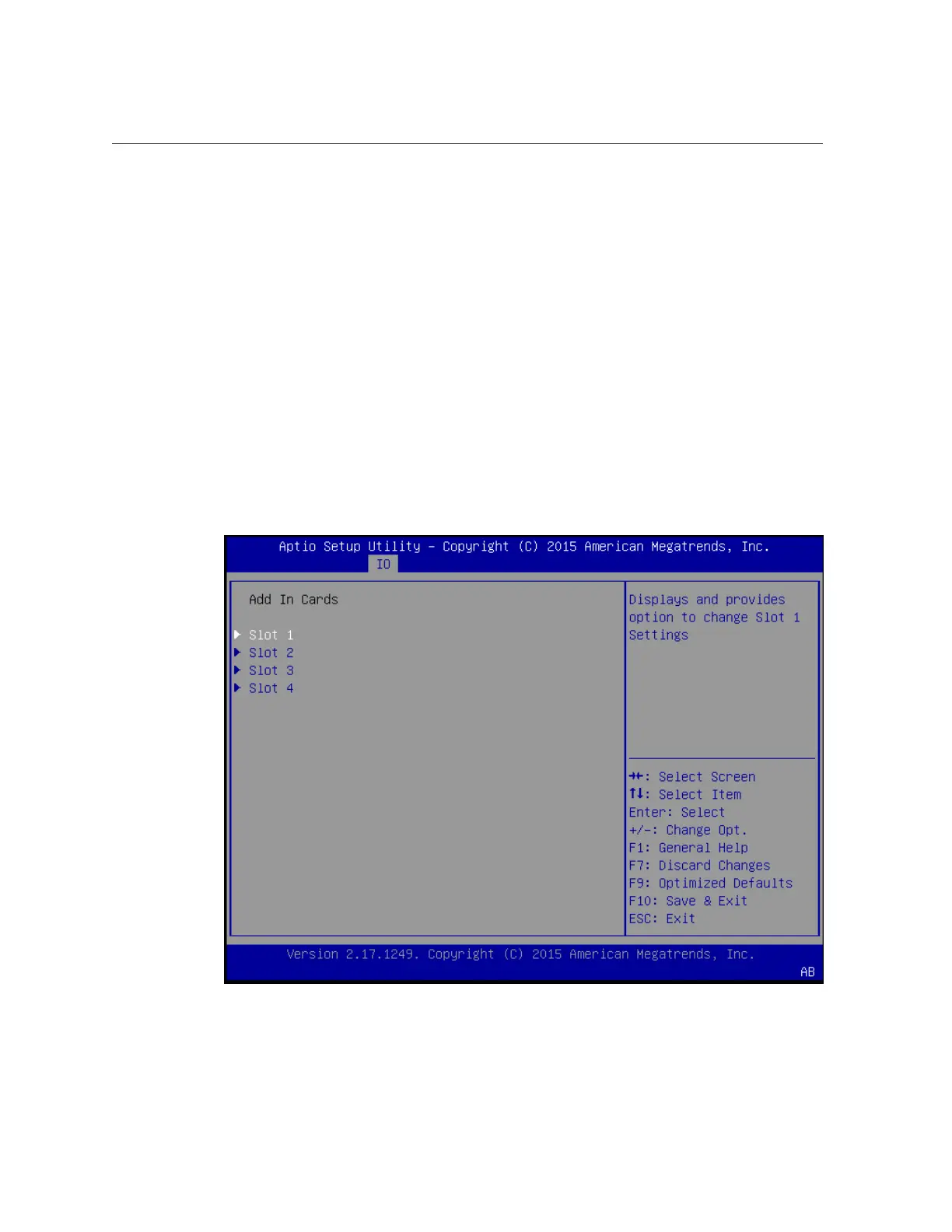

The following figures shows the IO Add In Cards screen.
3.
Select a network port or a slot number from the drop-down list.

Oracle X6 series Specifications

General

Cores per Processor	Up to 22 cores
Processor	Intel Xeon E5-2600 v4 series
Networking	10GbE
Form Factor	Rackmount
Expansion Slots	PCIe slots available
Power Supply	Redundant power supplies
Storage	supports SAS, SATA, and NVMe drives
