Table 1. Main Instrument Panel Controls and Indicators. - Continued
Key
Control/
Indicator Function
14 OVERSPEED
Indicator
Flashes (amber) when speed of HET Tractor is too fast for
existing tire pressure as selected by central tire inflation
system rotary selector switch.
16
22
15
18 19
17 2120
23
24
25
BLACK
OU T
DRIVE
BLACK
OU T
MARKER
BLACK
OU T
LIGHTS
CHECK
GAUGES
CHECK
ENGIN E
AIR
LOW
CROSS COUNTRY
HIGHWAY
MUD SAND & SNOW
9 MAX SPEED 45 MPH)
(MAX SPEED 30 MPH)
( MAX SPEED 15 MPH)
( MAX SPEED 5 MPH)
EMERGENCY
OVERSPEED
LOW AI
R
START
CTI OFF - ON
CTI CONTROLLER MODEL 101
26
30
31
32
27
28
29

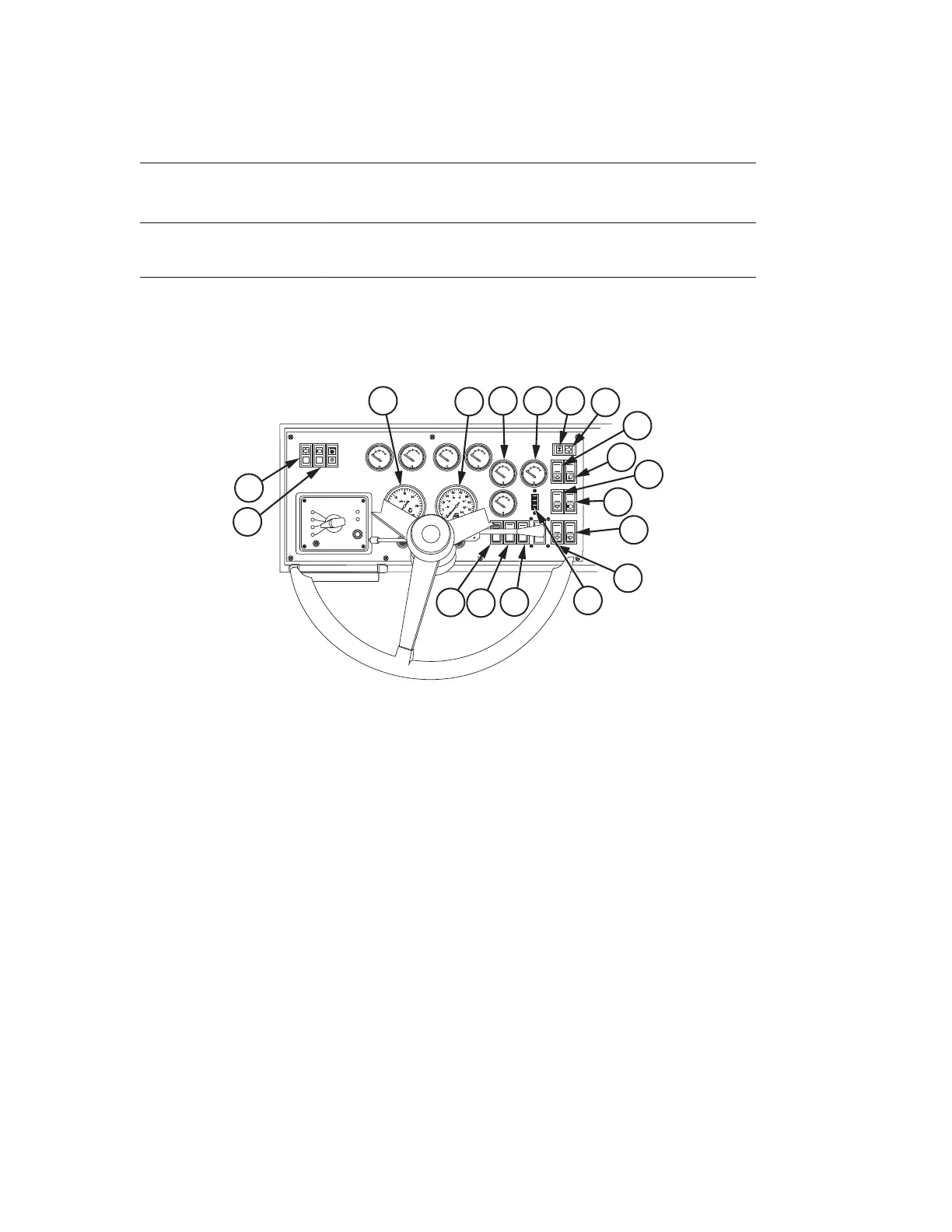

Figure 2.
15 CHECK
GAUGES
Indicator
Illuminates when engine coolant level is too low, engine (oil
or coolant) temperature is too high, or oil pressure is too low.
Warning alarm sounds at the same time indicator is lit.
16 CHECK
ENGINE
Indicator
Illuminates (amber) when engine malfunction occurs.
17 Tachometer/
Hourmeter
Shows engine operating speed (rpm X 100) and total
operating time (HOURS).
TM 9-2320-360-10 0015
0015-4
