SPARE TIRE REMOVAL
WARNING
Always wear heavy gloves when handling winch cable. Never let cable
run through hands. Frayed cables can cut severely. Failure to comply
may result in serious injury or death to personnel.
1. Turn handcrank (1) of tire davit (2) to let out enough cable (3) to route through wheel
(4) and wrap around spare tire assembly (5).
4
5
2
3
1
6

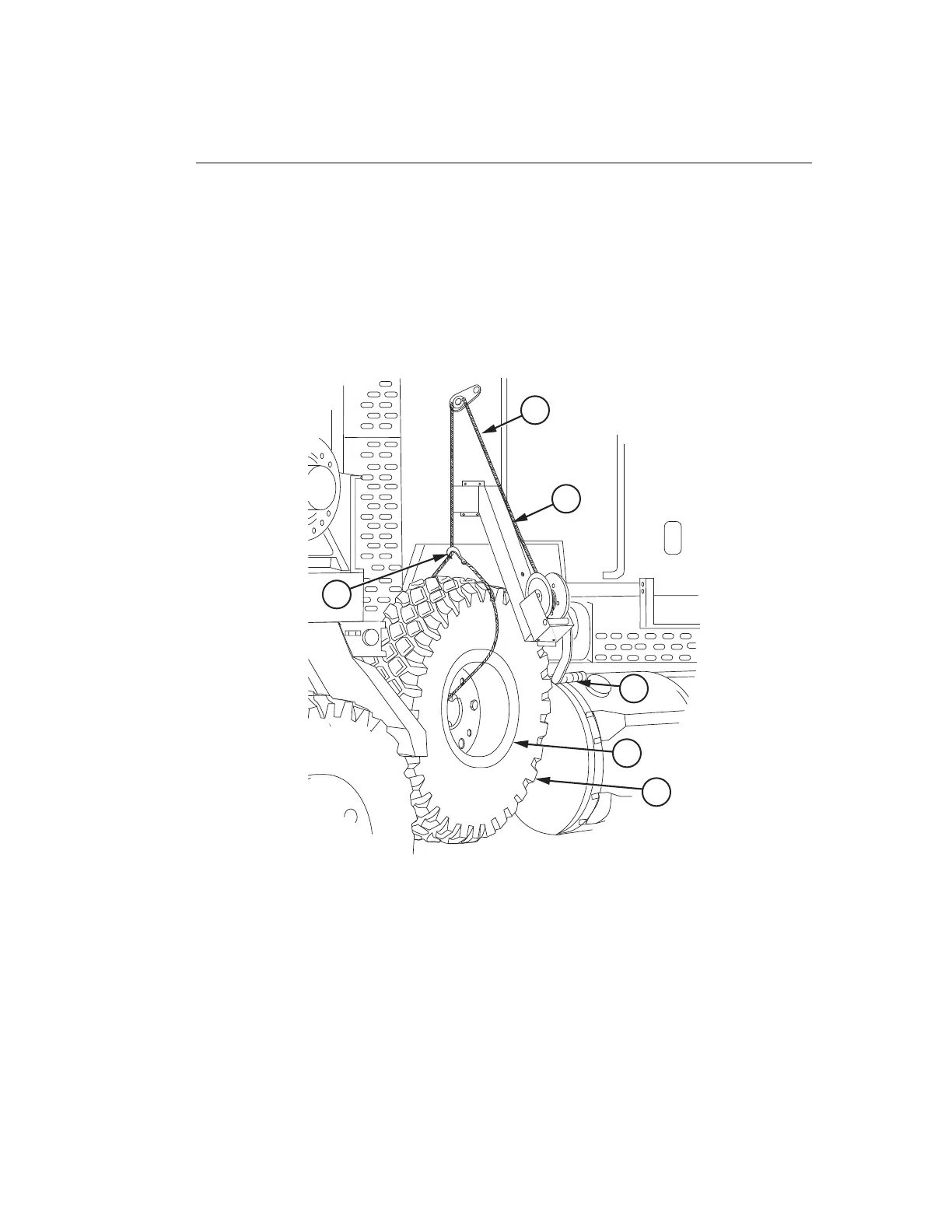

Figure 3.
2. Push hook (6) through wheel (4). Wrap cable (3) once around spare tire assembly (5).
3. Secure hook (6) to cable (3) at top of tire assembly (5).
4. Turn handcrank (1) to put light tension on cable (3).
TM 9-2320-360-10 0108
