FLAT TIRE REMOVAL - Continued
2. Position jack No. 1 (3) on jack plate (1), under spring (4) and in front of spring saddle
(2).
3. Unscrew ram (5) of jack No. 1 (3) until it touches spring (4).
7
8
5
6
4
3
1
9
8
6
7
8
6
4
3
1
PASSENGER SIDE
DRIVER SIDE
5

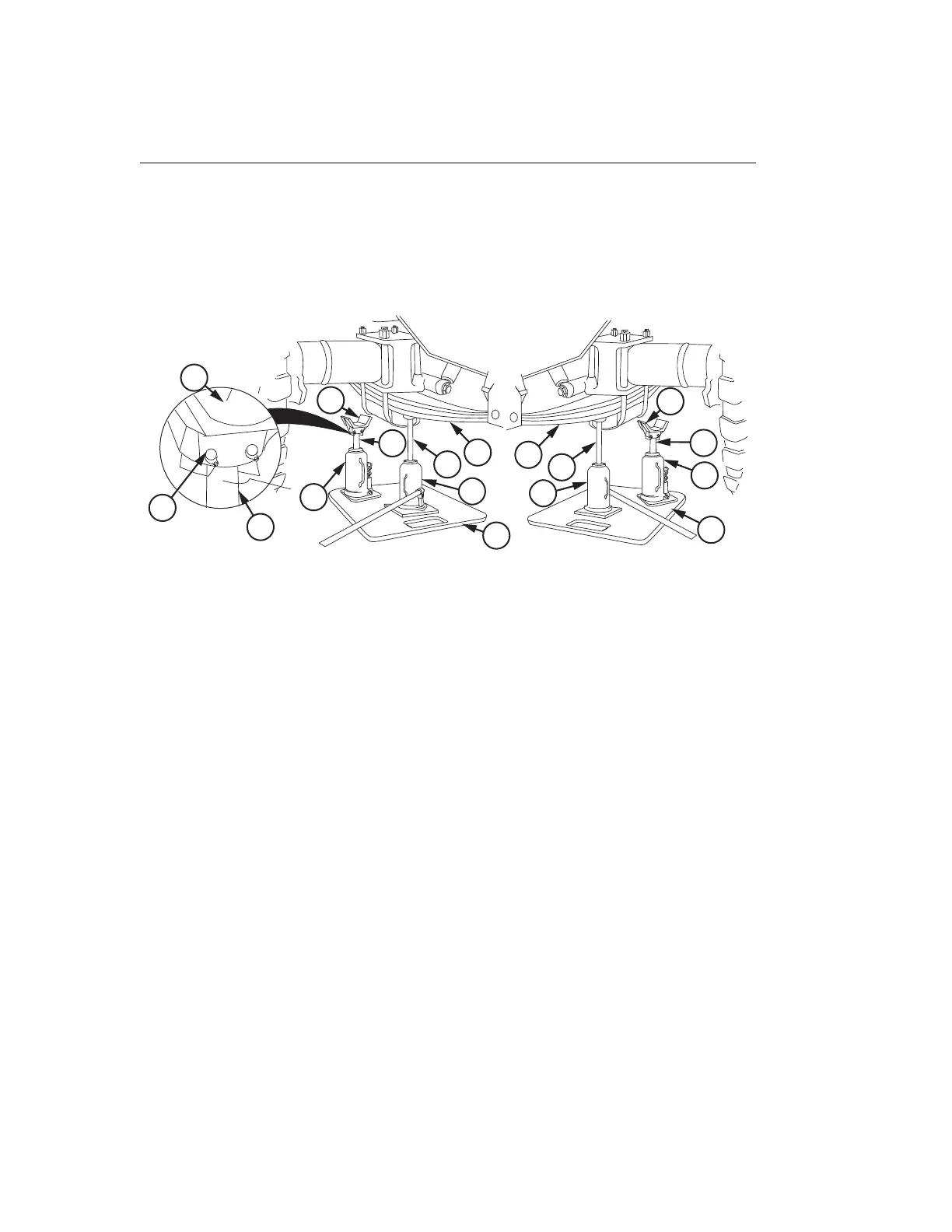

Figure 7.
4. Unscrew ram (6) of jack No. 2 (7) approximately 3 in. (7.62 cm).
NOTE
Adapter must be centered on jack.
5. Install adapter (8) on ram (6) of jack No. 2 (7) with two locking pins (9) and position
jack on jack plate (1).
6. Raise jack No. 1 (3) to its maximum height.
WARNING
Jack must be positioned using only the extension handle . Do not attempt
to crawl under the HET Tractor to position jack. Failure to comply may
result in serious injury or death to personnel.
7. Move jack No. 2 (7) directly under spring saddle (2).
