FLAT TIRE REMOVAL - Continued
7
3
2
DRIVER SIDE
PASSENGER SIDE
7
2
3

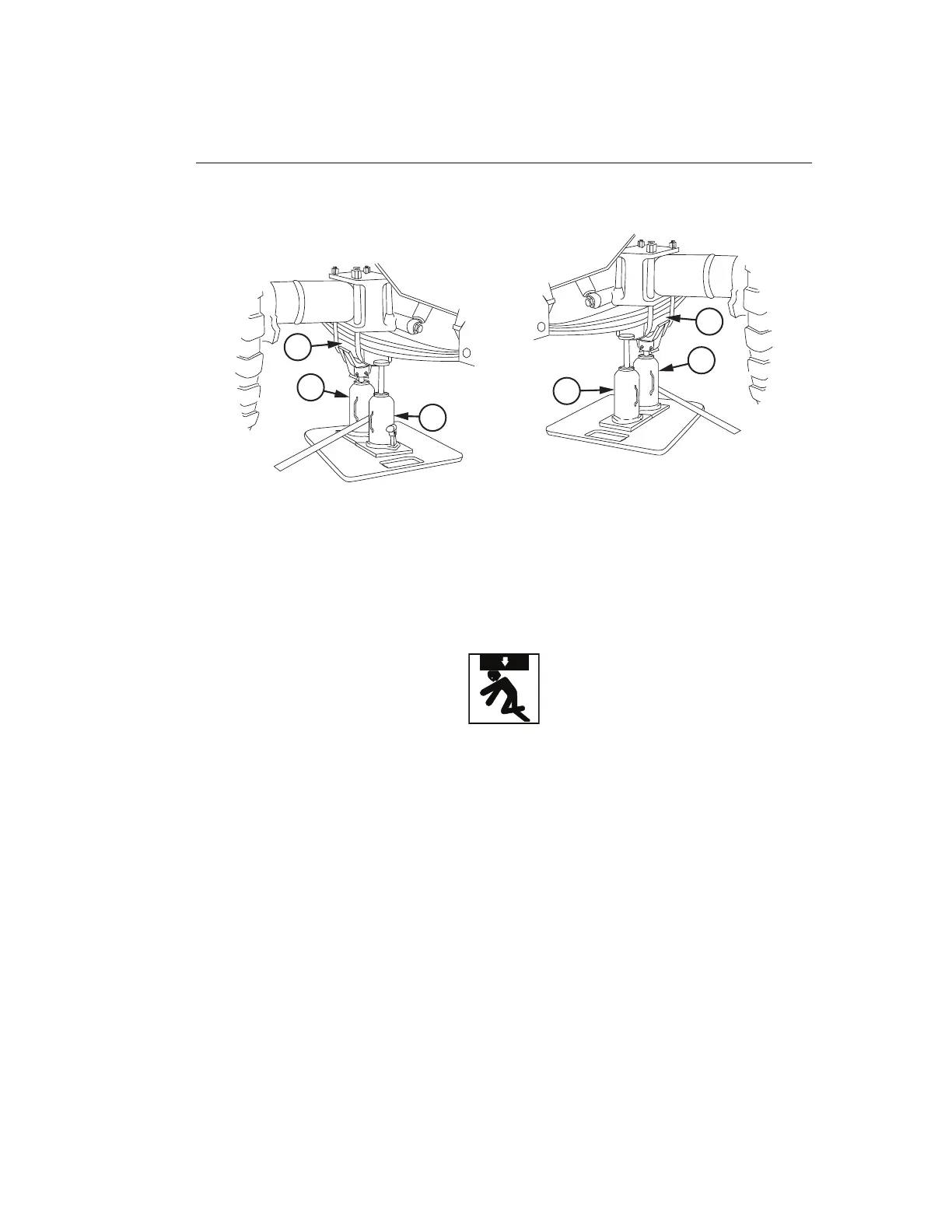

Figure 8.
8. Raise jack No. 2 (7) until jack No. 1 (3) can be removed.
9. Move jack No. 1 (3) clear of spring saddle (2) and spring (4) and go to Step (17).
WARNING
Never go under equipment when supported only by jack. Keep clear of
equipment when raising or lowering. Failure to comply may result in
serious injury or death to personnel.
WARNING
Never go under HET Tractor with engine running. HET Tractor may move
unexpectedly. Failure to comply may result in serious injury or death to
personnel.
10. Position jack plate (1) under axle housing (10) and trailing arm (11) so both jacks can
be placed on jack plate.
