FLAT TIRE STOWAGE - Continued
10
6
7
11
8
5
9
4
1

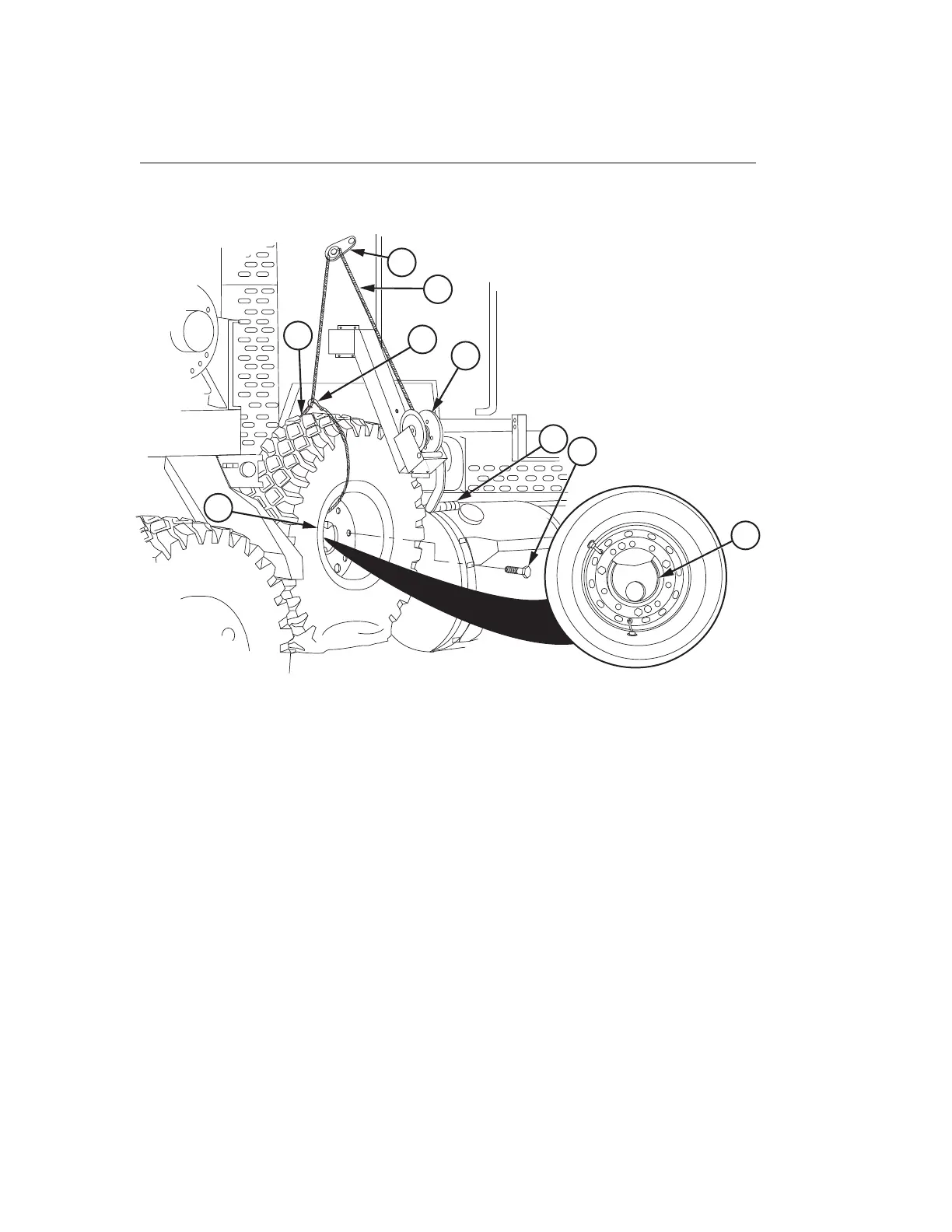

Figure 17.
5. Turn handcrank (5) to lower flat tire assembly (1) onto bracket (8).
6. With aid of assistant, install three screws (9) through wheel (4) and in bracket (8).
7. Remove hook (7) and cable (6) from flat tire assembly (1) and pulley (10).
8. Turn handcrank (5) to return cable (6) onto winch (11).
END OF TASK
TIRE DAVIT WINCH STOWAGE
1. Remove safety pin (1) from pin (2). Remove pin (2) from tire lift arm (3) and mount
(4).
TM 9-2320-360-10 0108
0108-22
