TIRE DAVIT WINCH STOWAGE - Continued
2
1
4
9
10
8
7
3
5
6
1
3
4
2

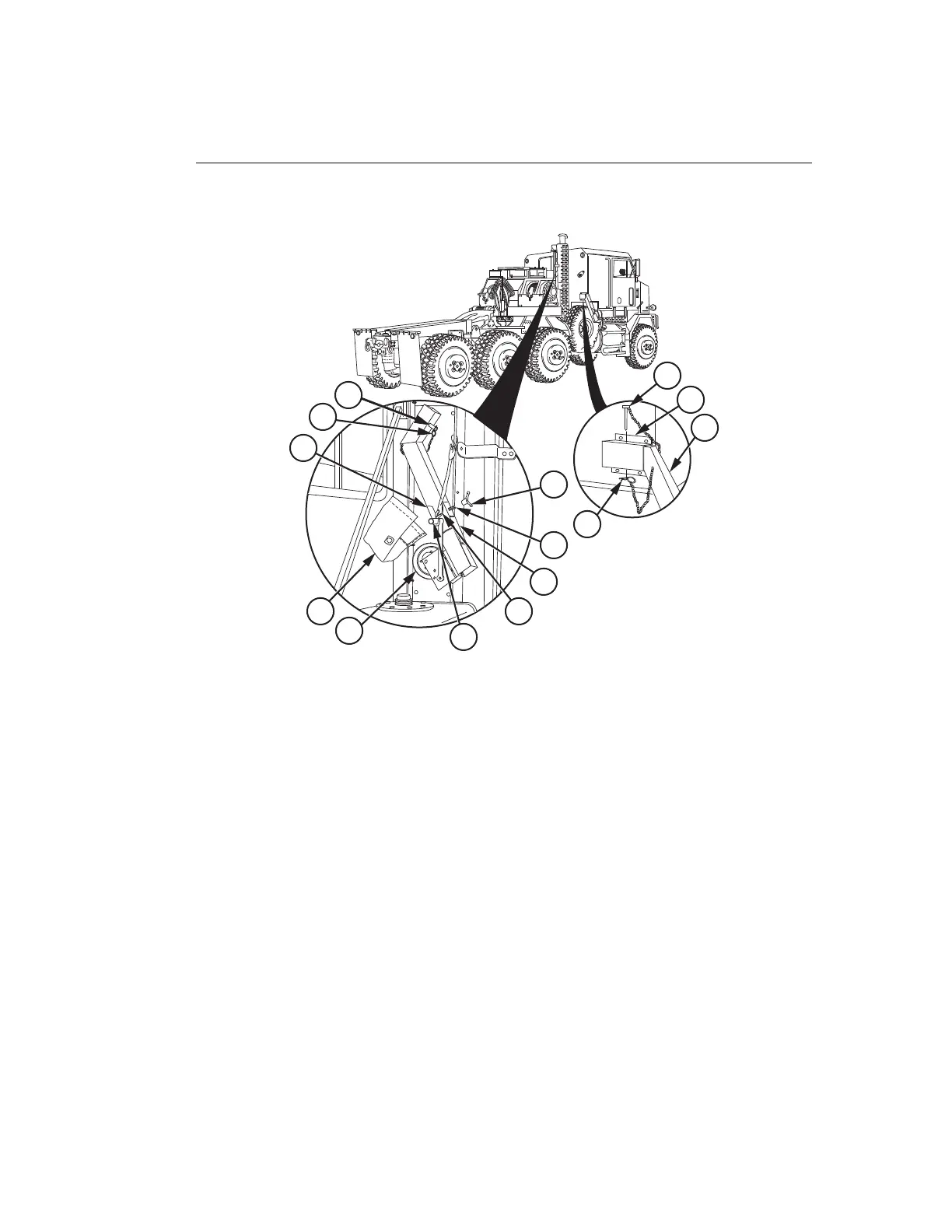

Figure 18.
2. Remove tire lift arm (3) from mount (4).
3. Install tire lift arm (3) on stud (5) with T-handle (6).
4. Install pin (2) in tire lift arm (3). Install safety pin (1) in pin (2).
5. Hook rubber strap (7) on handcrank (8).
6. Install boot (9) on winch (10).
END OF TASK
Follow-On Maintenance
1. Turn on CTIS. (WP 0028)
2. Turn emergency flashers off. (WP 0054)
3. Retrieve and stow emergency marker kit. (WP 0077)
4. Start engine. (WP 0037)
TM 9-2320-360-10 0108
0108-23
