Table 1. Location and Description of Major Components. - Continued
8
12
13
14
15
16
17
18
9
10
11

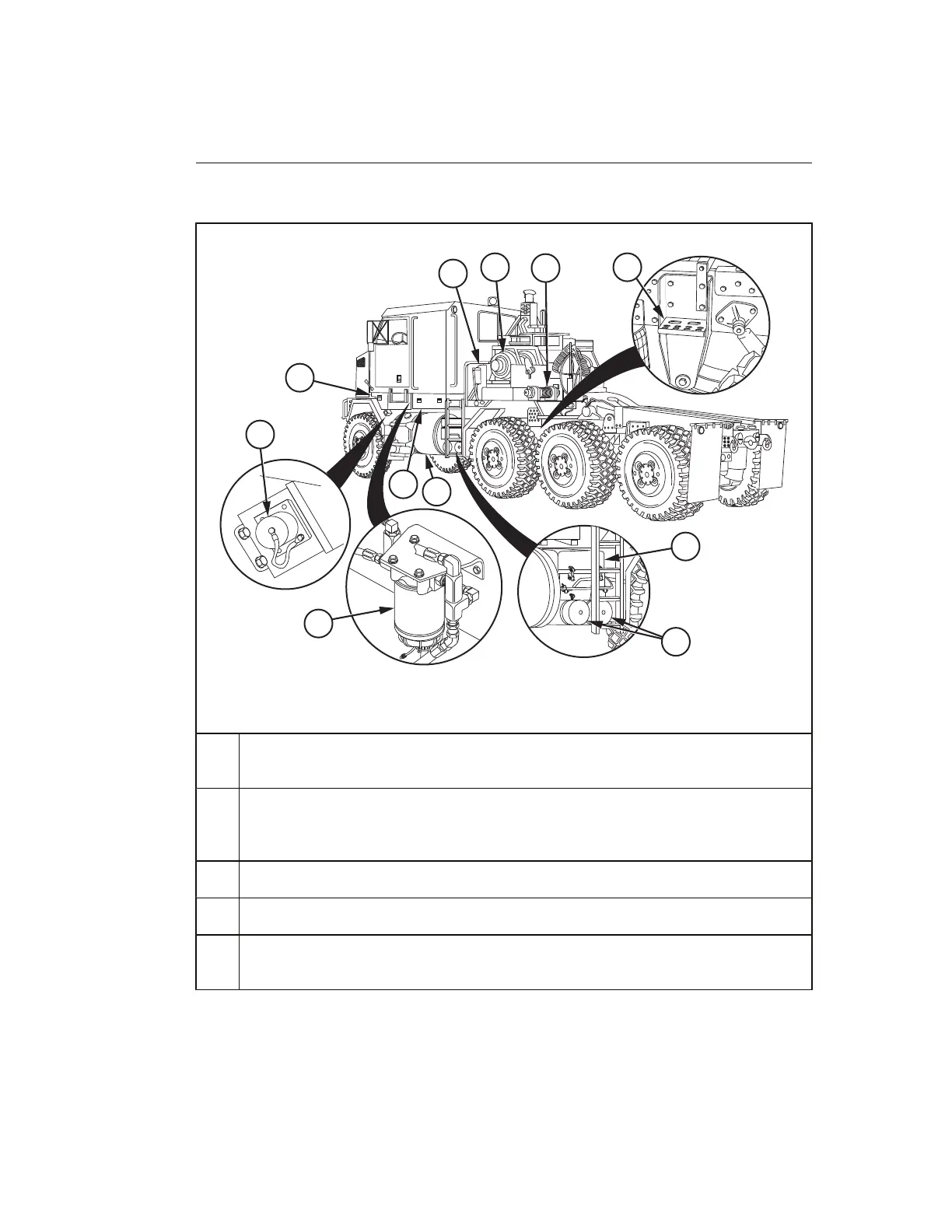

Figure 2.
8
HYDRAULIC OIL RESERVOIR. Stores, cools, and filters oil used to operate main
and auxiliary winches.
9
MAIN (RECOVERY) WINCHES.Two winches (WP 0010) (driver side shown) that
operate independently of each other used to recover, load, and unload heavy
tracked and wheeled vehicles.
10
AUXILIARY WINCH.Pulls the main winch cables out to payload. (WP 0010)
11
FIFTH WHEEL ACCESS STEP. Allows safe access to fifth wheel access platform.
12
BATTERY BOX. Contains four batteries and protects them from inclement weather.
Pulls out for easier access to batteries. (WP 0112)
TM 9-2320-360-10 0004
0004-3
