Operating preset memory (PMEM)
The preset memory of a remote camera can be operated from the unit
The following settings that you have adjusted in advance can be stored
in preset memory
Pan/tilt positions
Zoom positions
Focus positions
Lens iris settings (manual iris only)
White balance settings
Gain
If the MEM ENABLE button indicator is off, preset memory
operation is not possible Press the button to turn on its indicator
and then perform operation
Preset numbers PMEM 1 to 10 are also used as start positions
when recalling tracing memory Preset data may be overwritten
by tracing memory operation
The number of preset memory that can be registered differs
depending on the remote camera
For details, check the Operating Instructions for the
corresponding model
The white balance setting and gain are registered to only the
preset memory of AW‑HE50, AW‑HE60, and AW‑HE120
The white balance setting that is registered is that which results
from application of manual R/B gain adjustment to the automatic
white balance adjustment
When the preset memory is recalled, the same color tones as at
the time of registration are reproduced but the R/B gain values
become 0

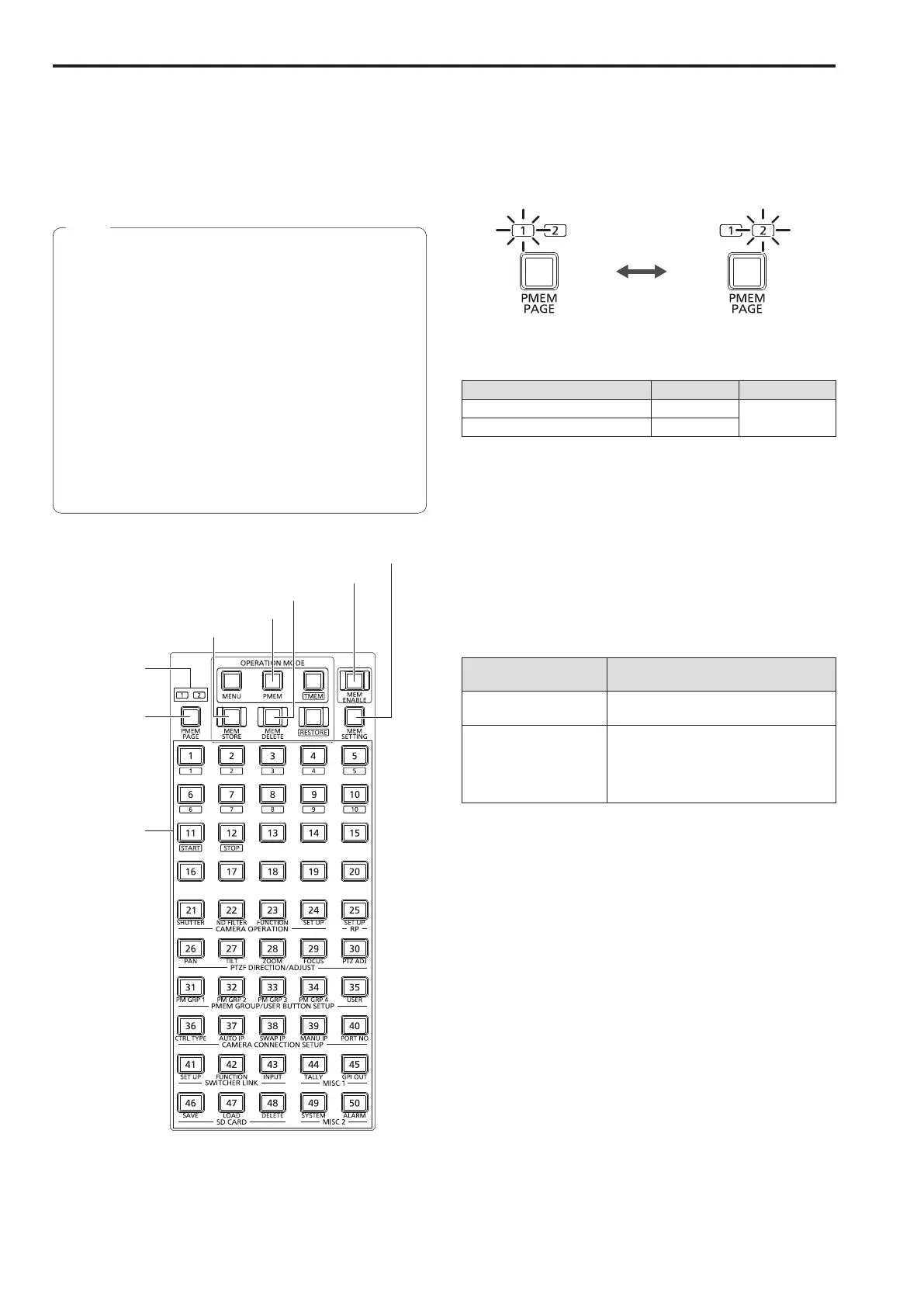

Notes
PMEM button
Number buttons
[1] to [50]
PMEM PAGE
button
PMEM PAGE
indicators
MEM SETTING button
MEM DELETE button
MEM STORE button
MEM ENABLE button
Changing pages
Press one of the number buttons [1] to [50] to directly select any of the
50 preset memory
Furthermore, pressing the PMEM PAGE button to change pages allows
you to operate up to 100 preset memory for each camera
Press the PMEM
PAGE button
Page 1 selected Page 2 selected
Button indicator on Button indicator on
<Preset numbers and registered pages>
Preset number Page number Number button
PMEM 1 to PMEM 50 Page 1
[1] to [50]
PMEM 51 to PMEM 100 Page 2
Example: When specifying preset number “PMEM 51”
1 Press the PMEM PAGE button to select Page 2
2 Press number button [1]
Lighting of number button indicators
The lighting method of the number buttons differs depending on the
remote camera or pan‑tilt head that the unit is controlling
<Lighting method of number button indicators>
Remote cameras and
pan‑tilt heads
Lighting method of number button
indicators
AW‑HE50, AW‑HE60,
AW‑HE120
The indicators of the number buttons with
preset memory registered turn on
AW‑HE100, AW‑PH360,
AW‑PH405, AW‑PH650,
AW‑PH400
The indicator of the number button that
was last pressed turns on
However, when preset memory is deleted
in DELETE mode, all of the number
buttons turn off
