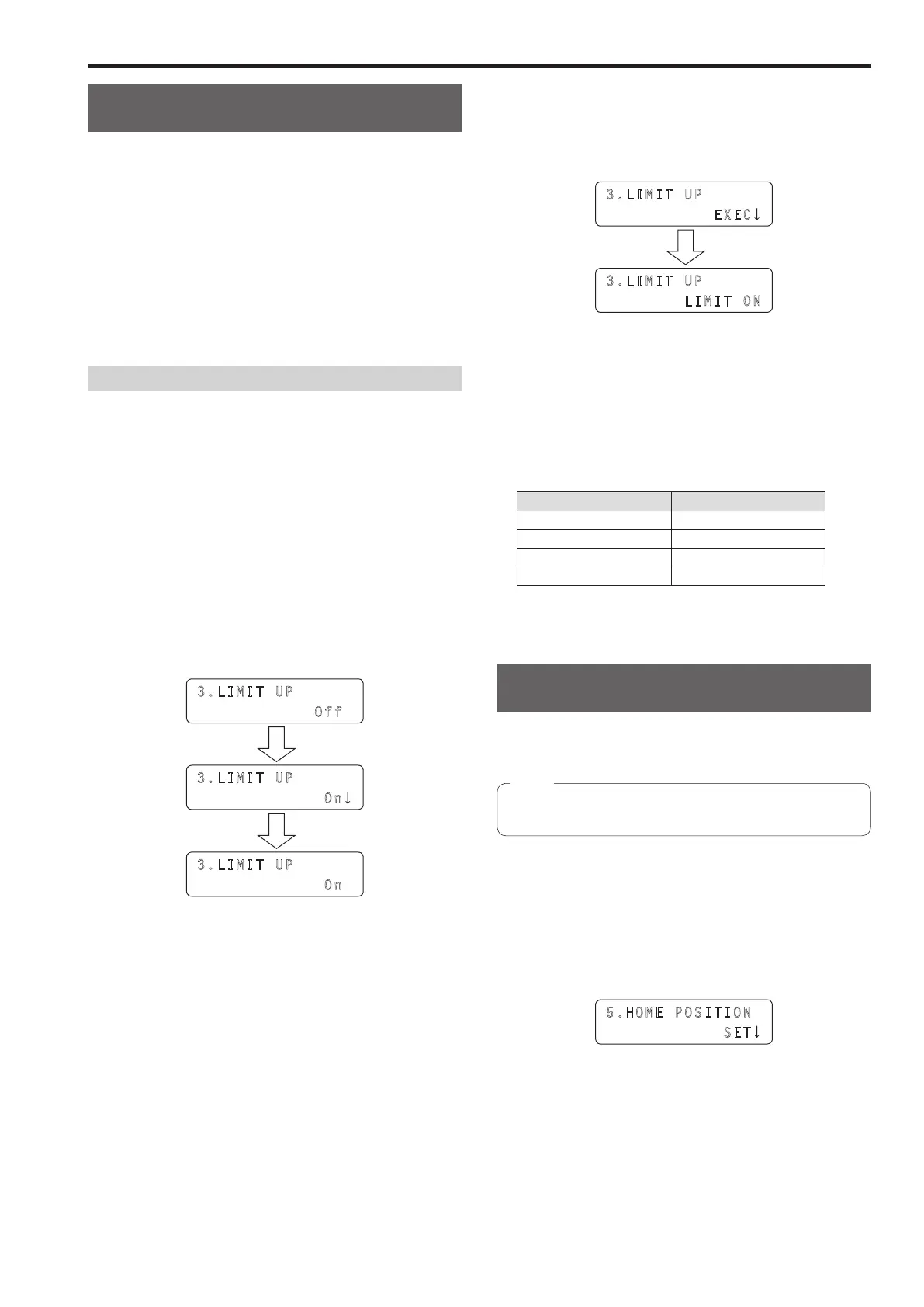

Setting the movement ranges (limiter
function) of a remote camera
Depending on the installation location, there may be an obstruction in
a movement range of a remote camera, and the remote camera may
come into contact with that obstruction when the pan or tilt operation is
performed
A malfunction or accident may occur if the remote camera comes into
contact with the obstruction so you need to set a limiter in front of the
obstruction to prevent contact
Also set a limiter if there is a subject you do not wish to shoot in a
movement range
From the unit, you can configure the remote camera limiter setting for
the direction of each of the up, down, left, and right limits
Setting procedure
1 Press the MENU button
2 Open PTZ ADJUST menu [30]
3 Turn the F1 dial to display the “3 LIMIT UP” item

When AW‑HE50, AW‑HE60, or AW‑HE120:
4 Turn the F2 dial to select “On”, and then press the F2
dial to confirm the selection
The position in the up direction of the currently selected remote
camera is set as the up limit and the limiter is enabled
(The setting is stored in the remote camera)
3.LIMI T UP
Off
3.LIMI T UP
On
3.LIMI T UP
On
Turn the F2 dial
Press the F2 dial
 Turning the F2 dial to display “Off↓” and then pressing the F2 dial
to confirm the selection cancels the limiter

When other remote camera
4 Press the F2 dial to confirm the setting
The position in the up direction of the currently selected remote
camera is set as the up limit and the limiter is enabled
(The setting is stored in the remote camera)
3.LIMI T UP
EXEC
3.LIMI T UP
LIMIT ON
Press the F2 dial
 If the F2 dial is turned or the F1 dial is turned to display another
item and then the “3 LIMIT UP” item is redisplayed, “EXEC↓”
reappears on the second line of the LCD panel
If the F2 dial is pressed at this time, “LIMIT OFF” is displayed and
the limiter is canceled
5 Turn the F1 dial to display the “4 LIMIT DOWN”,
“5 LIMIT LEFT”, or “6 LIMIT RIGHT” item
Perform the same operation as step 4 to set the down limit, left limit,
and right limit
Menu item Setting target
LIMIT UP Up limit
LIMIT DOWN Down limit
LIMIT LEFT Left limit
LIMIT RIGHT Right limit
Returning a remote cameras to its home
position
Move a remote camera to the home position stored in advance on the
camera
 The position stored as the home position on the remote camera
cannot be changed
Note
1 Press the MENU button
2 Open CAMERA SETUP menu [24]
3 Turn the F1 dial to display the “5 HOME POSITION”
item
5.HOME POSITION
SET
4 Press the F2 dial
The remote camera moves to its home position
