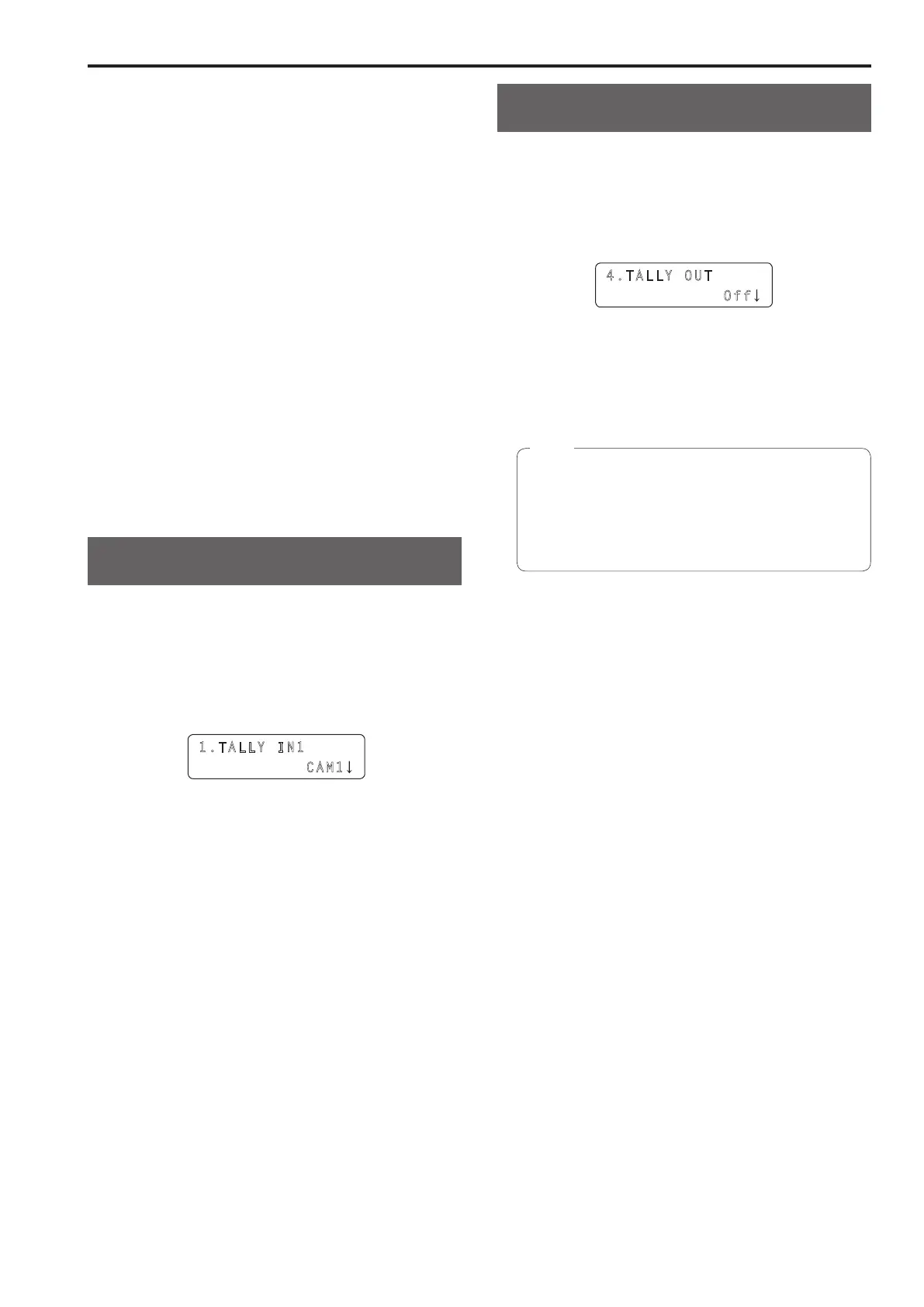

Tally settings
The unit can receive the tally information of the switcher and other
external devices from the TALLY/GPI connector (TALLY input) on the
rear panel and two network lines
To enable turning on the camera status indicators on the unit and
the tally lamps on the remote cameras based on the received tally
information, you need to configure the following settings

Registering the camera numbers that will correspond
to the TALLY inputs
Setting is required to use TALLY IN1 to TALLY IN10 signals from the
TALLY/GPI connector (TALLY input) on the rear panel
Refer to the relevant explanation in this section

Registering the camera numbers that will correspond
to the image inputs of the switcher
Setting is required to use tally information received via the network
Refer to “Setting linking with a switcher” (page 31)

Setting the sending of tally information from the unit
to remote cameras
Refer to the relevant explanation in this section

Settings on remote cameras
Setting is required on the remote camera to enable turning on the
tally lamp
Refer to the Operating Instructions for the corresponding model
Registering the camera numbers that will
correspond to the TALLY inputs
1 Press the MENU button
2 Open TALLY menu [44]
3 Turn the F1 dial to select the TALLY input connector
number
1.TALL Y IN1
CAM1
Input connector number : Select form TALLY IN1 to TALLY IN10
4 Turn the F2 dial to select the corresponding camera
number, and then press the F2 dial to confirm the
selection
Camera number : Select from CAM1 to CAM100
Setting the sending of tally information from
the unit to remote cameras
1 Press the MENU button
2 Open CAMERA SETUP menu [24]
3 Turn the F1 dial to display the “4 TALLY OUT” item
4.TALL Y OUT
Off
4 Turn the F2 dial to select “On” or “Off”, and then press
the F2 dial to confirm the selection
On : Sends tally information to remote cameras
Off : Does not send tally information to remote cameras
 When multiple remote camera controllers (this unit or
AW‑RP50) are connected to one remote camera, the tally
information sent by each remote camera controller may not
match and the tally lamp on the remote camera may not light
correctly In cases like this, set this setting to “On” on one of
the remote camera controllers and “Off” on the other remote
camera controllers
