Panasonic AWRP120

18
Operating tracing memory (TMEM)
The unit incorporates tracing memory (TMEM) for recording a series of
operations that were performed for a connected remote camera
This feature allows you to duplicate the recorded operations of a remote
camera
<Tracing memory>
Recording target Camera numbers CAM1 to CAM10
Functions that
can be recorded
Pan, tilt, zoom, focus, iris, and white balance
mode
Recording time Up to 5 minutes per camera
Number of
recording
memory
Up to 10 per camera
Record buttons Number buttons [1] to [10]
 If the MEM ENABLE button indicator is off, tracing memory
operation is not possible Perform operation while the button
indicator is on
 Preset numbers PMEM 1 to 10 of the preset memory are used
as start positions at the time of recalling tracing memory so they
are overwritten when the tracing memory registration operation is
performed
 The last point when tracing memory is recalled may not match
that at the time of recording because of the error of movement of
the remote camera
Taking precautions such as the following can help reduce the
error
• Use the lens zoom at the WIDE side (wide‑angle end)
• Perform pan, tilt, zoom, and focus operations slowly
• Set a short recording time
Execute tracing memory recalling several times to sufficiently
check the operation of the remote camera before you begin
operation
Notes

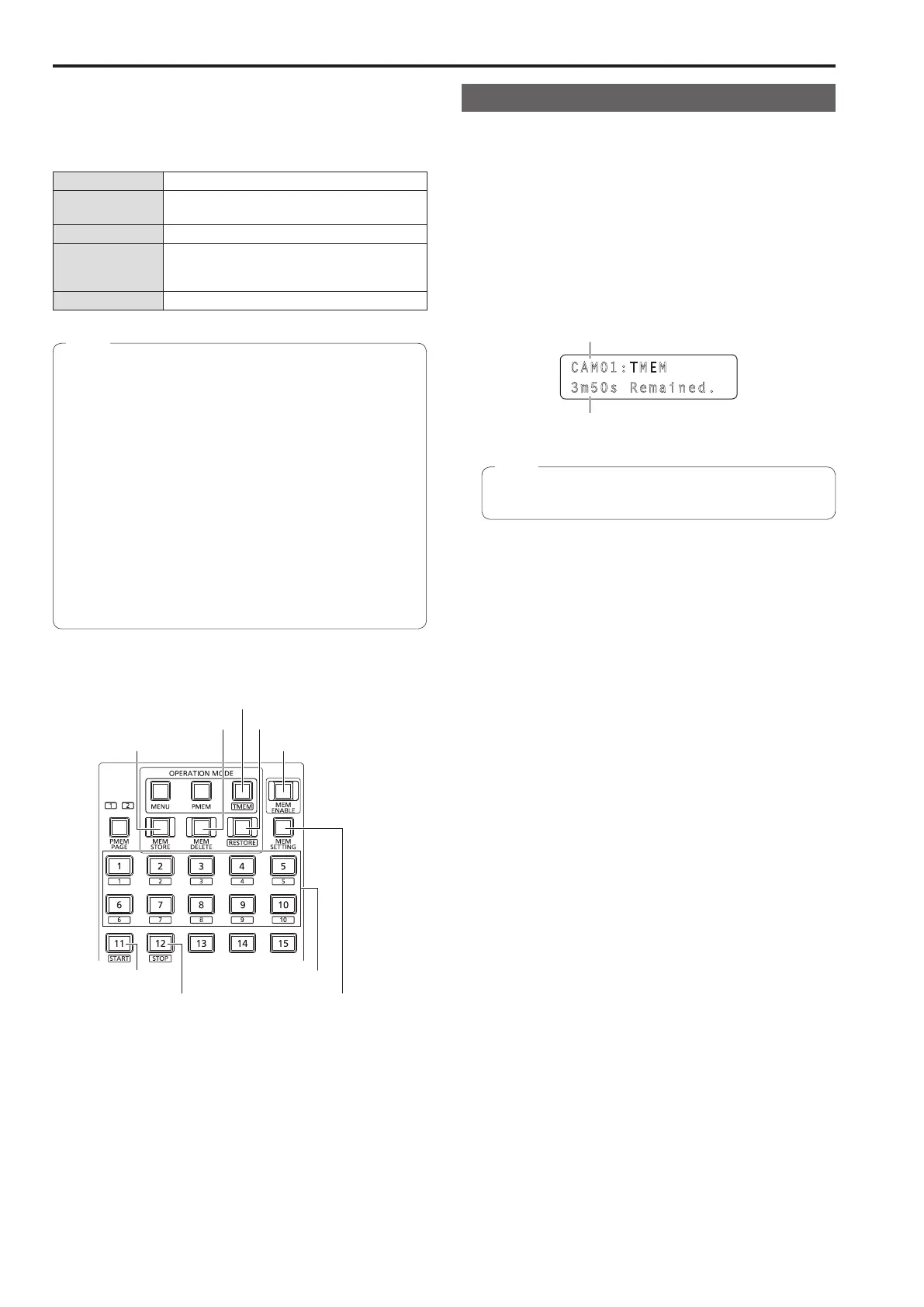

<Tracing memory operation section>
TMEM button
Number buttons [1] to [10]START button [11]
STOP button [12] MEM SETTING button
MEM DELETE button RESTORE button
MEM STORE button MEM ENABLE button
Registering tracing memory (STORE)
1 Press one of the camera selection buttons
[CAMERA SELECT/GROUP SELECT] to select the
remote camera to be operated
2 Output the images to be shot to the monitor
3 Press the TMEM button to turn on its indicator
The tracing memory status appears
The indicators of number buttons with registered tracing memory
turn on
CAM01: TMEM
3m50s Remained.
Selected camera number
Remaining possible recording time (max 5 m 00 s)
 A button with no tracing memory registered does not turn on
even when it is a button with preset memory registered
Note
4 Press the MEM STORE button to turn on its indicator
5 Operate the PAN/TILT lever and ZOOM button to
determine the camera angle to register
If necessary, adjust the focus, iris, and white balance as well
 To record the focus operation and iris operation to tracing memory,
press the auto focus button and auto iris button to turn off their
indicators and then perform the operations
