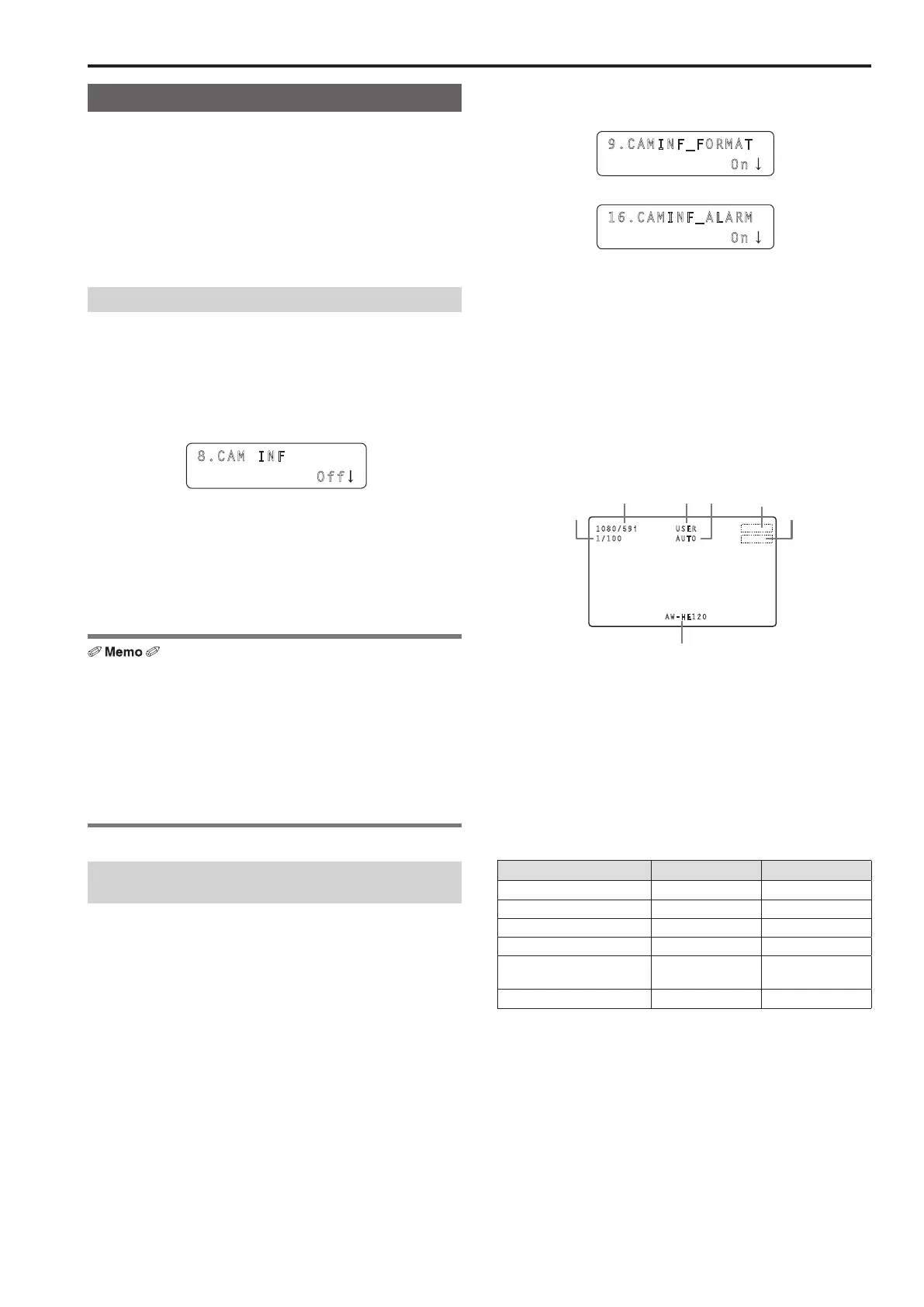

CAM INF function
You can display the remote camera setting information acquired by the
unit on the switcher AUX bus output images or multi view images
The setting information for the remote cameras included in the
selected camera group is displayed
The setting information for a remote camera connected via a serial
connection is displayed only when the camera is selected with a
camera selection button [CAMERA SELECT/GROUP SELECT]
Enabling or disabling the CAM INF function
1 Press the MENU button
2 Open SW FUNCTION menu [42]
3 Turn the F1 dial to display the “8 CAM INF” item
8.CAM INF
Off
4 Turn the F2 dial to select “On” or “Off”, and then press
the F2 dial to confirm the selection
On : Enables the CAM INF view function
Off : Disables the CAM INF view function
Enabling and disabling the CAM INF function can be assigned to a
USER button
Open USER BUTTON menu [35], display one of the “1 USER1”
to “8 USER8” items, and set “CAMINF”
When the USER button with “CAMINF” assigned is pressed, the
operation is as follows
Button indicator on : Enables the CAM INF function
Button indicator off : Disables the CAM INF function
Selecting the remote camera setting information to
superimpose on the images output from the switcher
1 Press the MENU button
2 Open SW FUNCTION menu [42]
3 Turn the F1 dial to display any of the “9 CAMINF_
FORMAT” to “16 CAMINF_ALARM” items
9.CAMI NF_FORMAT
On
16.CAM INF_ALARM
On
～
9 CAMINF_FORMAT :
1
Video format
(This is left blank when the video
format of the remote camera cannot be
recognized)
10 CAMINF_CNAME :
2
Remote camera name
11 CAMINF_SCENE :
3
Shooting mode
12 CAMINF_GAIN :
4
Gain value
13 CAMINF_SHUTER :
5
Shutter information (ON/OFF, shutter
value)
14 CAMINF_IRIS :
6
Iris value
15 CAMINF_FILTER :
7
Filter information
16 CAMINF_ALARM :
8
Remote camera alarm information
108 0/59i USER
1/1 00 AUTO
A W-HE1 20
4 For each of the items, turn the F2 dial to select “On”
or “Off”, and then press the F2 dial to confirm the
selection
On : Enables display on the switcher
Off : Disables display on the switcher
CAMINF_IRIS and CAMINF_FILTER may not be displayed depending
on the remote camera (Refer to the following table)
CAMINF_IRIS CAMINF_FILTER
AW‑HE120 ― √
AW‑HE60, AW‑HE50 ― ―
AW‑HE100 √ ―
AW‑HE870 √ ―
AW‑E860, AW‑E750,
AW‑E650, AW‑E350
― ―
AK‑HC1500, AK‑HC1800 √ √
√: Displayed ―: Not displayed
Setting the functions for when the unit is linked with the switcher (continued)
