Setting unit numbers with the setting switch
The unit number setting switch is located underneath the cover on the left side of the FPΣ control unit.
By setting the selector switch and the dial, a unit number between 1 and 31 can be set.

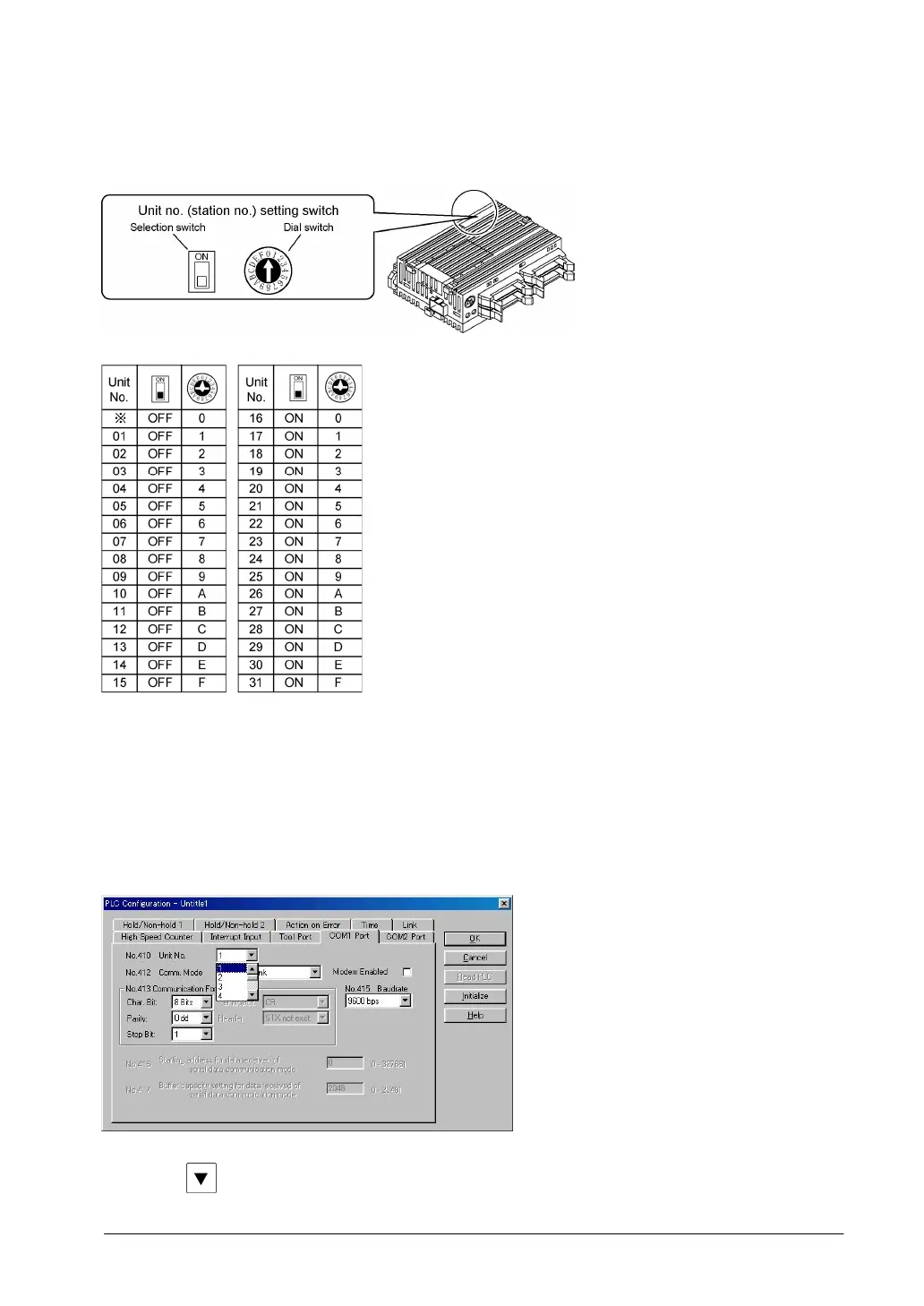

Table of switch settings and related unit numbers
• A unit number between 1 and 31 can be set.
• Set the unit number setting switch to “0” to make
the system register valid.
• The same unit number is given to the COM1 port
and COM2 port when using the unit number
setting switch. (Use the system register setting to
set the unit number individually for the COM1 port
and COM2 port.)
Setting unit numbers with the system register
A unit number between 1 and 99 can be set with the system register.
Setting the unit number setting switch to 0 makes the system register settings valid.
To set unit numbers with the FPWIN GR programming software:
Select “Options” in the menu bar, and then select “PLC Configuration”. Double-click “COM Port”. There
are separate settings for COM1 and COM2 .
Dialog box of PLC system register setting
No. 410 (for COM1 port), No. 411 (for COM2 port) unit number settings
Click on
,
and select a unit number from 1 to 99.
Note) With a C-NET adapter, a maximum of 32 units (stations) can be specified.
