Panasonic FP7 Series User Manual

Items
Description
AFP7CCRS1 AFP7CCRS2 AFP7CCRM1 AFP7CCRM2 AFP7CCRS1M1
(Note 5)(Note 6)
Baud rate 300, 600,1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400 bit/s
Communication
method
Half-duplex transmission
(Note 7)
Synchronous
method
Start stop synchronous system
Communication
format
Data length: 7 bits / 8 bits, stop bit: 1 bit / 2 bits, parity: Yes / No (Odd / Even) Start code:
Without STX / With STX, end code: CR / CR + LF / None / ETX
Data
transmission
order
Transmits from bit 0 character by character.
Communication
functions and No.
of units that can
be connected
PLC link: Max. 16 units
MEWTOCOL-COM (master/slave), MEWTOCOL7-COM (slave): Max. 99 units
MODBUS RTU (master/slave): Max. 99 units
General-purpose communication: Max. 99 units
Modem initialization
(Note 1) By switching on the dip switch on the cassette, you can use the unit as 5-wire 1-channel RS-232C.
(Note 2) By switching on the dip switch on the cassette, you can switch between RS-422 and RS-485.
(Note 3) When connecting a commercially available device that has an RS-485/RS-422 interface, please
confirm operation using the actual device. In some cases, the number of units, transmission distance,
and baud rate vary depending on the connected device.
(Note 4) When communication is performed at a baud rate of 38400 bit/s or higher, use a cable not longer than
3 m. When wiring RS-232C, a shielded wire must be used to increase noise suppression.

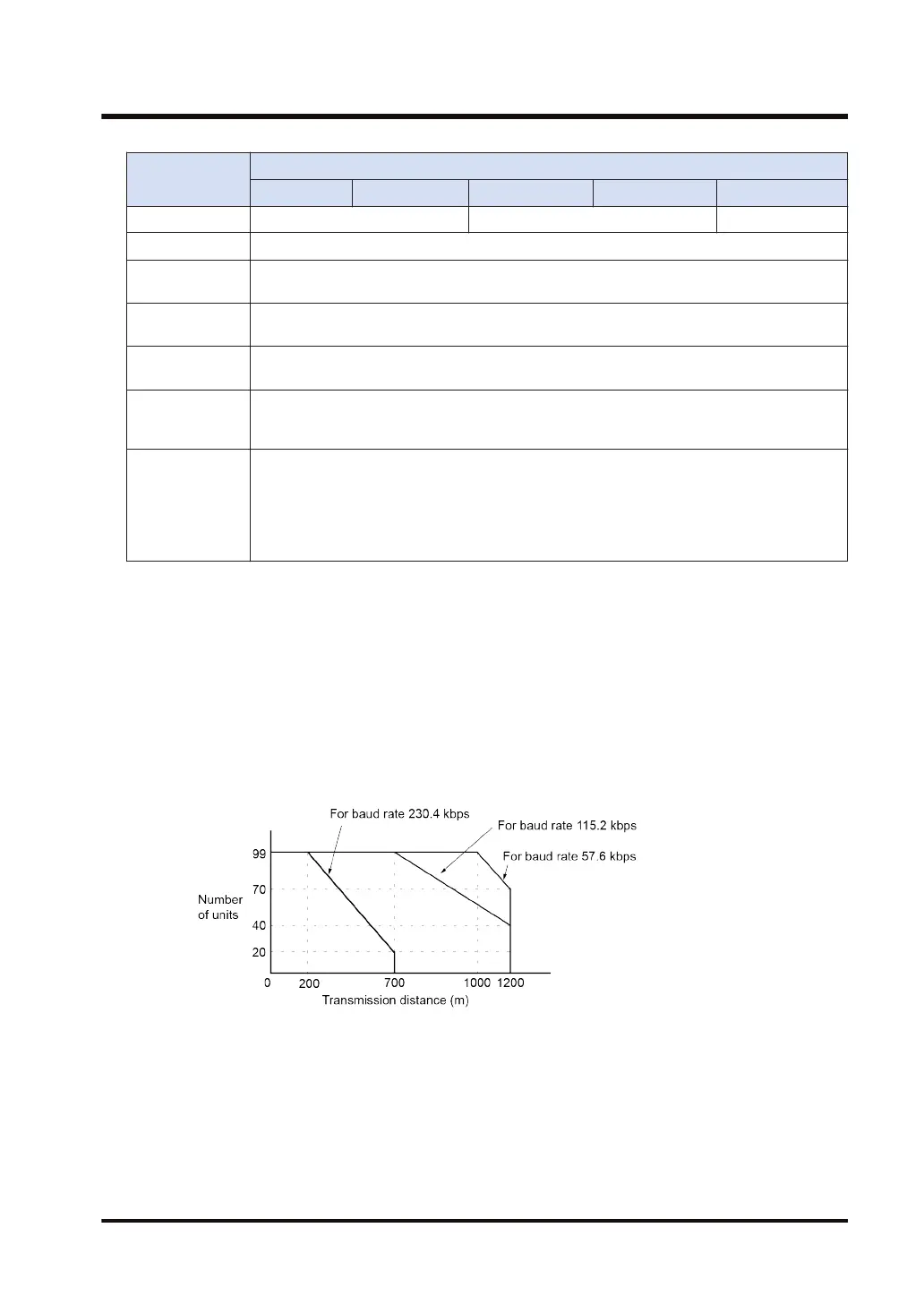

(Note 5) The transmission distance is limited by the specified baud rate and No. of connected units in the
RS-485 setting. When using a baud rate of 38400 bps or less, the allowable settings are a maximum
of 1200 m and 99 units. When a C-NET adapter is mixed, the maximum number of connected units is
32, and the baud rate is limited to 19200 bps or less.
(Note 6) The converter SI-35 manufactured by Lineeye Co., Ltd is recommended for the RS-485 at the
computer side.
(Note 7) In general-purpose communication, RS-232C and RS-422 use full-duplex transmission.
11.1 Communication Function Specifications
WUME-FP7COM-07 11-3
