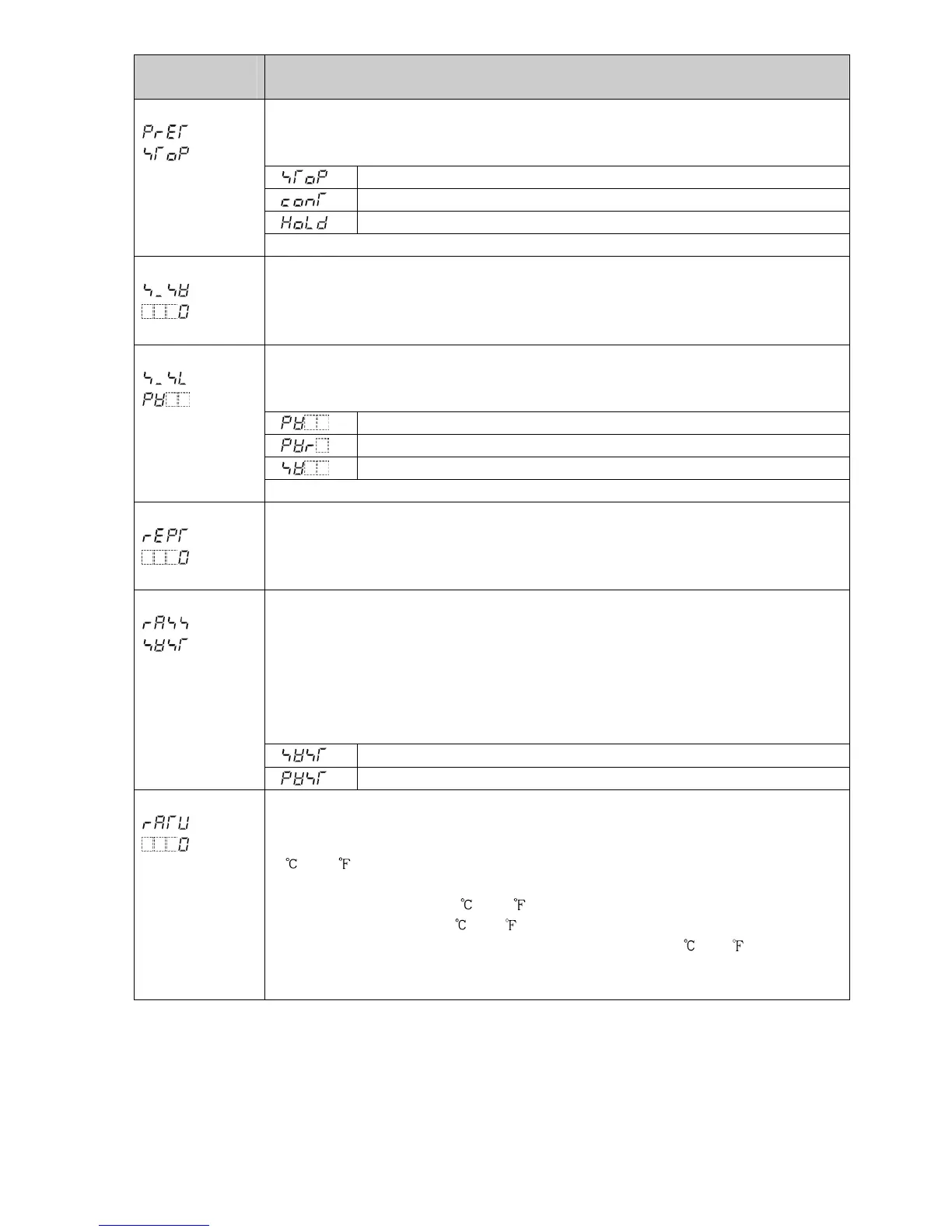

Characters,
Factory Default
Setting Item, Function, Setting Range
Power restore action
• Selects the program status if a power failure occurs mid-program and it is restored.
• Selection item:
Stops after power is restored.
Continues (resumes) after power is restored.
Suspends (on hold) after power is restored.
[75]
Available only when Program control is selected in [OUT/OFF key function].
[76] Program start temperature
• Sets the step temperature when Program control starts.
• Setting range: Scaling low limit value to Scaling high limit value (*1)
Available only when Program control is selected in [OUT/OFF key function].
Program control start type
• Selects the Program control start type.
• Selection item:
PV start
PVR start
SV start
[77]
Available only when Program control is selected in [OUT/OFF key function].
[78] Number of repetitions
• Sets the number of repetitions for Program control.
• Setting range: 0 to 10000 times
Available only when Program control is selected in [OUT/OFF key function].
SV Rise/Fall rate start type
• When control output is turned from OFF to ON, or switched from Manual to
Automatic control, SV start or PV start can be selected for SV rise rate or fall rate
action.
• When power is turned ON, PV start is adopted for SV Rise/Fall rate action,
regardless of the selected type.
• Selection item:
SV start
[79]
PV start
[80] SV rise rate
• Sets SV rise rate (rising value for 1 minute).
When the SV is adjusted, it approaches the new SV by the preset rate-of-change
( /min, /min).
When the power is turned on, the control starts from the PV, and approaches the
SV by the rate-of-change ( /min, /min).
• Setting range: 0 to 10000 /min ( /min)
Thermocouple, RTD inputs with a decimal point: 0.0 to 1000.0 /min ( /min)
DC voltage, current inputs: 0 to 10000/min
Setting to 0 or 0.0 disables this function.
(*1) The placement of the decimal point follows the selection.
