Panasonic KV-S5046H - PAPER FEED SELECT SENSOR Board

215
13.11.2. Back Side
Magnification percentage:200 %

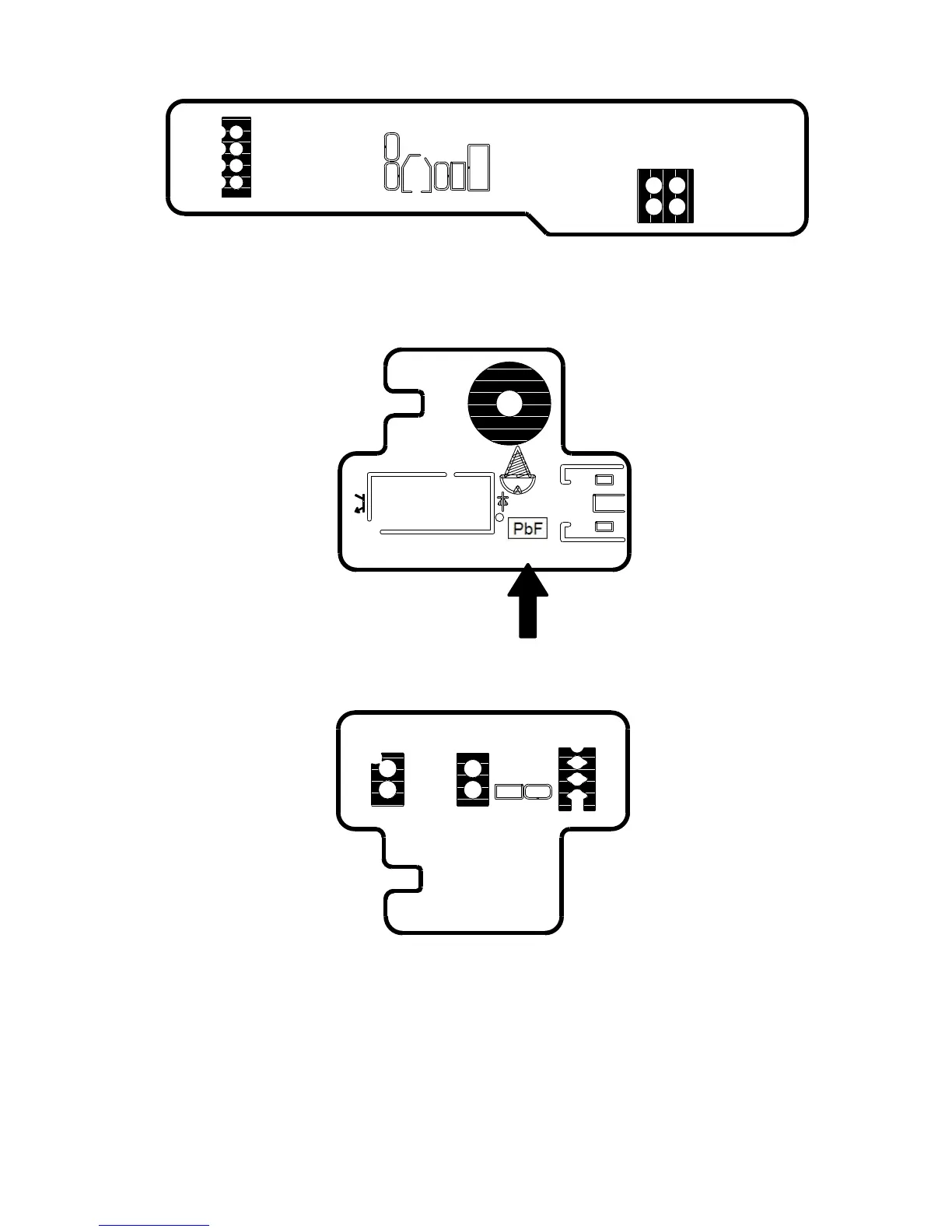

13.12. PAPER FEED SELECT SENSOR Board
13.12.1. Front Side
Magnification percentage:200 %
13.12.2. Back Side
Magnification percentage:200 %
E
14
C3002
C3003
C3013
Q3001
R3002
R3003
CN3003
PNLB2250
ZA-IG-b
PNLPS5076HSZA-C
3
1
PAPERFEED SELECTSENSOR
CN3004
IC3003
1
3
C3004
R3004
CN3004
IC3003
PNLB2250 ZA-IG-c
