To confi gure a channel, begin by selecting its function. The form will change as different functions are selected. When
each channel is done being edited, the Update must be clicked to send the data to the dash and to save the data locally
on the computer.

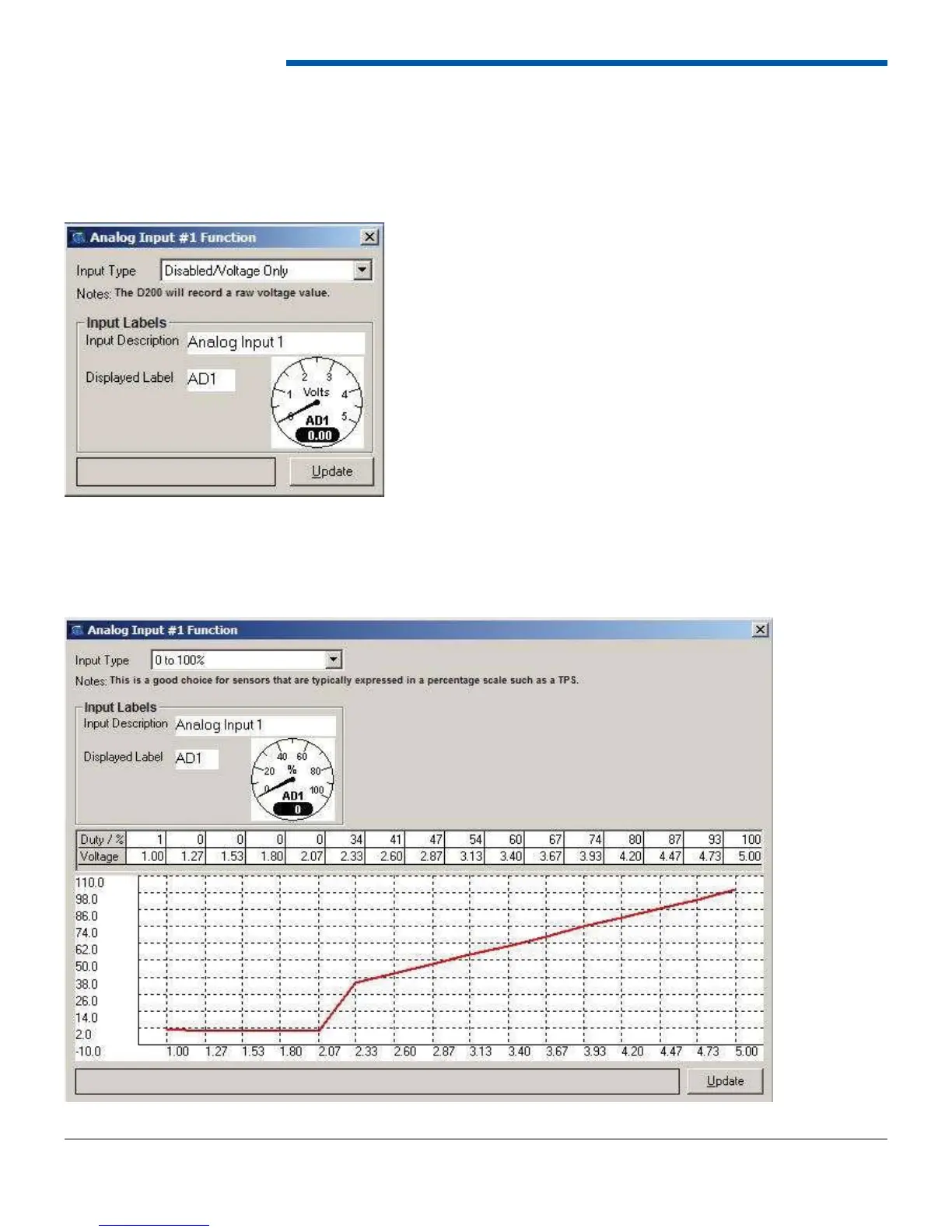

6.4.1 Disabled/Voltage Only Function
The Voltage Only function displays the input voltage to the channel. If a gauge is selected to monitor this channel it will
use the 0-5V gauge and the user’s label.
6.4.2 0-100% Function
