6.4.7 Position Function

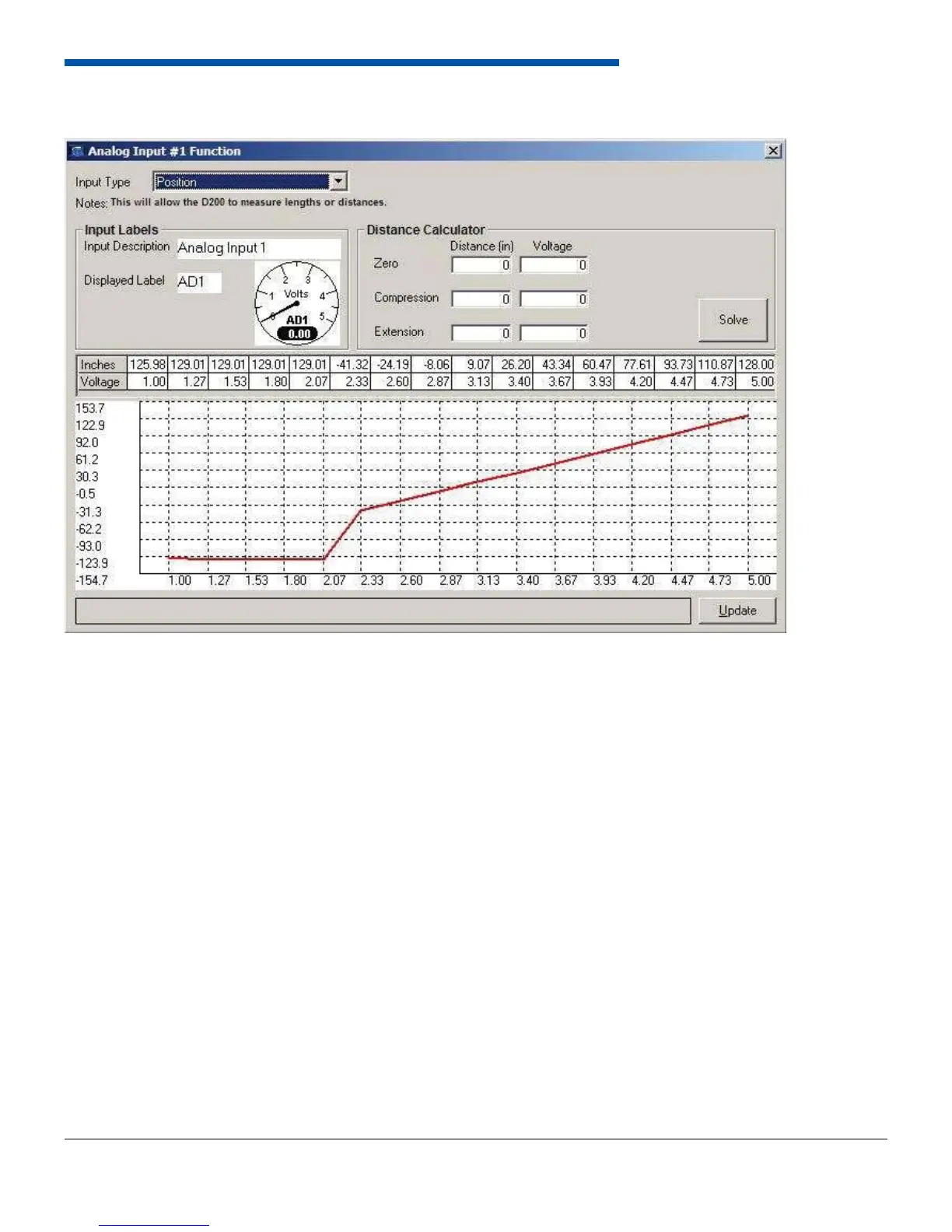

The Position function maps position to the input voltage using the 16-point table. Since this channel is typically used
for shock position, a shock position solver is included on the form. To use it, power on the dash with the shock position
sensors wired and the vehicle on level ground. On the dash, select On-Board I/O from the Main Menu. Enter the voltage
displayed for this particular channel in the Zero row voltage. Compress the shock a measurable distance. Record the
distance in the Compression row and record the voltage from the dash. Extend the shock a measurable distance, and
record the distance and the voltage in the Extension form. Click Solve. The graph and 16-point table will be fi lled in with
calculated values from the entered measurements. The distance will be displayed in inches or millimeters depending on
the units settings. If a gauge is selected, it will display the channel using the 0-5V gauge.
