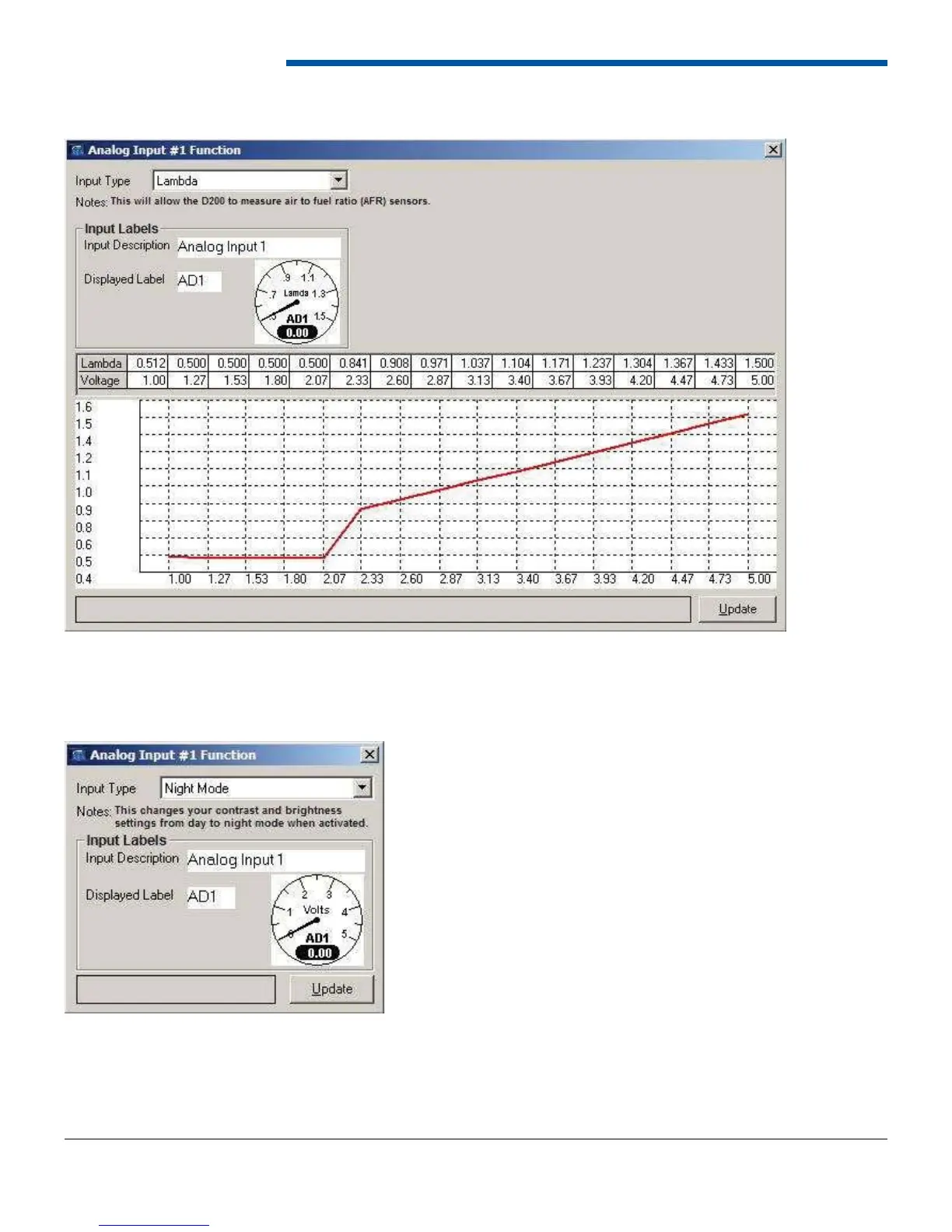

6.4.5 Lambda Function
The Lambda function allows the user to map a lambda or air/fuel ratio value to an input voltage using the 16-point table.
It will display the value in either lambda or air/fuel ratio depending on the units settings.
6.4.6 Night Mode Function
The Night Mode function is used to change the contrast and backlight settings from Daytime mode to Nighttime mode.
When the input is greater than 4.5V the dash will use the night time contrast and backlight settings. When the input is
below 4.5V the dash will use the daytime settings. If the channel is monitored, it will be displayed as voltage and use the
0-5V gauge.
