The Alarms function turns on the output when any of the selected alarms are true. Alarms are confi gured in the Basic
Settings section as described in Section 6.8.1.
6.7.6 Shock Control
The Shock Control function uses the output to control Koni electric drag racing shocks. Similar to the Koni controller,
the D200 has 4 different levels of shock fi rmness. Unlike the stock controller, the D200 provides 16 different stages to
determine the desired shock level. For more information regarding shock control, refer to the Shock Controller Manual.
6.7.7 3D Boost Control
The 3D Boost Control function specifi es a target boost based on any two inputs to the D200. Select 3D Boost Control from
the function list. Select the two parameters to base target boost off of in the X and Z axis. The table view tab is used to
enter the target boost. For more information refer to the Boost Control Manual. 6.8 Basic Features
6.8 Basic Features
The Basic Features group includes basic setup information for alarms, logging, gear ratio, and the on-board clock.

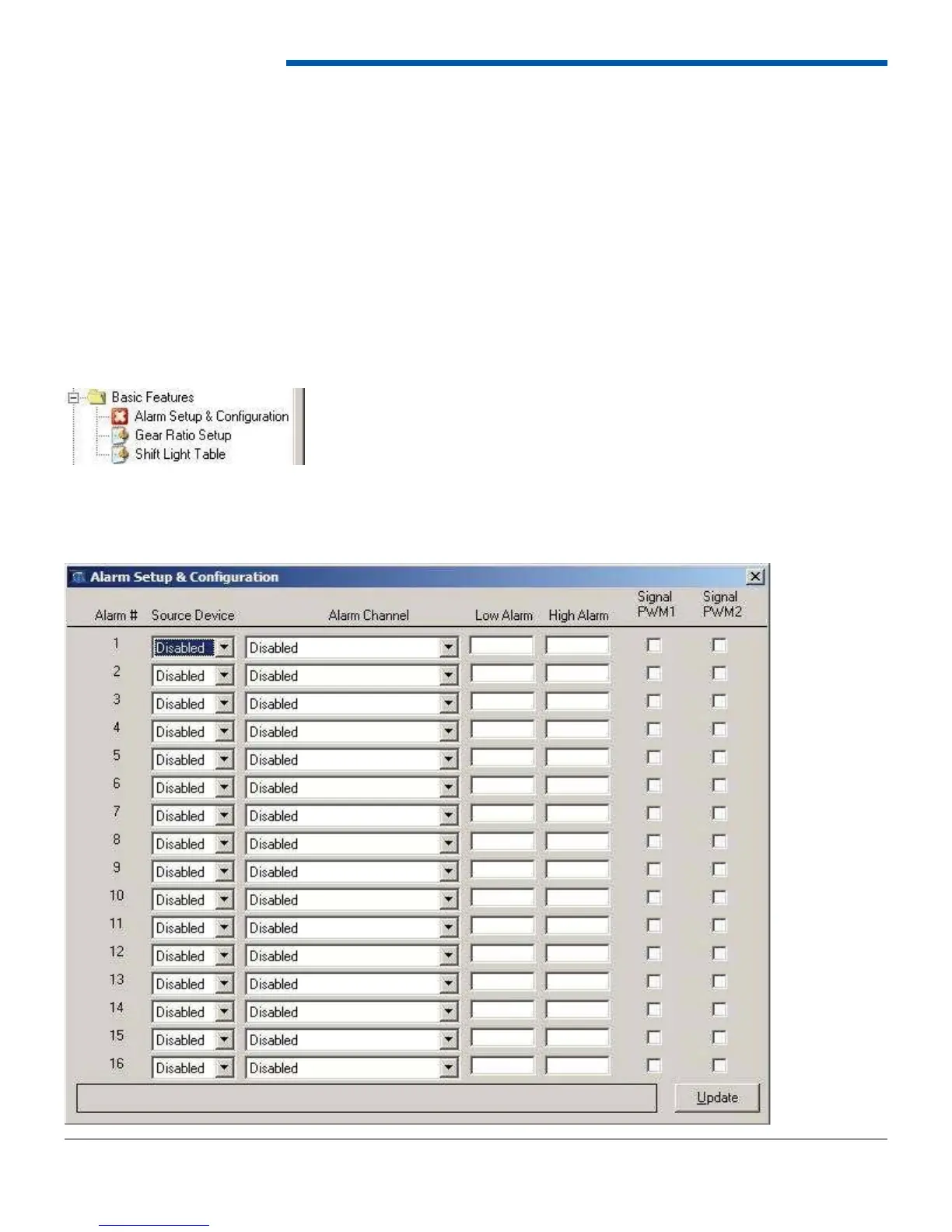

6.8.1 Alarm Setup and Confi guration
