SGM700 Digitizer
Configuration Menu -Eth- -continue-

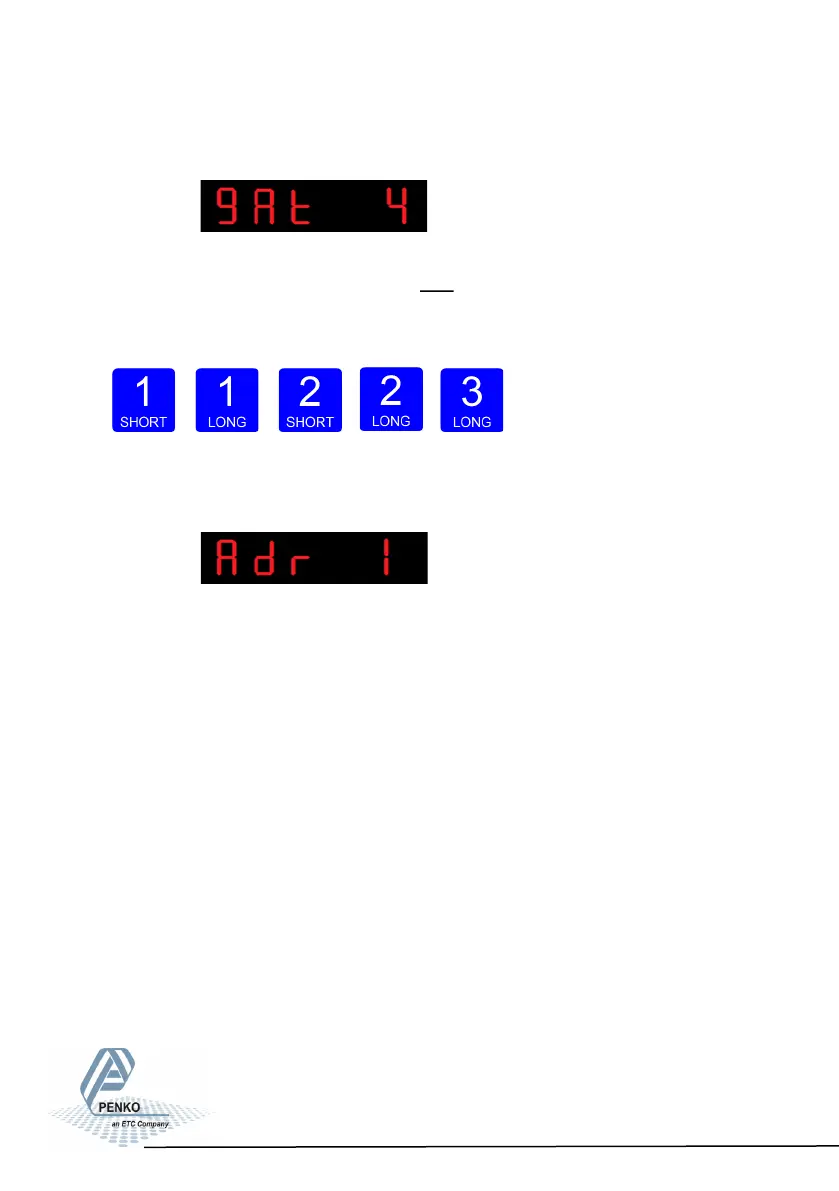

When confirmed the following screen will be visible:
In gAt 4 you set the fourth three numbers of the Gateway address you want to
give the SGM720 (example: 192.168.001.001). Use key 1 and key 2 to change
the number Key 1 is for changing the number (1-9), key 2 is for changing the po-
sition of the cursor. Confirm by pressing key 3 >2 sec.
Increase Decrease Left
Right Confirm
When confirmed the following screen will be visible:
Starting at firmware version 1.5.0.9.0.1 the PENKO ASCII protocol is available
over TCP at port 23.
46
