SGM700 Digitizer
Configuration Menu –232- -continue-

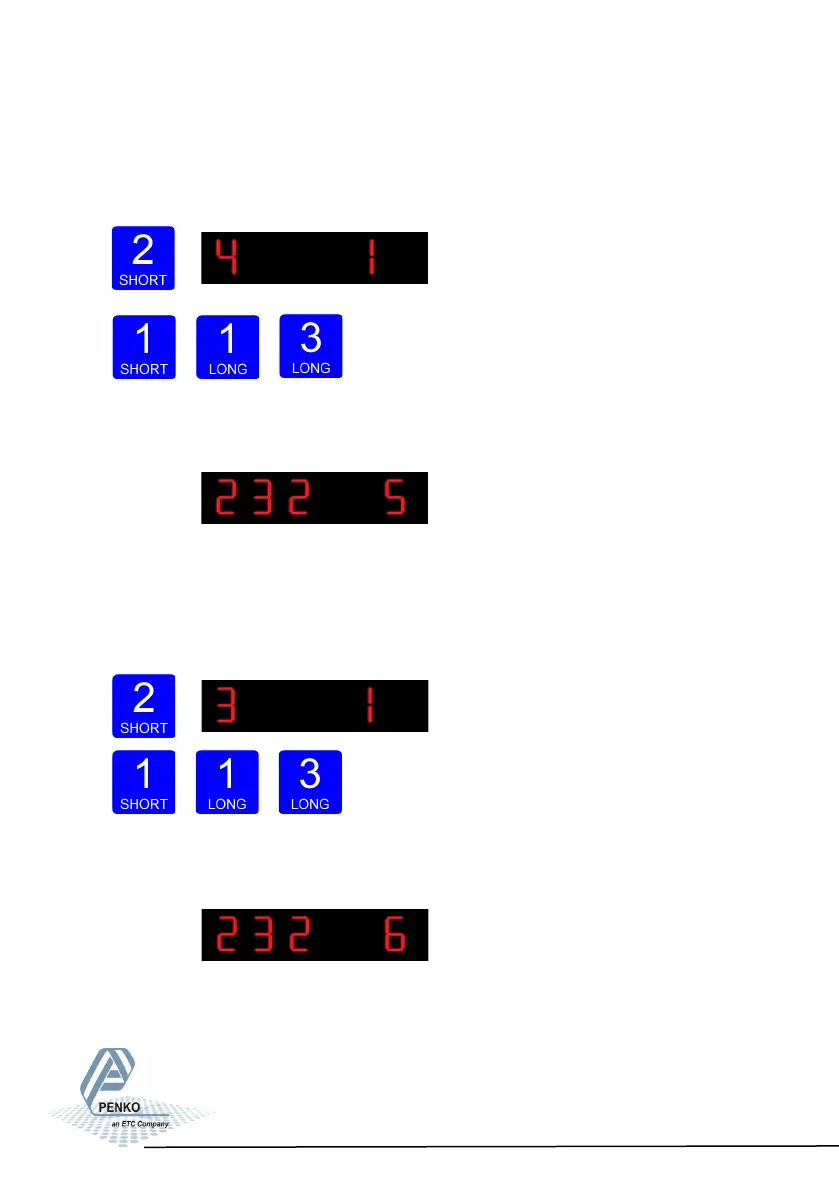

In 232 4 you set the RS232 Parity of the SGM750. Press key 2 <2 sec. to enter
232 4 Set the Parity using key 1 and key 2 confirm by pressing key 3 >2 sec.
(options are: 1= none, 2= odd, 3= even, 4= mark, 5=space).
Increase Decrease Confirm
When confirmd the following screen will be vissable:
In 232 5 you set the RS232 Baudrate of the SGM700. Press key 2 <2 sec. to en-
ter 232 5. Set the speed of the protocol by using key 1 and key 2 confirm by pres-
sing key 3 >2 sec. (options are: 1=1200, 2= 2400, 3= 4800, 4= 9600, 5= 19200,
6= 38400, 7= 57600, 8= 115200 kbps).
Increase Decrease Confirm
When confirmd the following screen will be vissable:
54
