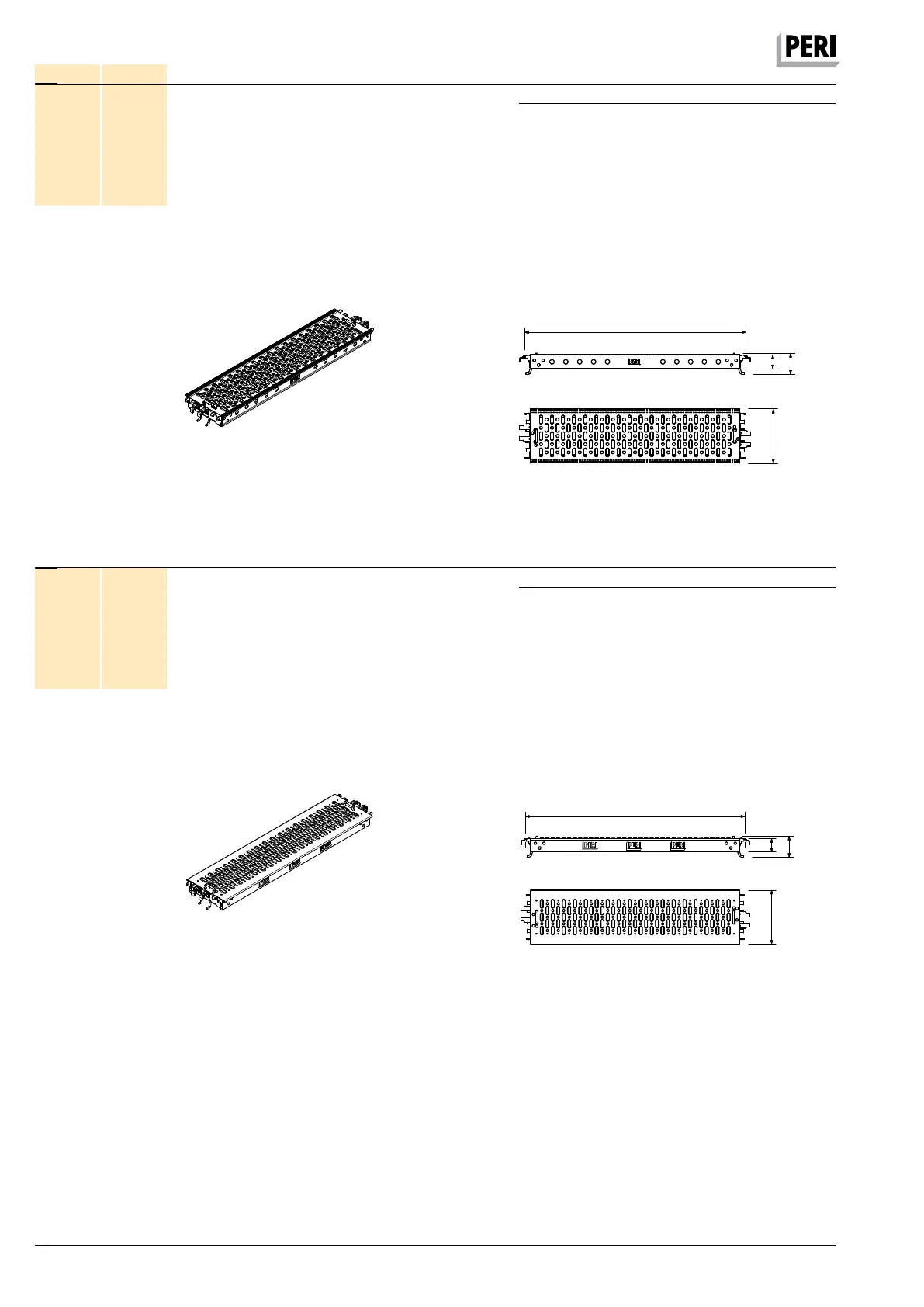

PERI UP Flex Reinforcement Scaffold 75 and 100
68
Item no. Weight kg
105925
106092
107002
108380
108540
108689
5.520
6.950
9.790
12.700
15.500
18.400
Industrial Decks UDI 25
Industrial Deck UDI 25 x 75
Industrial Deck UDI 25 x 100
Industrial Deck UDI 25 x 150
Industrial Deck UDI 25 x 200
Industrial Deck UDI 25 x 250
Industrial Deck UDI 25 x 300
Mounted on Ledger UH.
X perm. p [kN/m²] max. p [kN/m²]
750 6.0 40.0
1000 6.0 40.0
1500 6.0 19.6
2000 6.0 10.9
2500 4.5 6.9
3000 3.0 4.7
Note
perm. p according to DIN EN 12811-1.
max. p = < maximum possible load without
deflection limitation.
X
6
0
2
4
5
9
6
124121
124118
124112
124109
123771
124915
5.260
6.630
9.410
12.200
14.900
17.700
Steel Decks UDG 25
Steel Deck UDG 25 x 75
Steel Deck UDG 25 x 100
Steel Deck UDG 25 x 150
Steel Deck UDG 25 x 200
Steel Deck UDG 25 x 250
Steel Deck UDG 25 x 300
Mounted on Ledger UH.
X perm. p [kN/m²] max. p [kN/m²]
750 6.0 40.0
1000 6.0 40.0
1500 6.0 19.6
2000 6.0 10.9
2500 4.5 6.9
3000 3.0 4.7
Note
perm. p according to DIN EN 12811-1.
max. p = < maximum possible load without
deflection limitation.
65
96
245
X
