PERIUPFlex – 2
nd
generation
Supplement to the Instructions for Assembly and Use
PERIUPFlex – 2
nd
generation
StandardUVR StandardUVR-2
Tube RO 48.3mm x 3.2mm
RO 48.3mm x 2.7mm, embossed
points on the bottom standard.
Tube-pin connection 2 rows, with 5pinch points each 2rows, with 4pinch points each
Rosette 160mmx130mmx8mm 152mmx120mmx6mm
Hole for suspended scaffold
(see "PERI UP components")
1hole
perm. F up to 20kN when fixed 1x
2holes
perm. F up to 15kN when fixed 1x
perm. F up to 31kN when fixed 2x
Marking none striped band at the top and bottom
Combinability
Geometrically and statically* combinable in the system.
* The standard configurations in the Instructions for Assembly and Use only apply in
conjunction with HorizontalLedgersUHPlus / UH-2 and UHVPlus / UHV-2.
* The load tables shown in the Instructions for Assembly and Use for the Heavy-
Duty Prop HD and Shoring Tower Plus systems do not apply to use of the Standard
UVR-2. Check the statics beforehand!
As part of ongoing product optimisa-
tion, the following components have
been replaced by 2
nd
generation com-
ponents.
The following comparison tables de-
scribe the features of the 1
st
and 2
nd
generation.
1
st
and 2
nd
generation components can
be combined.
■ The previous components are no
longer available as new components.
■ The optimised components are avail-
able under a new article number.
■ There may be a difference between
the load-bearing capacity of the indi-
vidual components in the previous
version and the new version.

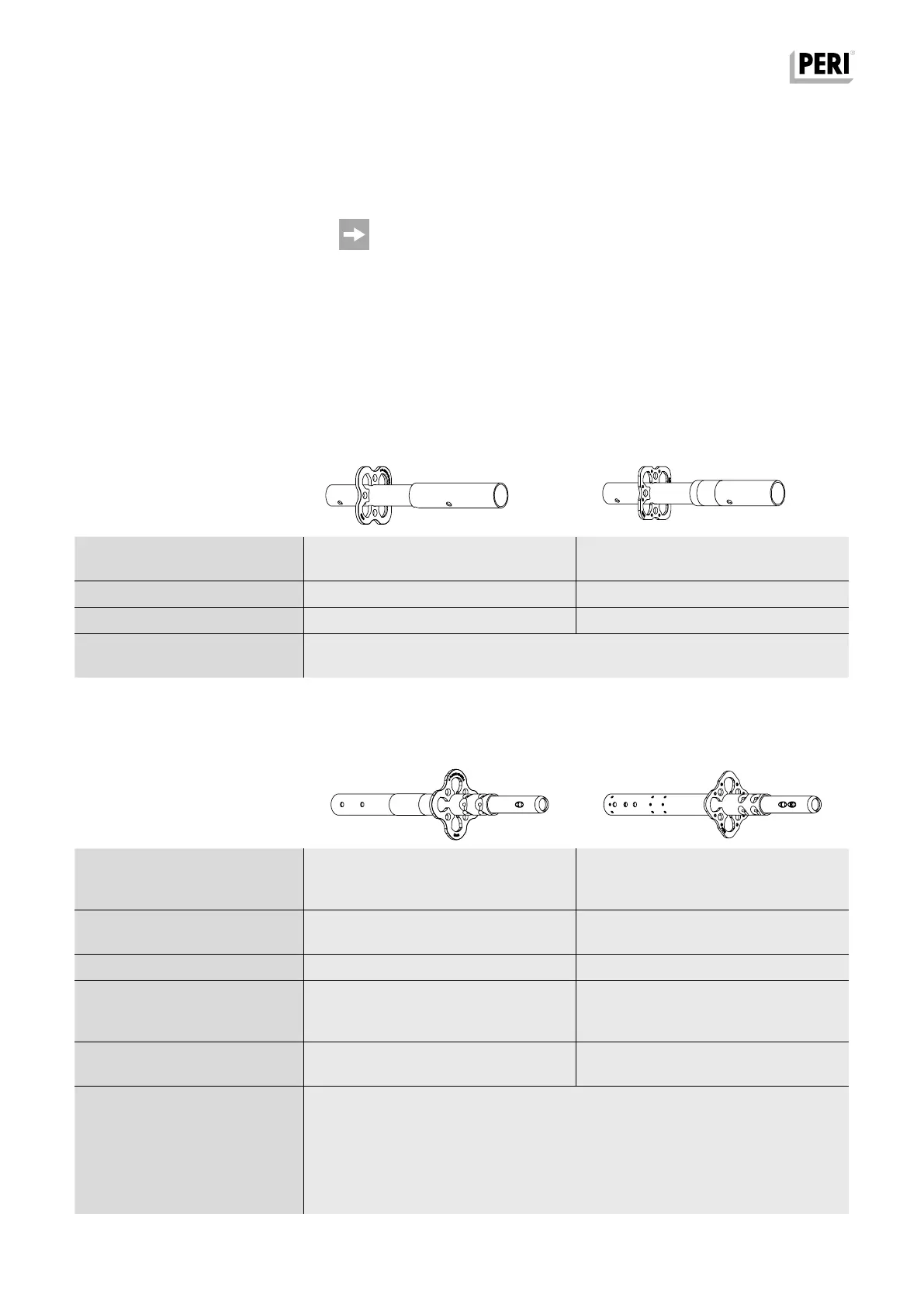

Comparison of components
BaseStandardUVB24/49 BaseStandardUVB25/50
Tube RO 48.3mm x 3.6mm RO 48.3mm x 3.6mm
Rosette 160mmx130mmx8mm 152mmx120mmx6mm
System height 24 / 49cm 25 / 50cm
Combinability Geometrically and statically combinable in the system.
