Supplement to the Instructions for Assembly and Use
PERIUPFlex – 2
nd
generation

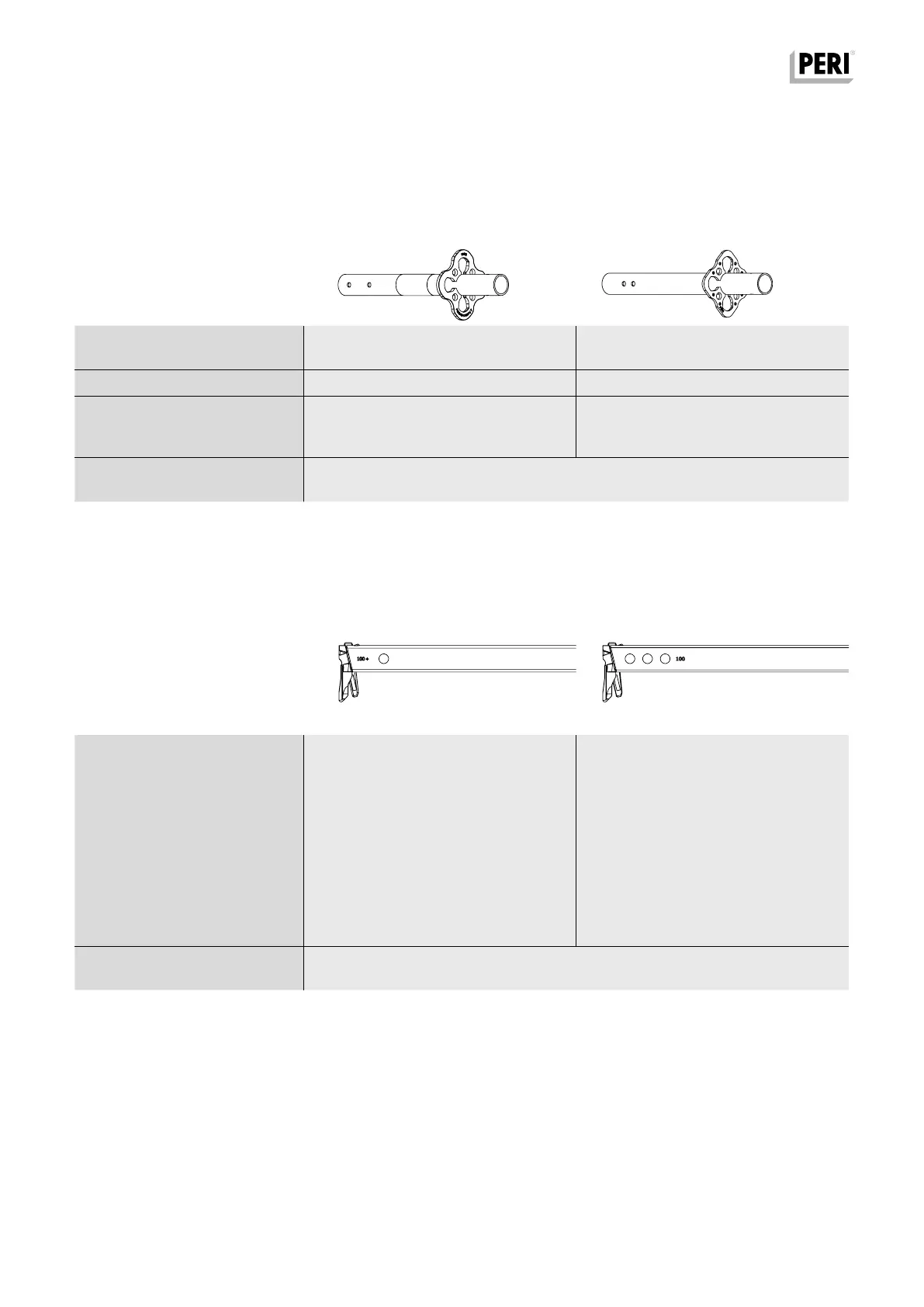

HorizontalLedgerUHPlus HorizontalLedgerUH-2
UBL assembly points
2 x 1, for assembly of a
LedgerBraceUBL
2 x 3, for assembly of up to three
LedgerBracesUBL
When installing only one ledger brace
preferably use the middle assembly
point.
LedgerBracesUBL can be mounted at
very flat installation angles using the
middle assembly point only. Check the
geometry beforehand!
Combinability Geometrically and statically combinable in the system.
TopStandardUVH TopStandardUVH-2
Tube RO 48.3mm x 3.2mm RO 48.3mm x 3.2mm
Rosette 160mmx130mmx8mm 152mmx120mmx6mm
Hole for suspended scaffold
(see "PERIUP components")
1hole
perm. F up to 20kN when fixed 1x
2holes
perm. F up to 15kN when fixed 1x
perm. F up to 31kN when fixed 2x
Combinability Geometrically and statically combinable in the system.
