III
PERIUPFlex – 2
nd
generation
Supplement to the Instructions for Assembly and Use
PERIUPFlex – 2
nd
generation

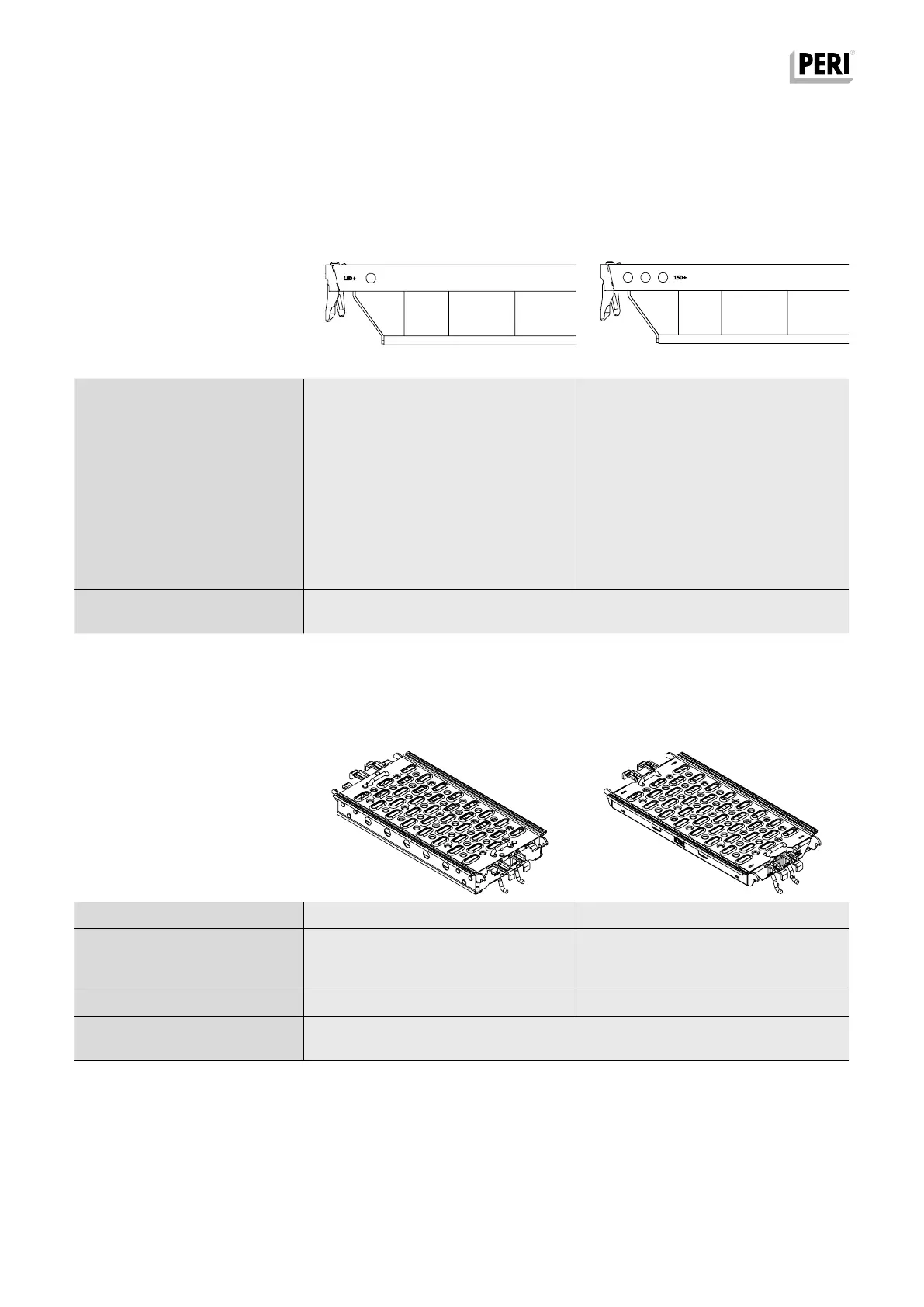

HorizontalLedgerUHVPlus HorizontalLedgerUHV-2
UBL assembly points
2 x 1, for assembly of a
LedgerBraceUBL
2 x 3, for assembly of up to three
LedgerBracesUBL
When installing only one ledger brace
preferably use the middle assembly
point.
LedgerBracesUBL can be mounted at
very flat installation angles using the
middle assembly point only. Check the
geometry beforehand!
Combinability Geometrically and statically combinable in the system.
SteelDeckUDG SteelDeckUDG-2
Deck assembly riveted and welded welded
Profile height 65mm, uniform
L 50 – 150: 45mm
L 200 – 250: 60mm
L 300 70mm
Marking without coloured clip on the front side
Combinability Geometrically and statically combinable in the system.
