Peri UP Flex - Page 79

IV
PERIUPFlex – 2
nd
generation
Supplement to the Instructions for Assembly and Use

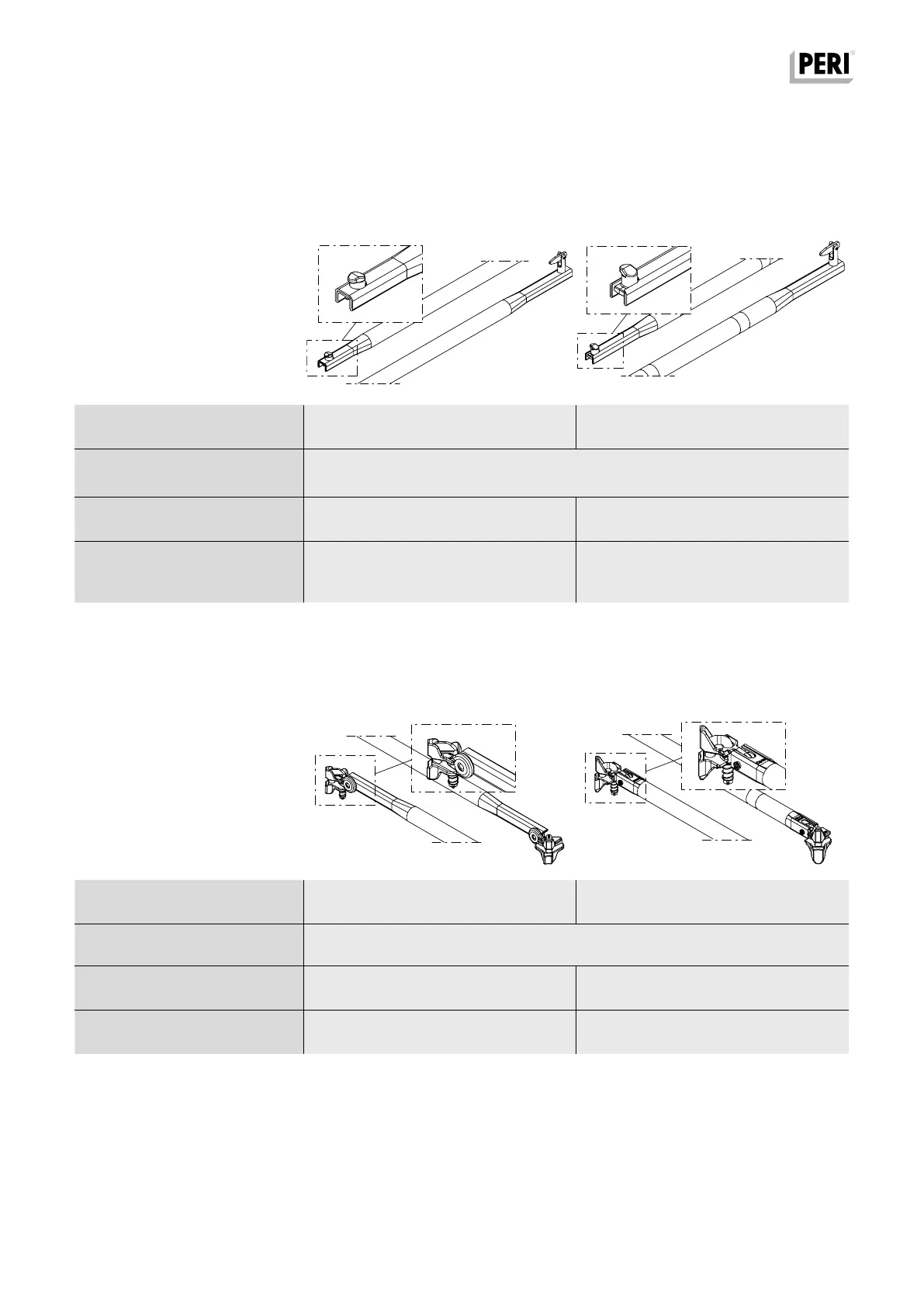

NodeBraceUBK NodeBraceUBK-2
Head piece connected to the
diagonal tube
riveted to crimped tube bolted to cast shaped component
Combinability Geometrically and statically combinable in the system.
Marking none Band at the top and bottom
Features Galvanised heads Yellow-coated heads
LedgerBraceUBL LedgerBraceUBL-2
UBLMountingLug points in the longitudinal direction points in the transverse direction
Combinability Geometrically and statically combinable in the system.
Marking none Band at the top and bottom
Handling Tilt in to install.
Swivel in to install (less lateral space
required for installation).
PERIUPFlex – 2
nd
generation
