Input
52
11 Input
The input mode contains the functions for displaying information, machine adjustment and
configuration and for supporting service and adjustment work.

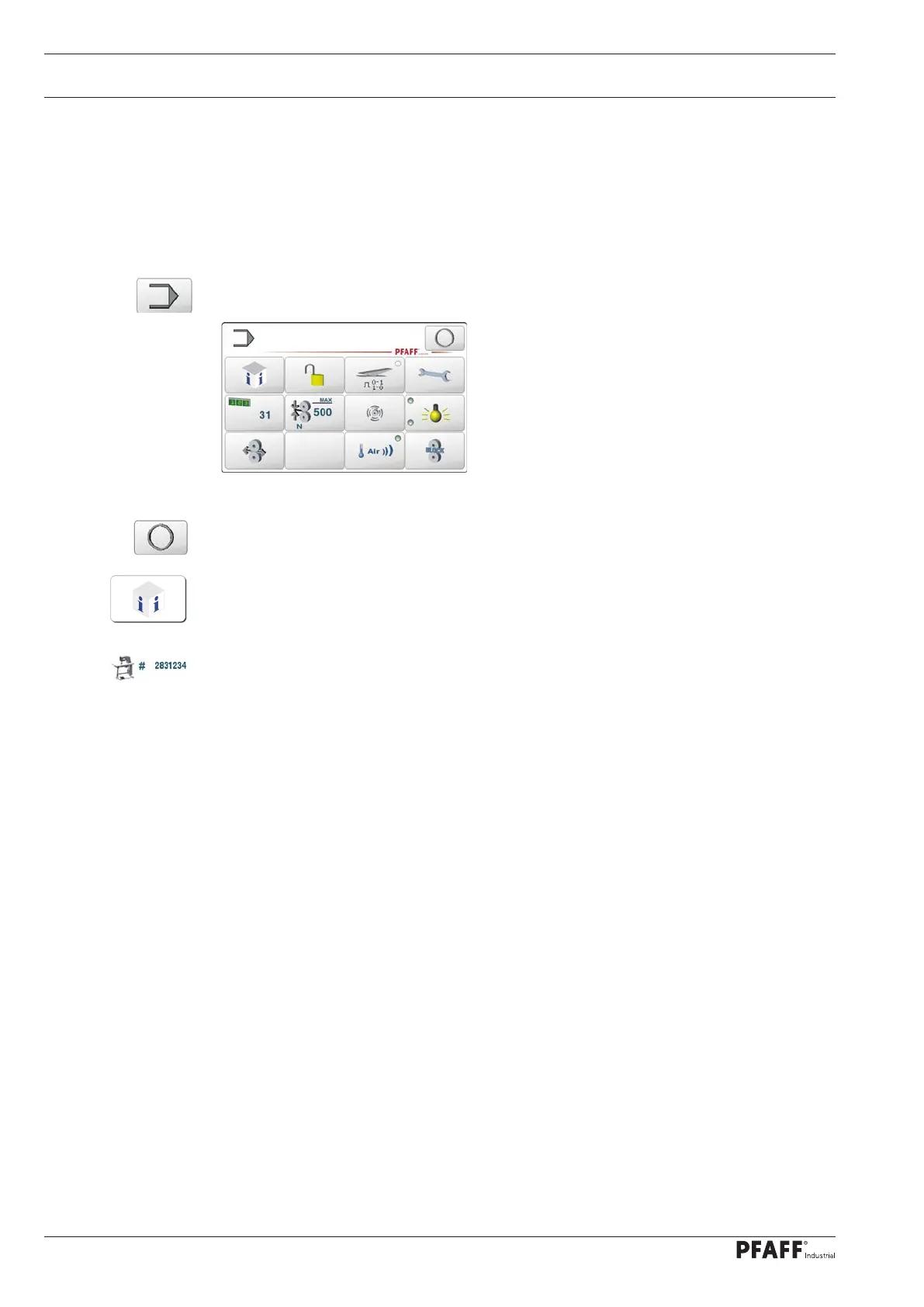

11.01 Overview of the functions in the input menu
O Switch the machine on.
O Call up the input menu.
Description of the functions
Sealing mode
This function is used to change to the sealing mode.
Info
You can switch to the information menu item by pressing the touch field. The following
information about the machine is displayed here:
Serial number of the machine
Software: 79-0011-0470/008 (Current machine software)
Display: 8311 V1.3-63 (Display is programmed for 8311 V1.3)
USgenerator: V400 #20000821(Ultrasonic generator software V400, serial number 20000821)
US_Amplitude: 49 – 52% (Range of the ultrasonic amplitude during the last welding seam)
US_Power: 18 – 37 W (Range of the ultrasonic power during the last welding seam)
Force: 152 – 162 N (Range of the measured welding force during the last welding seam)
Gap: -0.437 - -0397 mm (Range of the calculated gap during the last welding seam)
Distance: 587 - 982 (Range of the calculated distance during the last welding seam)
US diagnosis data (Data determined with a diagnosis function when the machine is
switched on - can be evaluated by the device manufacture)
ZP:
118 per thousand (Amplitude deviation with parallel resonance)
FP: 35149 Hz (Frequency with parallel resonance)
AS: 169 per thousand (Amplitude deviation at start frequency)
FL: 34912 Hz (Idling frequency)
PL: 46 W (Idling power)
US early detection (Measurements that are continuously determined during welding
operations and that should indicate a possible failure)
OPFREQ: 34927 Hz (Operating frequency)
RIPPLE: 2 per thousand (Amplitude deviation during operation)
To Next Page
