Maintenance and Care
83
2
12

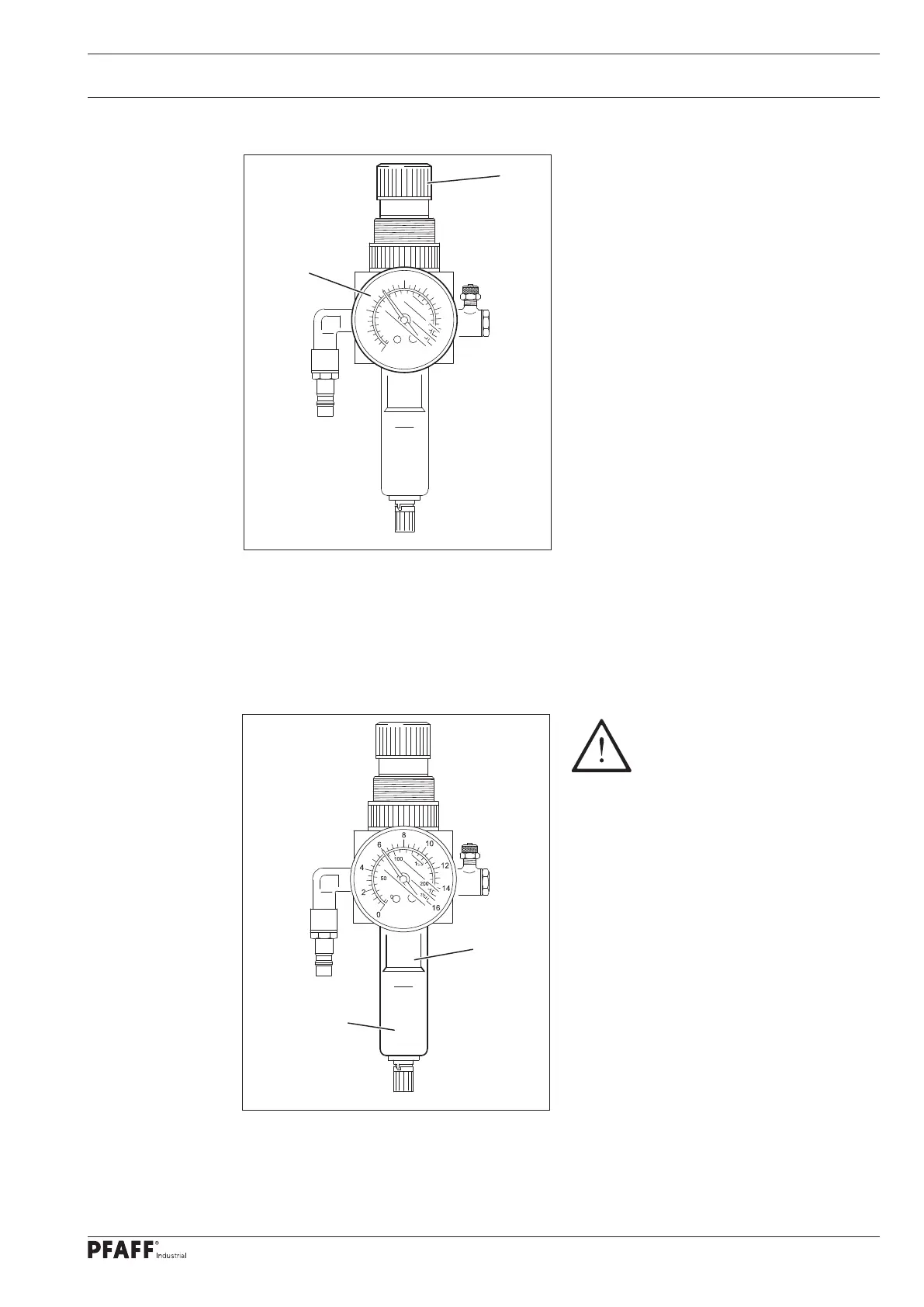

.04 Cleaning the air filter of the air-filter/lubricator
Switch the machine off!
Disconnect the air hose at the
air-filter/lubricator.
To drain water bowl:
O Water bowl 1 drains itself automatically
whe the compressed-air hose is discon-
nected from the air-filter/lubricator.
Cleaning filter:
O Unscrew water bowl 1 and take out
filter 2.
O Clean filter 2 with compressed air or iso-
propyl alcohol (part No. 95-665 735-91).
O Screw in filter 2 and screw on water
bowl 1.
Fig. 12 - 04
1
1
12
.03 Checking/adjusting the air pressure
O Before operating the machine, always
check the air pressure on gauge1.
O Gauge 1 must show a pressure of 6 bar.
O If necessary adjust to this reading.
O To do so, pull knob 2 upwards and turn
it so that the gauge shows a pressure of
6 bar
Fig. 12 - 03
10
12
0
6
4
2
8
16
14
100
50
150
0
200
230
2
