The user can view the details of a measurement for each point saved (see chapter "Details of a meas-
urement").
The user can zoom in on the current display (see chapter "Zoom function").

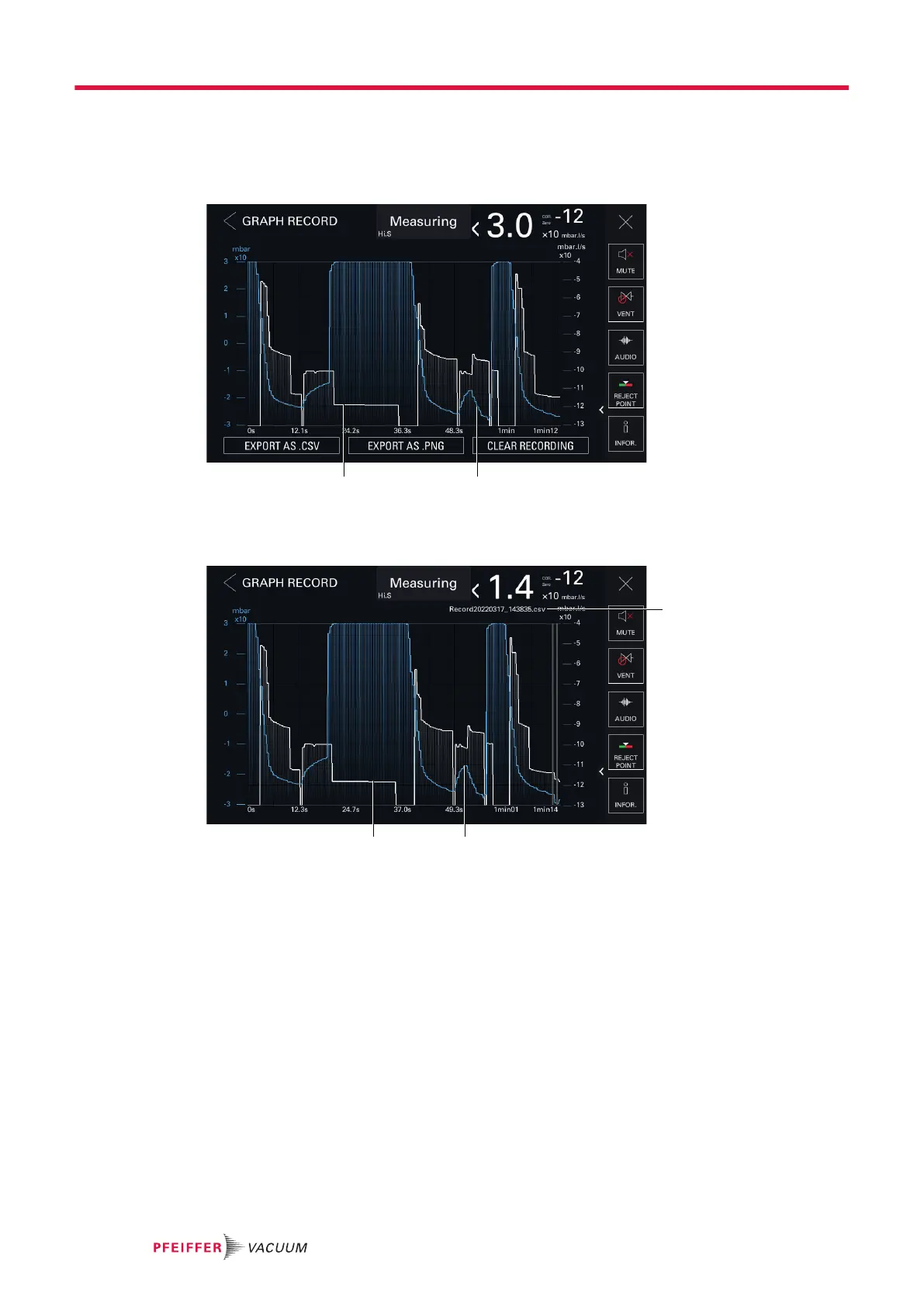

Recording in progress
1 2
1 Leak rate plot (white) 2 Inlet pressure plot (blue)
Recording saved
1
3 2
1 Viewed file name 3 Leak rate plot (white)
2 Inlet pressure plot (blue)
Operation
40/98
